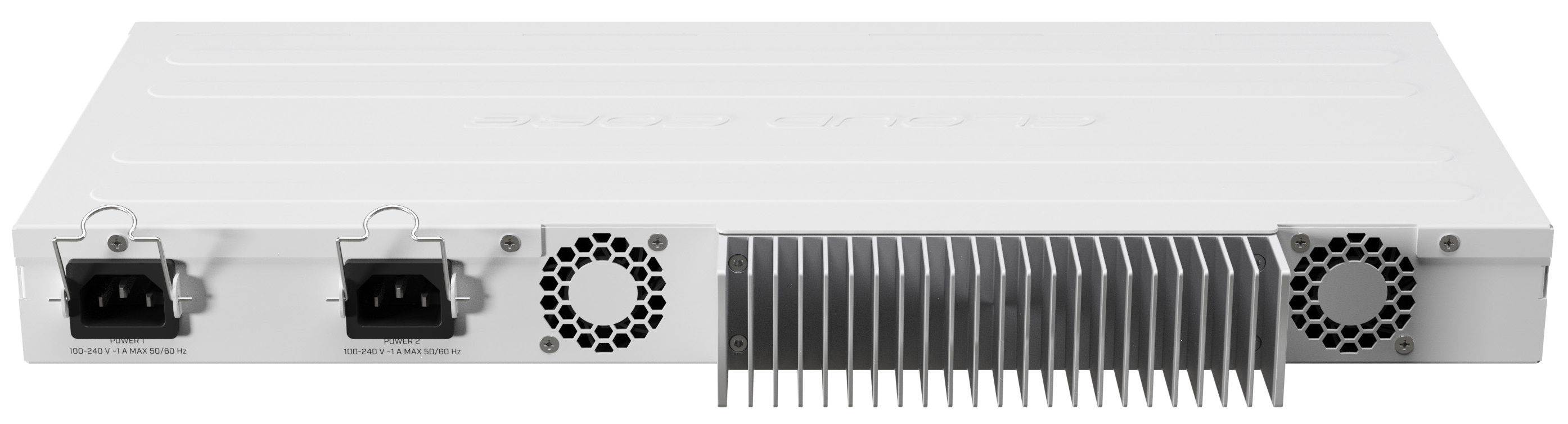

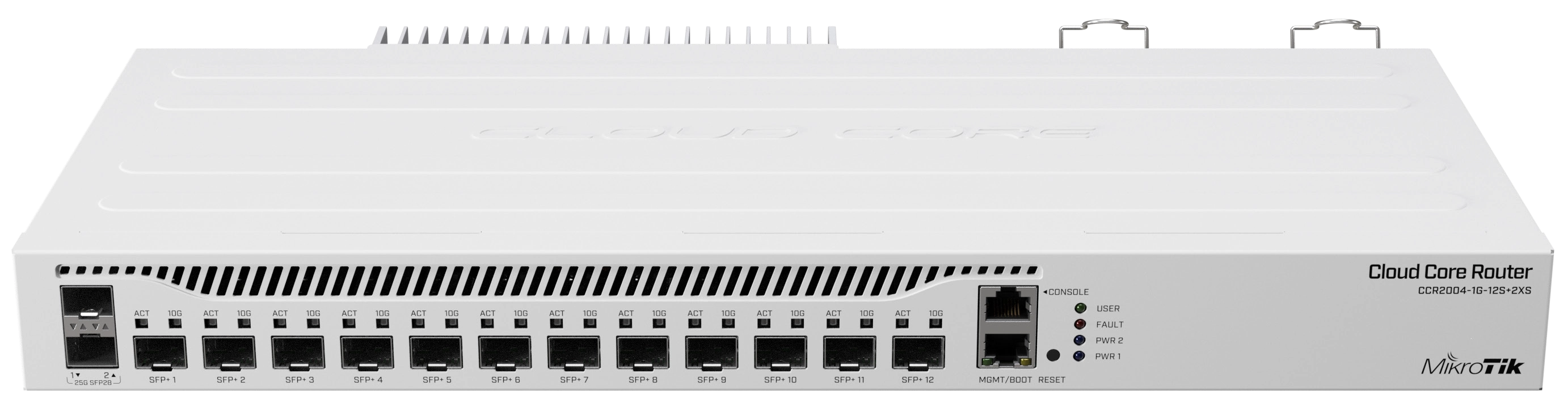

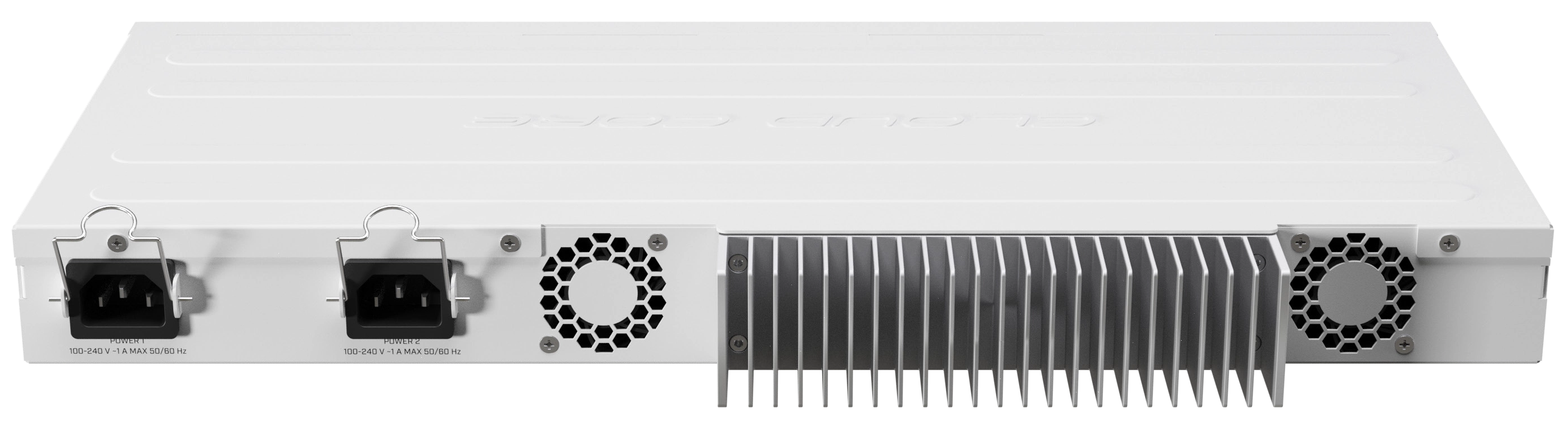

Cloud Core Router 2004-1G-12S+2XS
Cloud Core Router 2004-1G-12S+2XS with Annapurna Alpine AL32400 Cortex A57 CPU (4-cores, 1.7GHz per core), 4GB RAM, 1x Gigabit RJ45 port, 12x 10G SFP+ cages, 2 x 25G SFP28 cages, RouterOS L6, 1U rackmount case, Dual PSU
The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please.
Connectivity? You got it! This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.
This is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 2.3 Gbps) and BGP feed processing.
Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations!
The Connectivity Router - your best companion when it comes to
SFP+ and SFP28 management! 10 and 25 Gbps ports in a single
device to make your life easier.
Specifications
| Product code | CCR2004-1G-12S+2XS | |
|---|---|---|
| CPU | AL32400 1700 MHz | |
| CPU core count | 4 | |
| Size of RAM | RouterOS v7 4GB | |
| RAM type | DDR4 | |
| Storage | 128 MB, NAND | |
| Number of 1G Ethernet ports | 1 | |
| Number of 10G SFP+ ports | 12 | |
| Number of 25G SFP28 ports | 2 | |
| Operating system | RouterOS v7 | |
| Router license level | 6 | |
| Supported input voltage | AC power supply 100 - 240 V | |
| Number of AC inputs | 2 | |
| Dimensions | 443 x 224 x 44 mm | |
| Operating temperature | -20°C to +60°C tested | |
| Max power consumption | 49 W | |
IPsec test results
| CCR2004-1G-12S+2XS | Hardware accelerated IPsec throughput test | ||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | ||||||
| 1400 byte | 512 byte | 64 byte | |||||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 303.6 | 3400.3 | 353.6 | 1448.3 | 354.7 | 181.6 |
| 256 tunnels | AES-128-CBC + SHA1 | 302.0 | 3382.4 | 378.8 | 1551.6 | 376.4 | 192.7 |
| 256 tunnels | AES-128-CBC + SHA256 | 302.0 | 3382.4 | 378.8 | 1551.6 | 376.4 | 192.7 |
| 256 tunnels | AES-256-CBC + SHA1 | 300.3 | 3363.4 | 374.5 | 1534.0 | 374.5 | 191.7 |
| 256 tunnels | AES-256-CBC + SHA256 | 300.3 | 3363.4 | 374.5 | 1534.0 | 374.5 | 191.7 |
Included parts

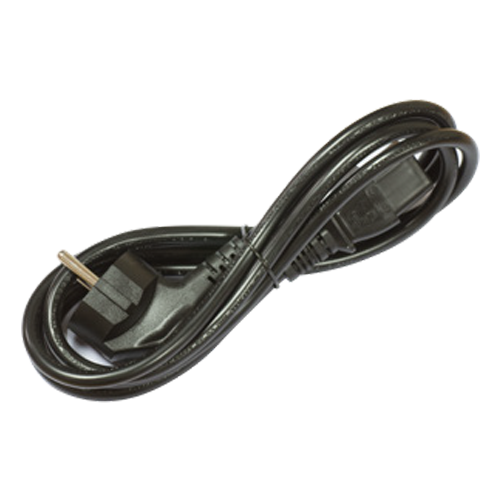

cords

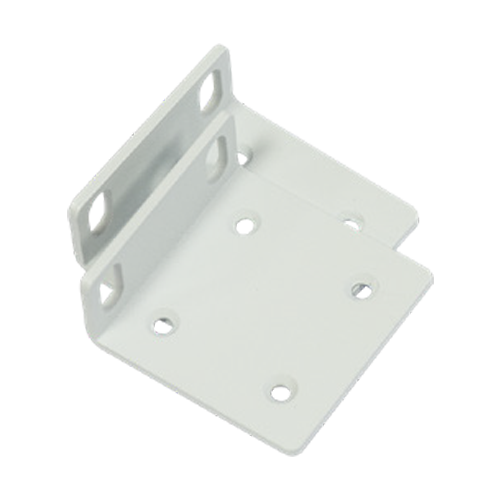

bracket white
