This unique module opens up a whole world of high speed connectivity possibilities, offering up to 10 Gbps speeds over regular familiar twisted-pair cables in your existing products that have SFP+ ports. Any MikroTik device with active cooling that has SFP+ ports can now be used without installing any optical fiber, just plug the S+RJ10 and your network can be upgraded to 10 Gbps, making it ready for the next generation of RJ45 hardware.
S+RJ10 module is supported also on devices with passive cooling, but may require an extra cooling.
The latest revision of S+RJ10 contains "/r2" by the end of serial number. It comes with following improvements:
- Jumbo frames up to 10218 Bytes are now supported for rates 2.5Gbps, 5Gbps and 10Gbps;
- Link speed reporting is fixed - actual link speed in the interface menu is listed. Previously 100M/1G/2.5G/5G link speeds were not reported correctly;
- DDM monitoring (Supply Voltage, Module temperature) is now supported.
Compatible With:

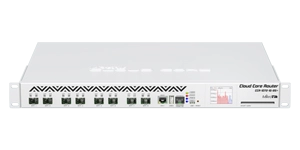

CCR1072-1G-8S+

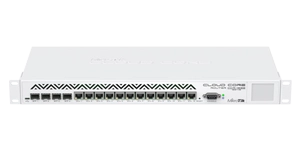

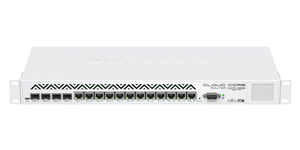

CCR1036 series

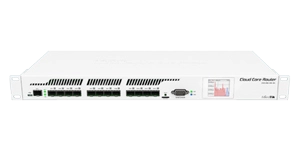

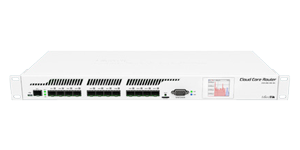

CCR1016-12S-1S+
CCR1009 series

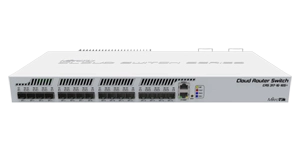

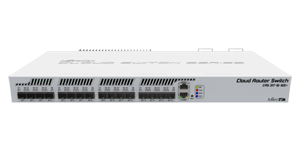

CRS317-1G-16S+RM

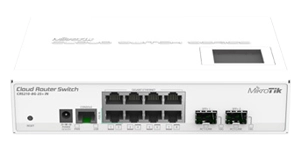

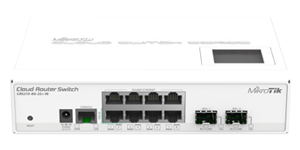

CRS210-8G-2S+IN

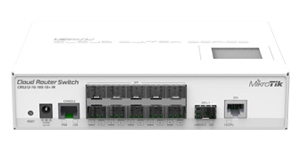

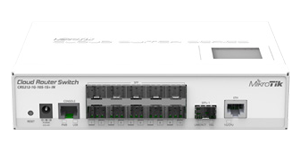

CRS212-1G-10S-1S+IN

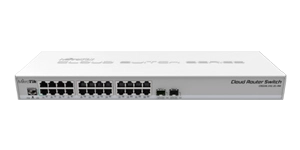

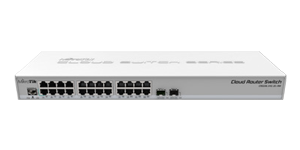

CRS326/CSS326 series
