MikroTik
wAP LR9G kit

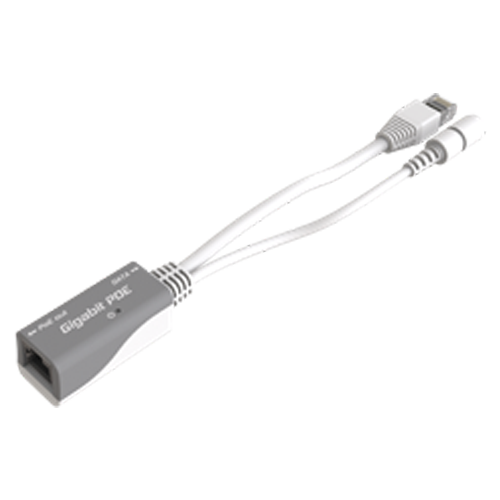

wAP LR9G kit for 915MHz frequency (North America, Asia, Brazil, Oceania etc.) - 650MHz CPU, 64MB RAM, 1xLAN, built-in 2.4Ghz 802.11b/g/n Dual Chain wireless with integrated antenna, R11e-LR9G card, LoRa internal antenna with connector, RouterOS L4, outdoor enclosure, PSU, PoE injector
wAP LR9G kit:
Outdoor-Ready and Versatile
Pair it with any public or private LoRa® network (including The Things Network or The Things Industries) using the preinstalled UDP packet forwarder
Whether you’re deploying smart irrigation in a field or setting up a LoRa® node on a building rooftop – this device is made to withstand the elements and simplify setup
FEATURES
LoRa® 915 MHz support
Built-in GPS (via MT3337V)
Improved Rx sensitivity: up to -141 dBm
2.4 GHz Wi-Fi (802.11b/g/n dual-chain)
Passive PoE support and wide voltage input range
3 power input options: PoE, automotive, or DC jack
SMA female connectors for external antenna options
Specifications
| Product code | RBwAPR-2nD&R11e-LR9G |
|---|---|
| CPU | Single-core QCA9531 600 MHz |
| CPU architecture | MIPSBE |
| Size of RAM | 64 MB |
| RAM type | DDR2 |
| Storage | 16 MB, Flash |
| Number of 100M Ethernet ports | 1 |
| MiniPCIe slots | 1 |
| Wireless | 2.4 GHz |
| Protocols | 802.11b/g/n |
| Wireless interface model | QCA9531 |
| Antenna gain | 2 dBi |
| Antenna beam width | 360° |
| Antenna connector | SMA female |
| GNSS interface model | MT3337V |
| GNSS standard | GPS |
| LoRa band | 915 MHz |
| Max Rx sensitivity | -141 dBm |
| Dimensions | 185 x 85 x 30 mm |
| Operating system | RouterOS v7, License level 4 |
| Operating temperature | -40°C to +60°C |
Powering
| Number of DC inputs | 3 (PoE-In, Automotive, DC jack) |
|---|---|
| PoE-In input Voltage | 9-28 V |
| Automotive input Voltage | 12-30 V |
| DC jack input Voltage | 9-28 V |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 0.8 A |
| PoE-In | Passive PoE |
| Max power consumption | 7 W |
Wireless
| Rate (2.4 GHz) | Tx (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
Included parts

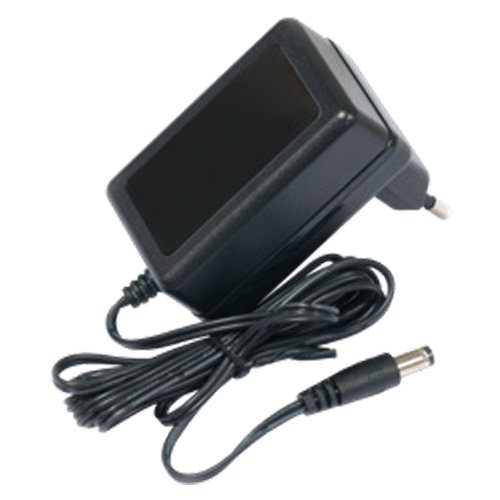

power adapter

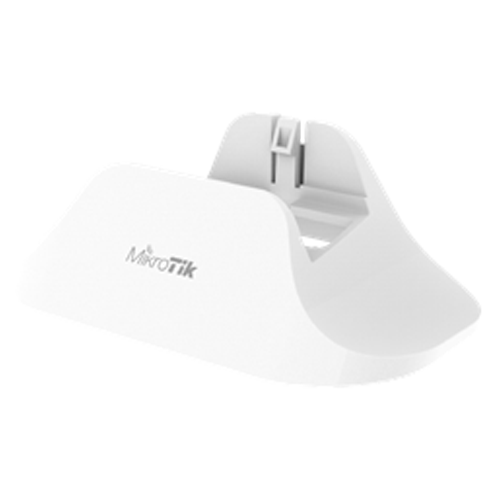

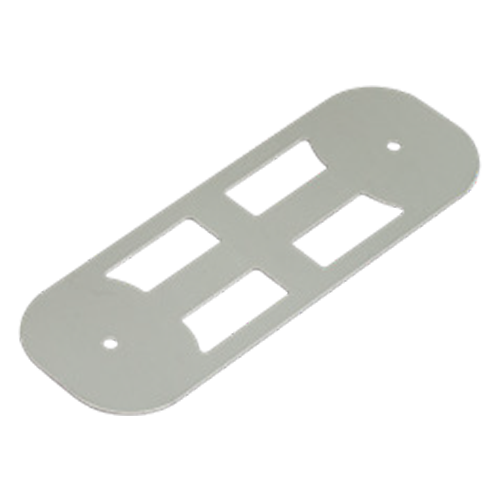

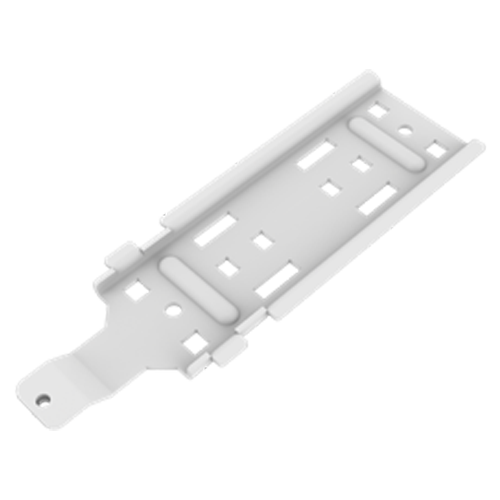

bracket
