MikroTik

hAP ac³

hAP ac³ with 4-core 716 MHz CPU, 256MB RAM, 5 x Gbit LAN (PoE-out on port#5), two wireless interfaces (built-in 2.4Ghz 802.11b/g/n two chain, built-in 5Ghz 802.11ac two chain), 3dBi 2.4GHz external antenna, 5.5dBi 5GHz external antenna, tower/desktop case, USB, PSU, RouterOS L4


Price

SGD 187.13

SKU

MTIK-RBD53iG-5HacD2HnD

Buy this product from


Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point that has all the features you might need for years to come.

Next level signal

Is your old router struggling to reach every corner of your home? Well, forget about that! We have included external high gain wireless antennas with outstanding coverage. Only strong and stable wireless connection in every room from now on! Also, you can use the built-in RP-SMA female connectors to supercharge the coverage even further by adding an external antenna of your choice.



hAP ac3

hAP ac³ - the new standard of home access points.

Function, form, versatility

With 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, hAP ac³ can satisfy even the biggest and most demanding households. With PoE support, it can power or be powered by other devices. There is a 128 MB NAND and a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.

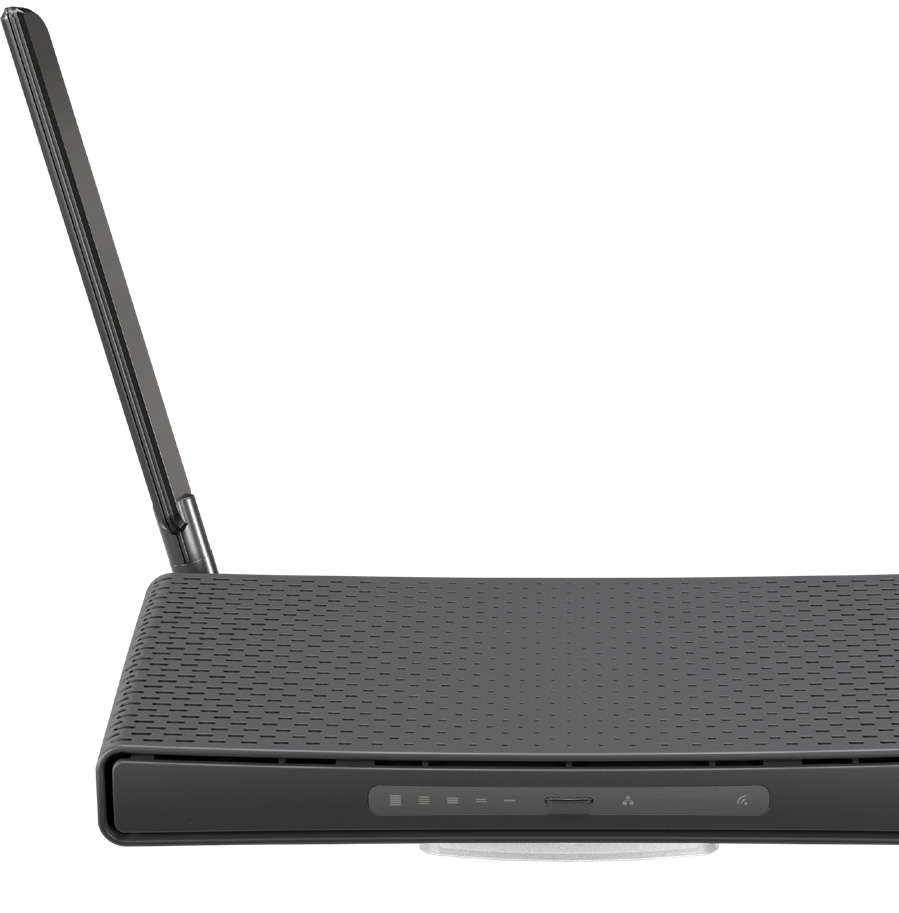

hAP ac3

Reliable connection for all your devices

Stop sharing the frequency with all your neighbors! Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. This is a must-have these days! You can use the 2.4 GHz channel for older devices and the 5 GHz channel for everything else, since this frequency is less cluttered.

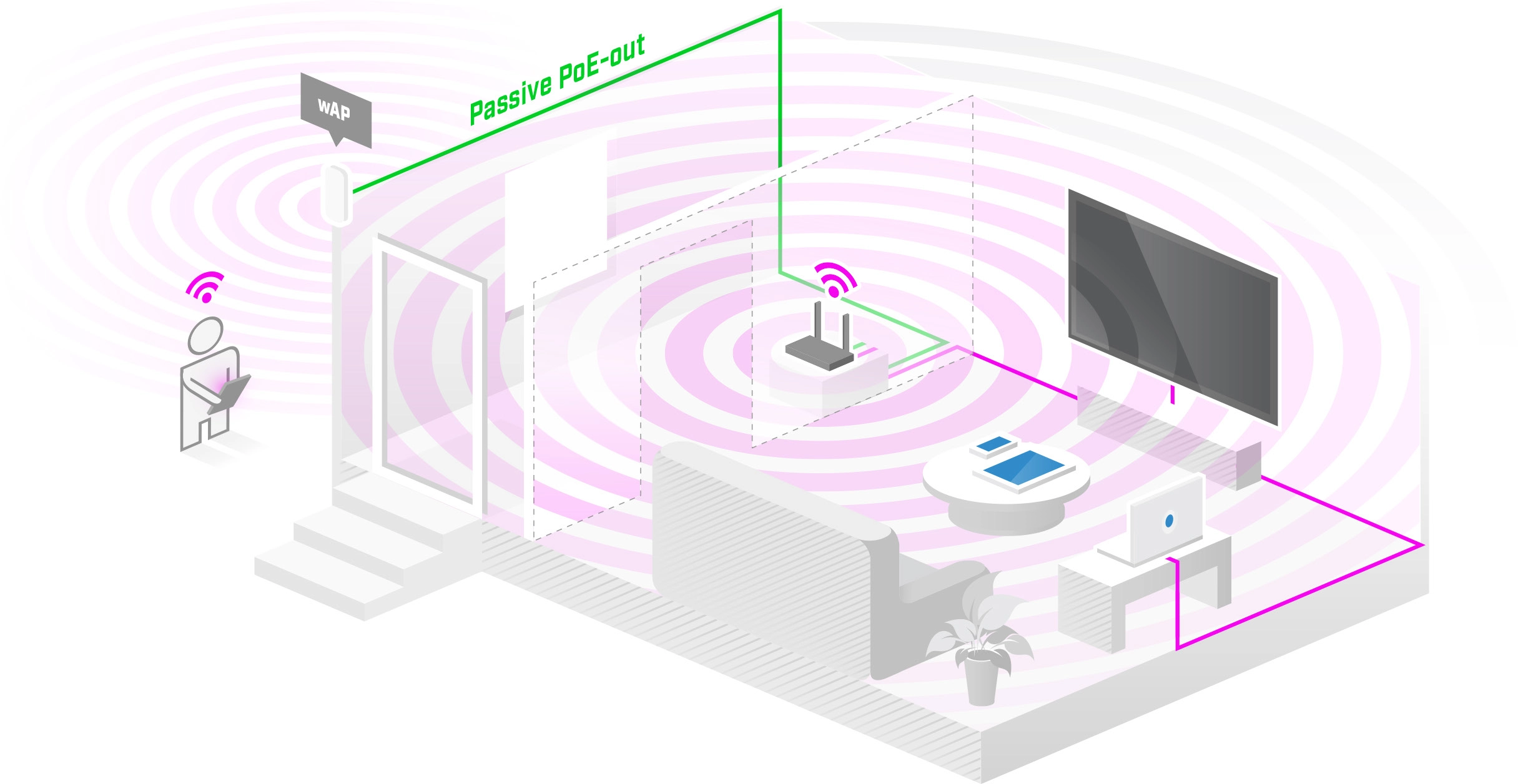

Flow

RouterOS – extreme versatility

Run a secure VPN from the office directly to your home, enable parental control, Quality of Service (traffic prioritization for certain needs, such as streaming), specific firewall rules, IPsec hardware acceleration, VLAN, DHCP, e-mail or SMS notifications, and so on. With RouterOS scripting you can automate a lot:

  • modify queues based on bandwidth usage;
  • complex trigger notifications, such as “Your bandwidth has reached X for Y minutes!”
  • backups and setup of additional devices, and so much more!

If you can imagine it – RouterOS can achieve it. You can even install RouterOS on a PC or a virtual machine for even more networking experiments!

We also include a free handy tool for centralized management of all your wireless MikroTik devices – the CAPsMAN. Unlike traditional controller software, CAPsMAN doesn’t require a separate device to run, it can use any existing RouterOS device in your network.

We have been making our own software since 1996. With each new version our priority remained the same: to provide users with the freedom to explore different setups and always have the right tools for the job. Without unnecessary paywalls.



FEATURES

5x Gigabit Ethernet ports
5x Gigabit Ethernet ports
iOS/Android app for quick and easy configuration
iOS/Android app for quick and easy configuration
USB port
USB port
128 MB NAND
128 MB NAND
PoE-in/PoE-out
PoE-in/PoE-out
Strong dual-chain dual-band 2.4/5 GHz Wireless
Strong dual-chain dual-band 2.4/5 GHz Wireless
Powerful external high gain antennas (3 – 5.5 dBi)
Powerful external high gain antennas (3 – 5.5 dBi)
Quad-core CPU
Quad-core CPU
Extreme versatility with the powerful RouterOS
Extreme versatility with the powerful RouterOS
Specifications
Product code RBD53iG-5HacD2HnD
CPU 4 core IPQ-4019 716 MHz
Number of 1GbE ports 5
Number of 1GbE ports with PoE-out 1
Size of RAM 256 MB
Size of NAND 128 MB
Wireless 2.4 GHz 802.11 b/g/n dual-chain, 5 GHz 802.11 a/n/ac dual-chain
Wireless regulations Specific frequency range and power will be limited by country regulations
Wireless antenna max gain 2.4 GHz (3 dBi), 5 GHz (5.5 dBi)
Antenna beam width 360°
Antenna connector RP-SMA female
Dimensions 251 x 129 x 39 mm
Operating system RouterOS, License level
USB port 1 USB 2.0 port type A
Operating temperature -40°C to +70°C
Powering
PoE-in Passive PoE
PoE-out * Passive PoE
Supported input voltage DC jack (12 - 28 V) PoE-in (18-28 V)
Power adapter nominal voltage 24 V
Power adapter nominal current 1.5 A
Max out per port output (input < 30 V) 0.5 A
Max power consumption without attachments 12 W
Max power consumption 30 W

* If PoE-out used, then input voltage (DC jack, PoE-in) should be > = 24 V

Wireless specifications
RATE (2.4 GHz) Tx (dBm) Rx (dBm)
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
RATE (5 GHz) Tx (dBm) Rx (dBm)
6MBit/s 26 -96
54MBit/s 22 -80
MCS0 26 -96
MCS7 21 -75
MCS9 19 -70
Included parts

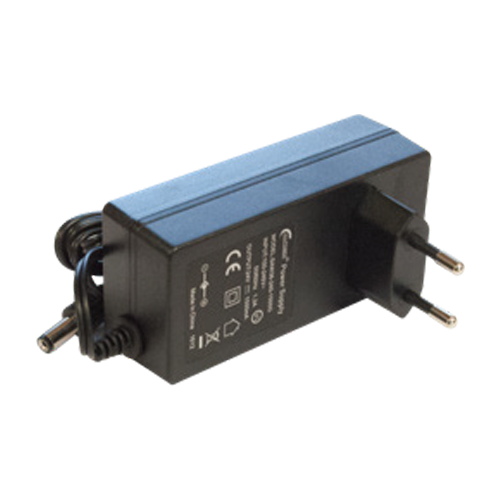

24 V 1.5 A power adapter

24 V 1.5 A
power adapter

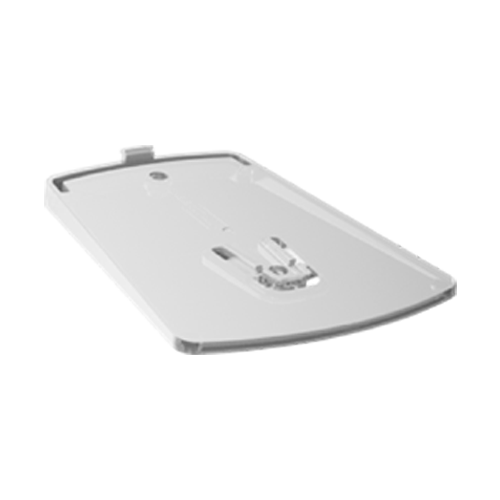

Base leg and pads

Base leg
and pads

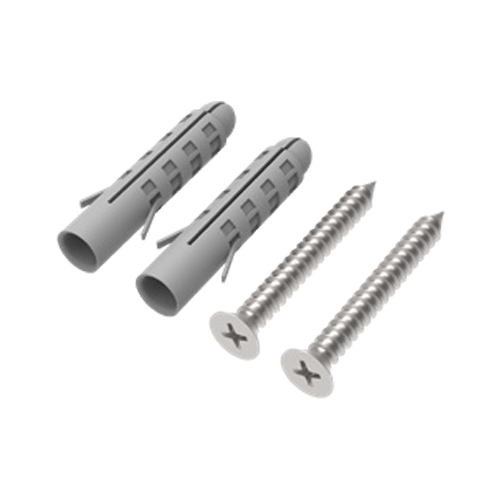

K-47 fastening set

K-47
fastening set
HGO indoor antenna kit

HGO indoor
antenna kit
