cAP lite
cAP lite with AR9533 650MHz CPU, 64MB RAM, 1xLAN, built-in 2.4Ghz 802.11b/g/n Dual Chain wireless with 1.5dBi integrated antenna, RouterOS L4, plastic ceiling case, plastic wall case, PoE, PSU
The cAP lite is a tiny access point device with a clean and simple design which will blend into any environment. Perfect for public locations and hospitality businesses like hotels, airports, shopping malls etc. where you can easily place it out of sight, or customise it’s looks, to make it even less conspicuous.

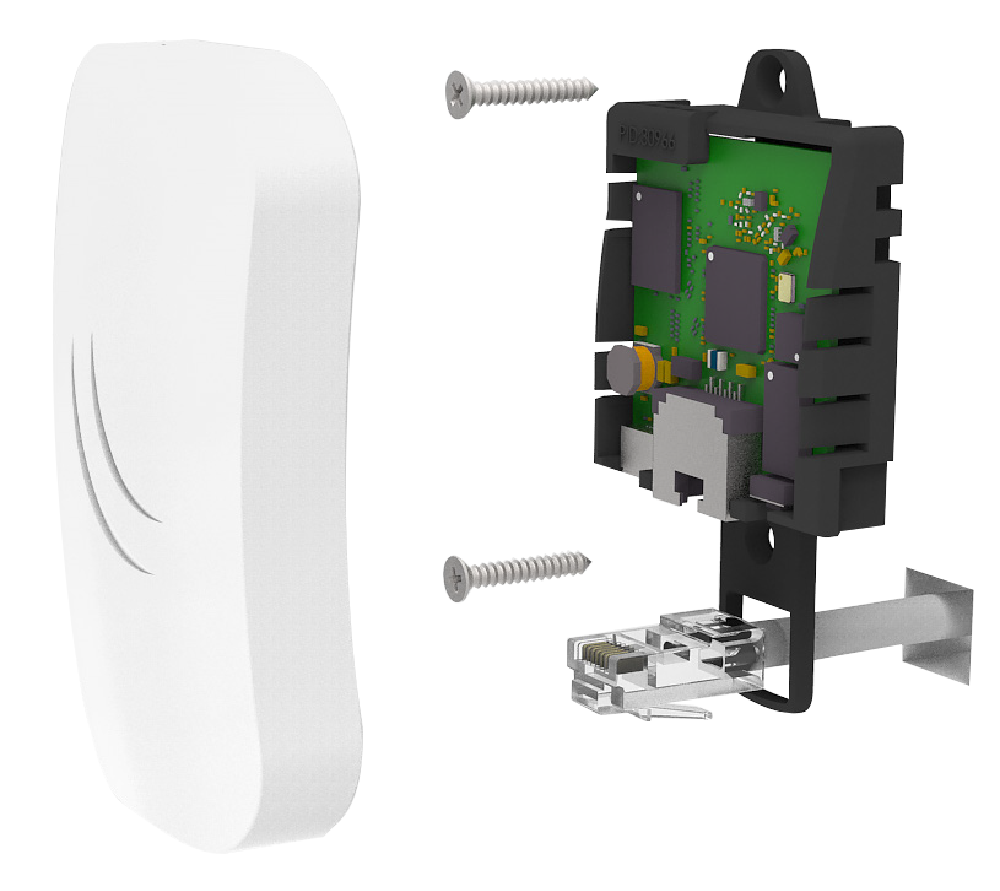

Included with the product are two different casings, which can easily be swapped out, or, if you really like to fit the design with the environment, we are providing 3D printer friendly design files. The customisation possibilities are endless
The cAP lite supports 802.11b/g/n and can be powered by power over ethernet. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location. The cAP lite can also be used as a stand alone access point with the full potential of RouterOS.

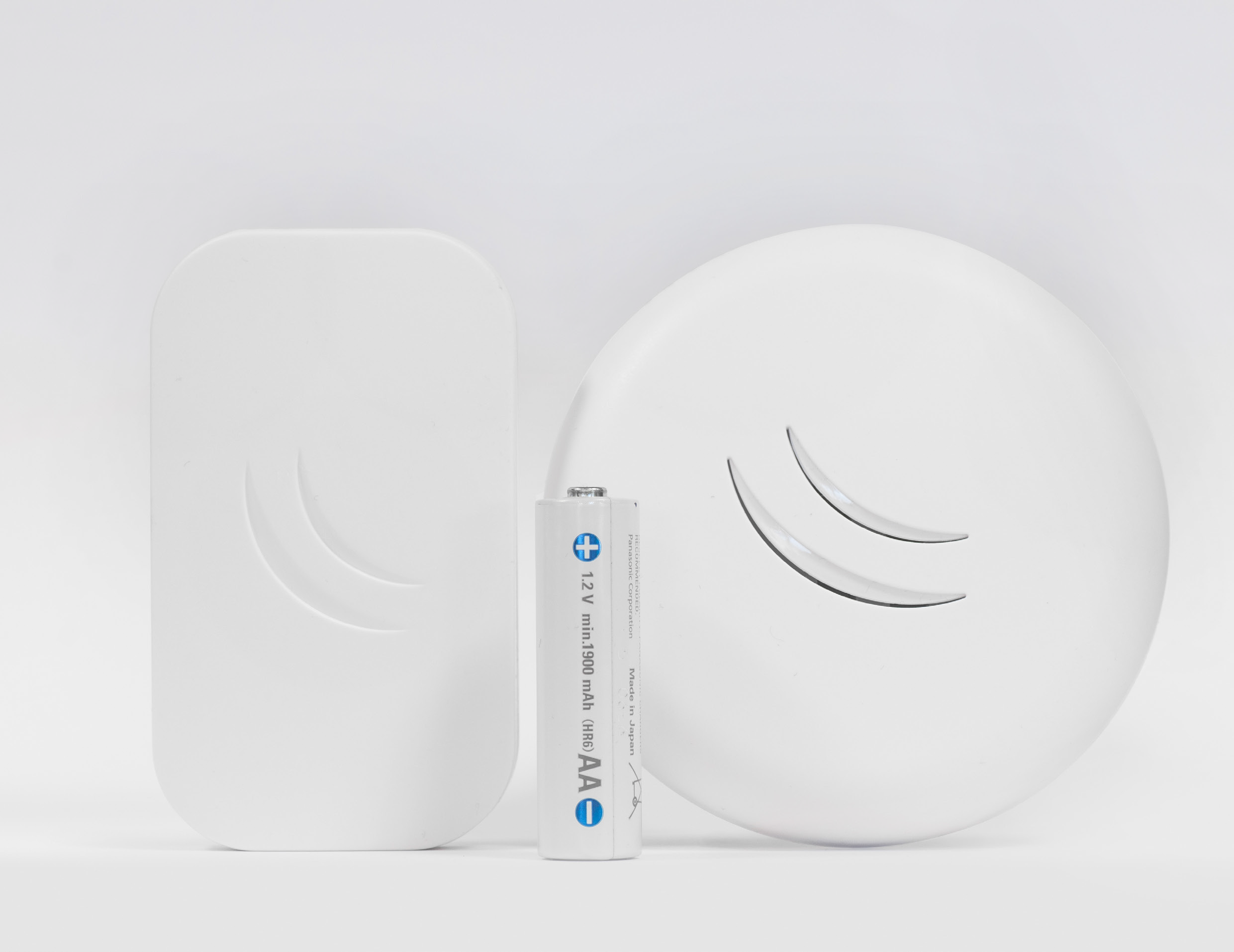

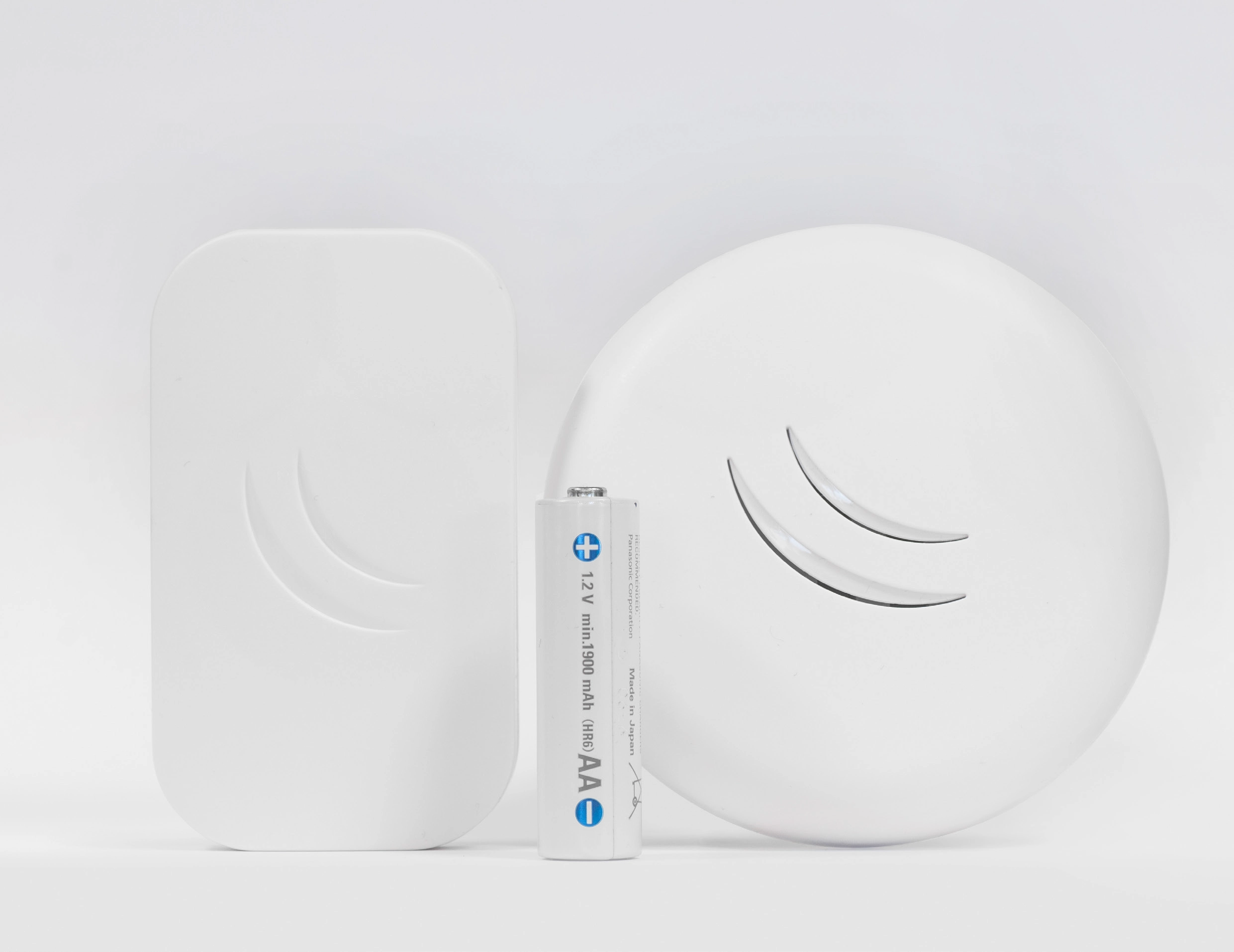

Small and in different shapes

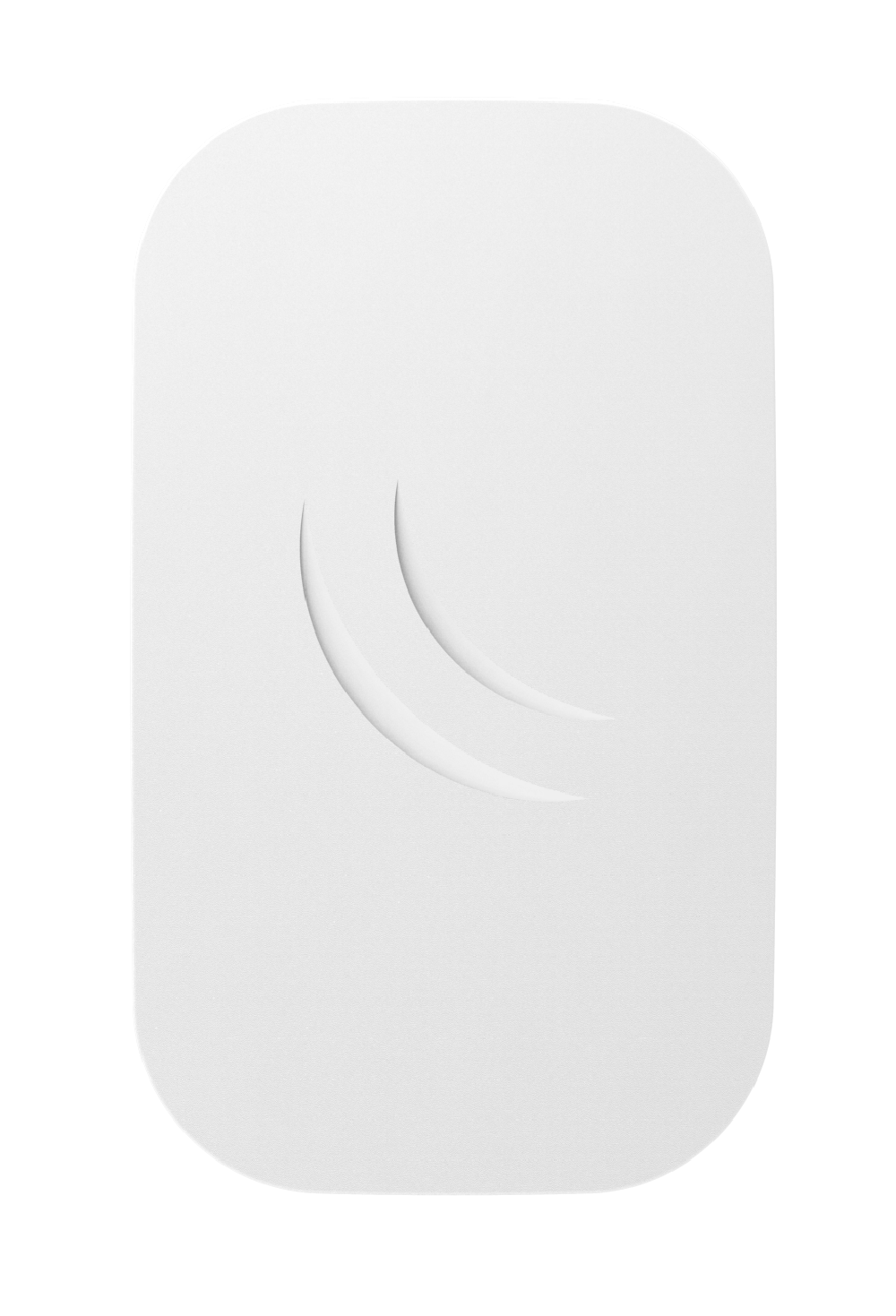

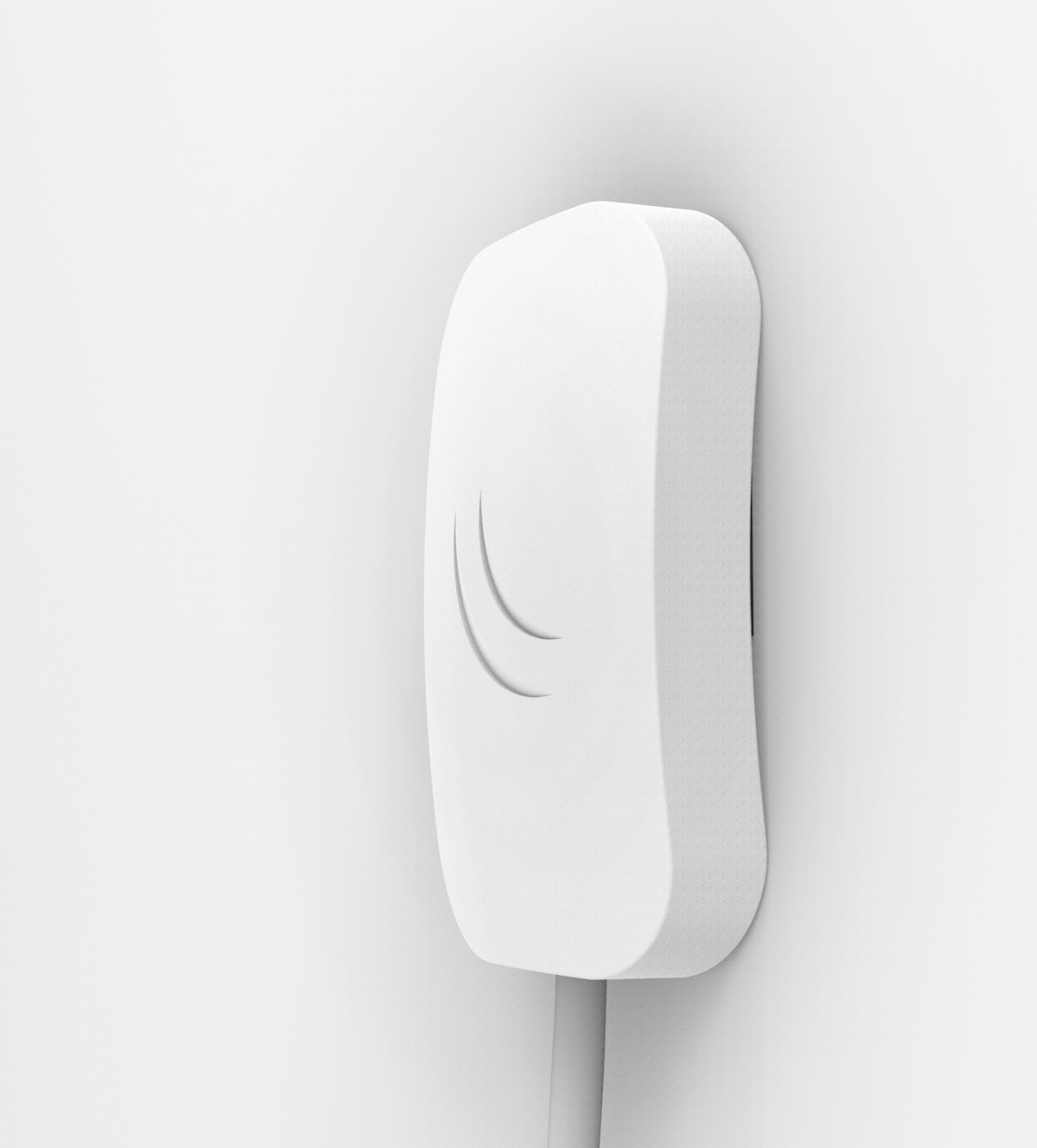

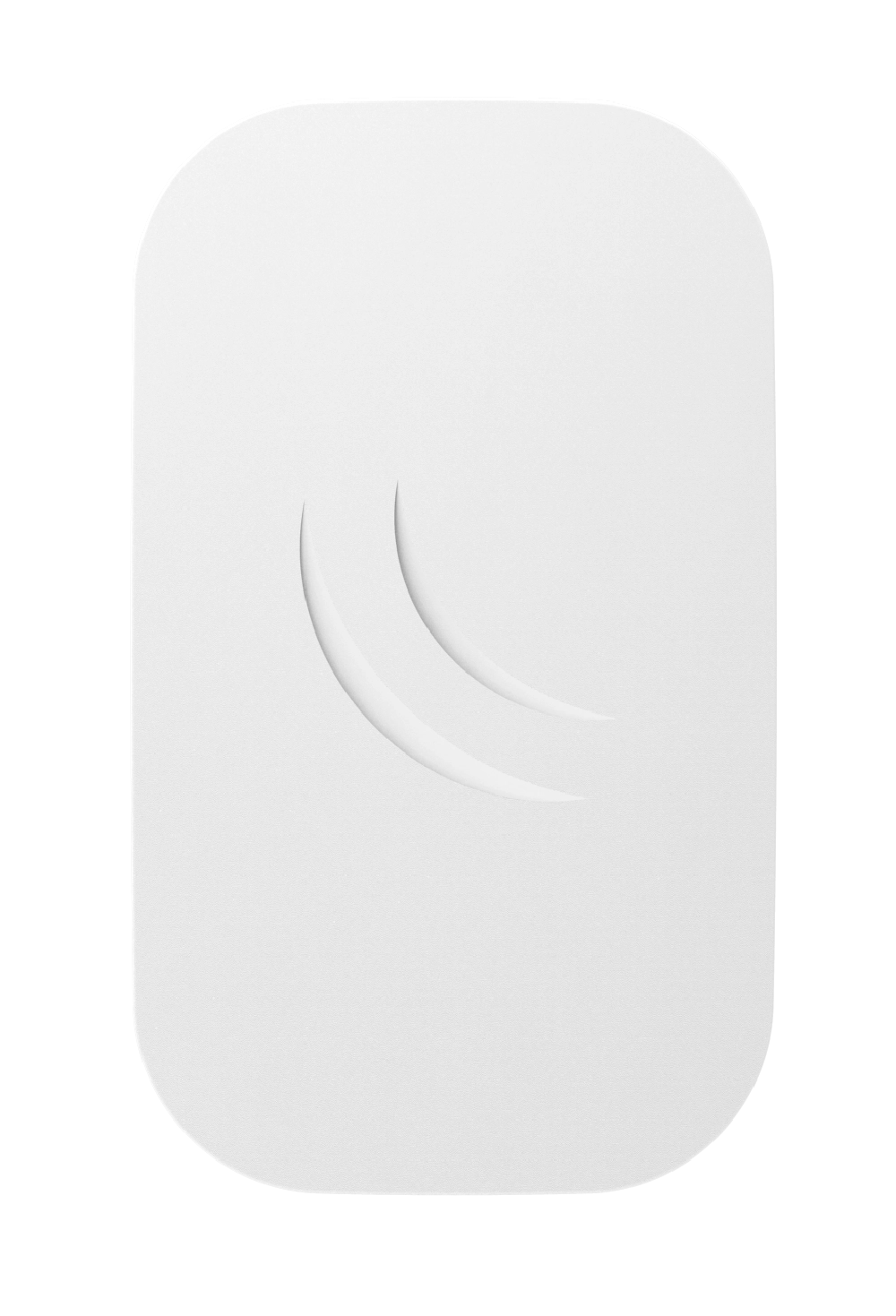

Wall

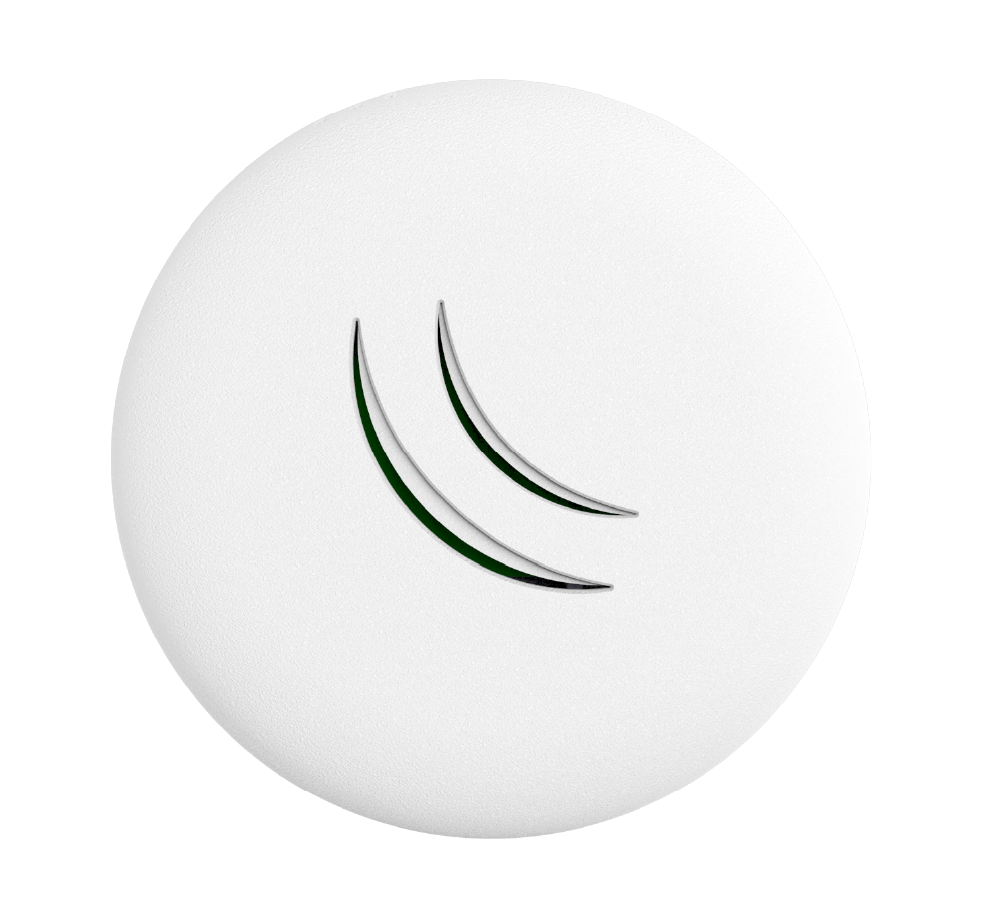

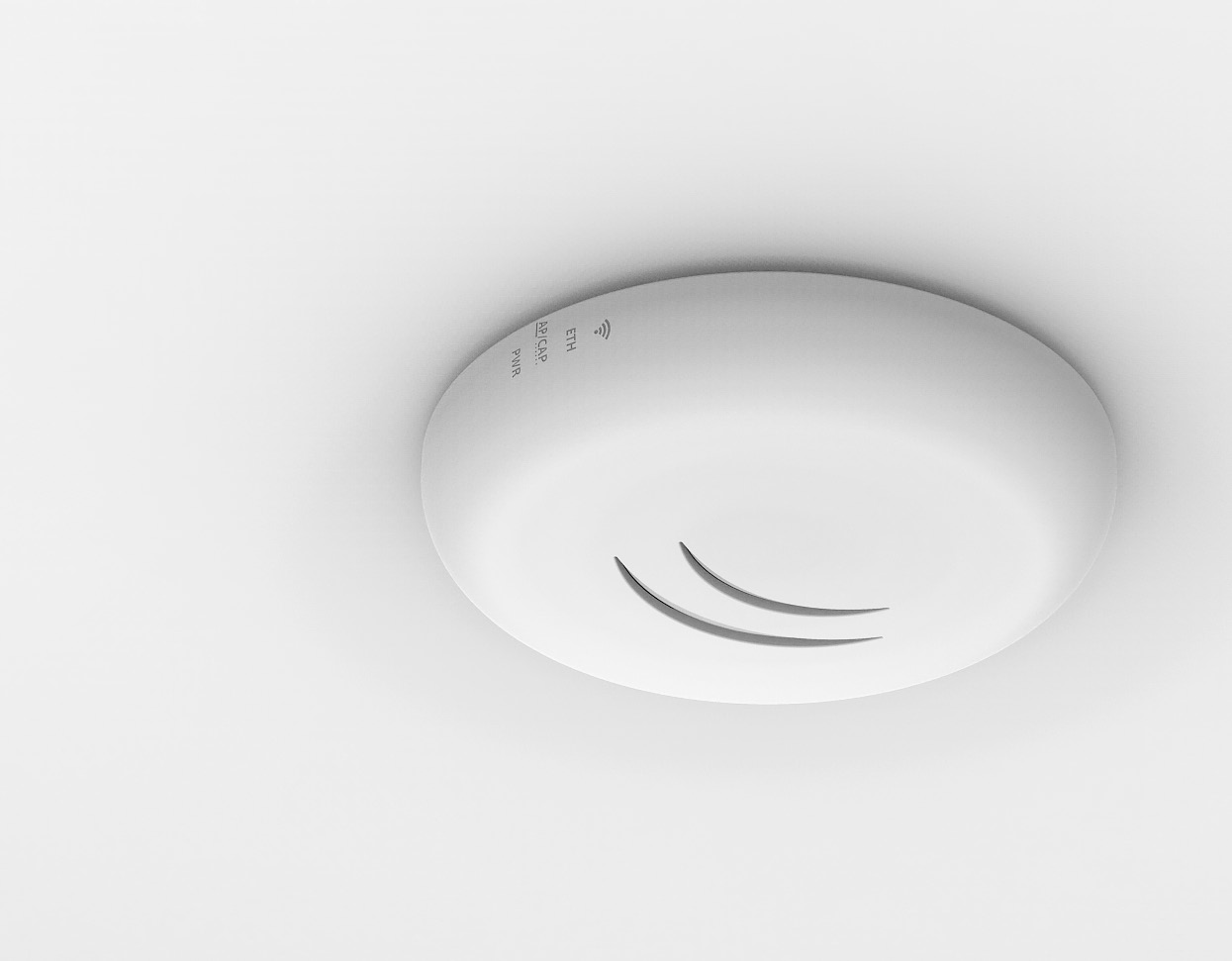

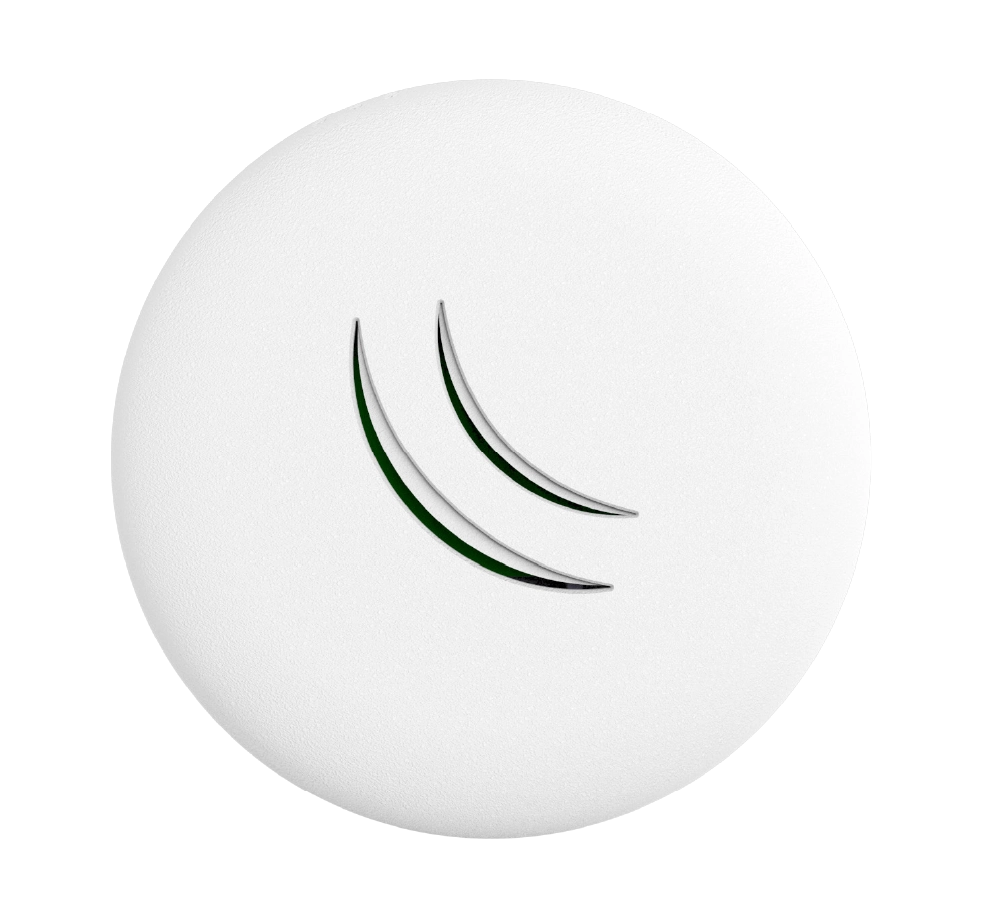

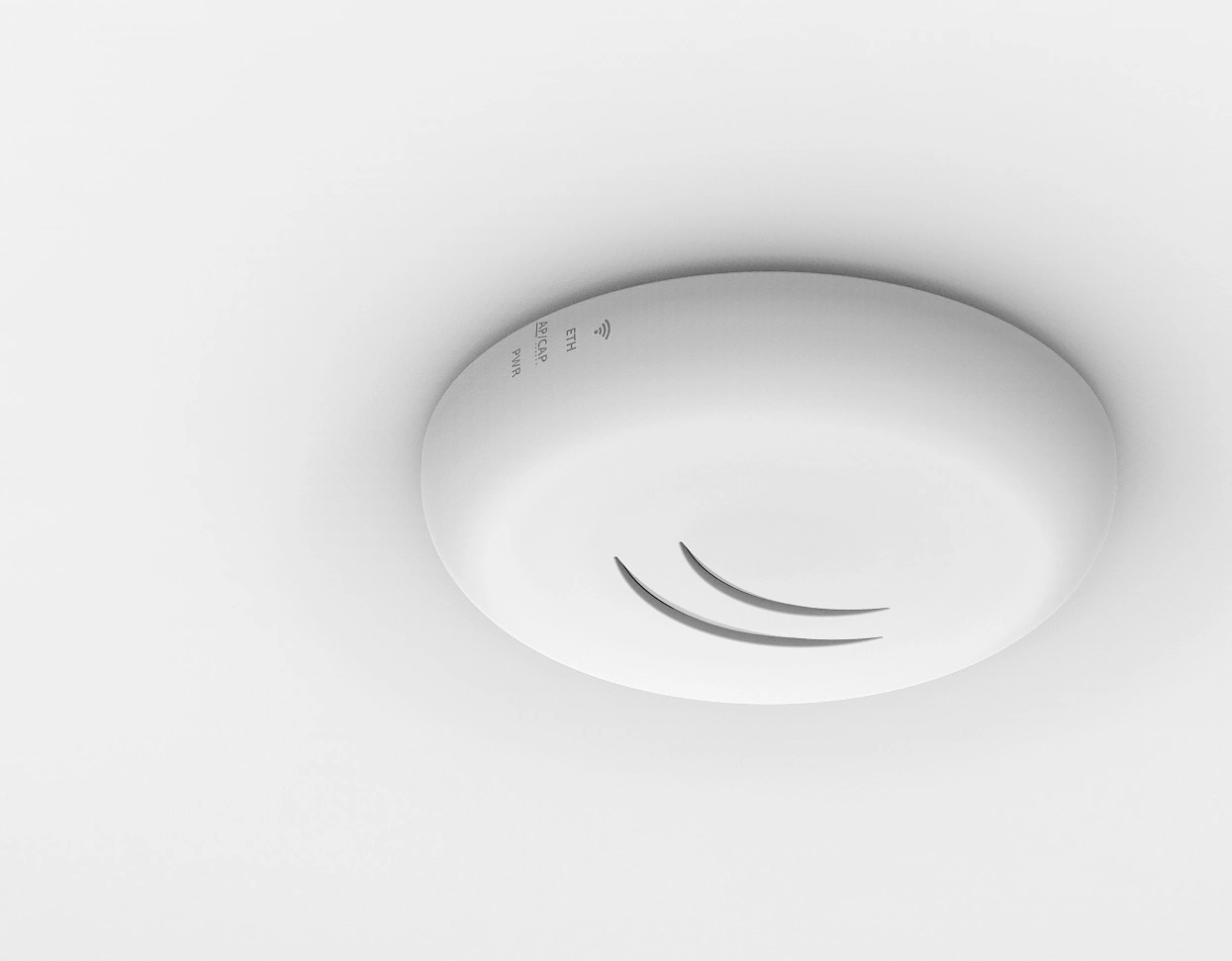

Ceiling
Specifications
| Product Code | cAP lite | |
|---|---|---|
| CPU | QCA9533 | |
| CPU nominal frequency | 650 MHz | |
| CPU core count | 1 | |
| Size of RAM | 64 MB | |
| 10/100 Ethernet ports | 1 | |
| Wireless | Built-in 2.4 GHz 802.11b/g/n, dual-chain | |
| Wireless regulations | Specific frequency range may be limited by country regulations | |
| Antenna gain | 1.5 dBi | |
| Antenna beam width | 360° | |
| Wireless chip model | QCA9533 | |
| PoE in | Yes | |
| Supported input voltage | 5 V (USB); 10 - 60 V (PoE in - 802.3af/at or passive) | |
| Operating temperature | -40°C .. +70°C tested | |
| Dimensions | Wall case: 88 x 52 x 20 mm Ceiling case: diameter 88 mm x 20 mm | |
| License level | 4 | |
| Operating System | RouterOS | |
| Max Power consumption | 4 W | |
Wireless specifications
| Rate (2.4 GHz) | Tx (dBm) | Rx (dBm) |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
Included parts

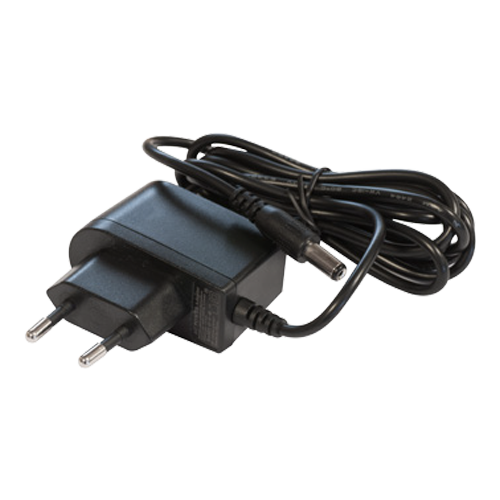

power adapter
