hAP ac
hAP ac with 720MHz CPU, 128MB RAM, 5x Gigabit LAN, built-in 2.4Ghz 802.11b/g/n three chain wireless with integrated antennas, built-in 5Ghz 802.11ac three chain wireless with integrated antenna, SFP cage, USB, desktop case, PSU, RouterOS L4
Category
SKU
MTIK-RB962UiGS-5HacT2HnT
Buy this product from
The hAP ac is our most universal home or office wireless device. It is a dual band device with Gigabit ports that allow the full advantages of 802.11ac technology speed, while maintaining compatibility with legacy devices in 2 GHz 802.11 b/g/n and 5 GHz a/n modes.
The omnidirectional antennas allow to mount the hAP ac in any location, and the high power transmitter will ensure good coverage for the mobile devices in your home, office or public location.
Other helpful features include a USB port for attaching extra storage or a 3G/4G modem, PoE output on the last Ethernet port, to power other RouterBOARD devices without needing an extra power adapter and a SFP cage, for connecting active or passive optical network modules.
FEATURES
Specifications
| Product code | RB962UiGS-5HacT2HnT | |
|---|---|---|
| CPU nominal frequency | 720 MHz | |
| Size of RAM | 128 MB | |
| Storage type | Flash | |
| Flash size | 16 MB | |
| 10/100/1000 Ethernet ports | 5 | |
| SFP | 1 | |
| Wireless | 5 GHz radio | 2.4 GHz radio |
| Wireless regulations | Specific frequency range may be limited by country regulations | |
| Operating frequency | International 5150 - 5875 MHz | International 2412 - 2484 MHz |
| Protocols | 802.11a/n/ac | 802.11b/g/n |
| Chains | Triple-chain | Triple-chain |
| Antenna gain | 2 dBi | 2.5 dBi |
| Wireless chip model | QCA9880 | QCA9558 |
| Antenna beam width | 360° | |
| PoE in | Yes | |
| PoE out | Yes (Ether5) | |
| Supported input voltage | 11 V - 57 V (Jack or Passive PoE) | |
| Max Power consumption | 17 W | |
| Extras | USB 2.0 Type A full size port, 700 mA | |
| Dimensions | 114 x 137 x 29mm | |
| License level | 4 | |
| Operating System | RouterOS | |
Wireless specifications
| RATE (2.4 GHz) | Tx (dBm) | Rx (dBm) |
|---|---|---|
| 1MBit/s | 29 | -100 |
| 11MBit/s | 29 | -94 |
| 6MBit/s | 29 | -96 |
| 54MBit/s | 26 | -81 |
| MCS0 | 29 | -96 |
| MCS7 | 25 | -77 |
| RATE (5 GHz) | Tx (dBm) | Rx (dBm) |
|---|---|---|
| 6MBit/s | 28 | -96 |
| 54MBit/s | 25 | -81 |
| MCS0 | 28 | -96 |
| MCS7 | 24 | -77 |
| MCS9 | 21 | -72 |
Included parts

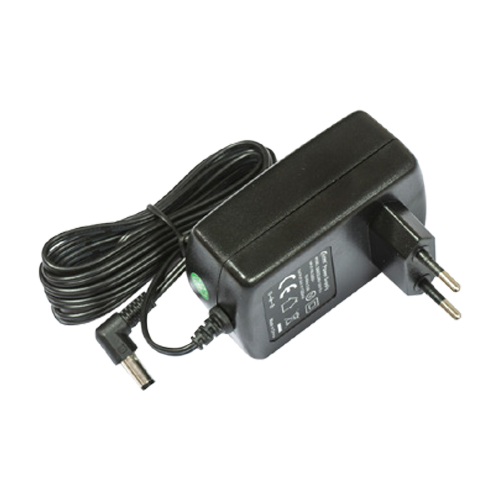

Power adapter
