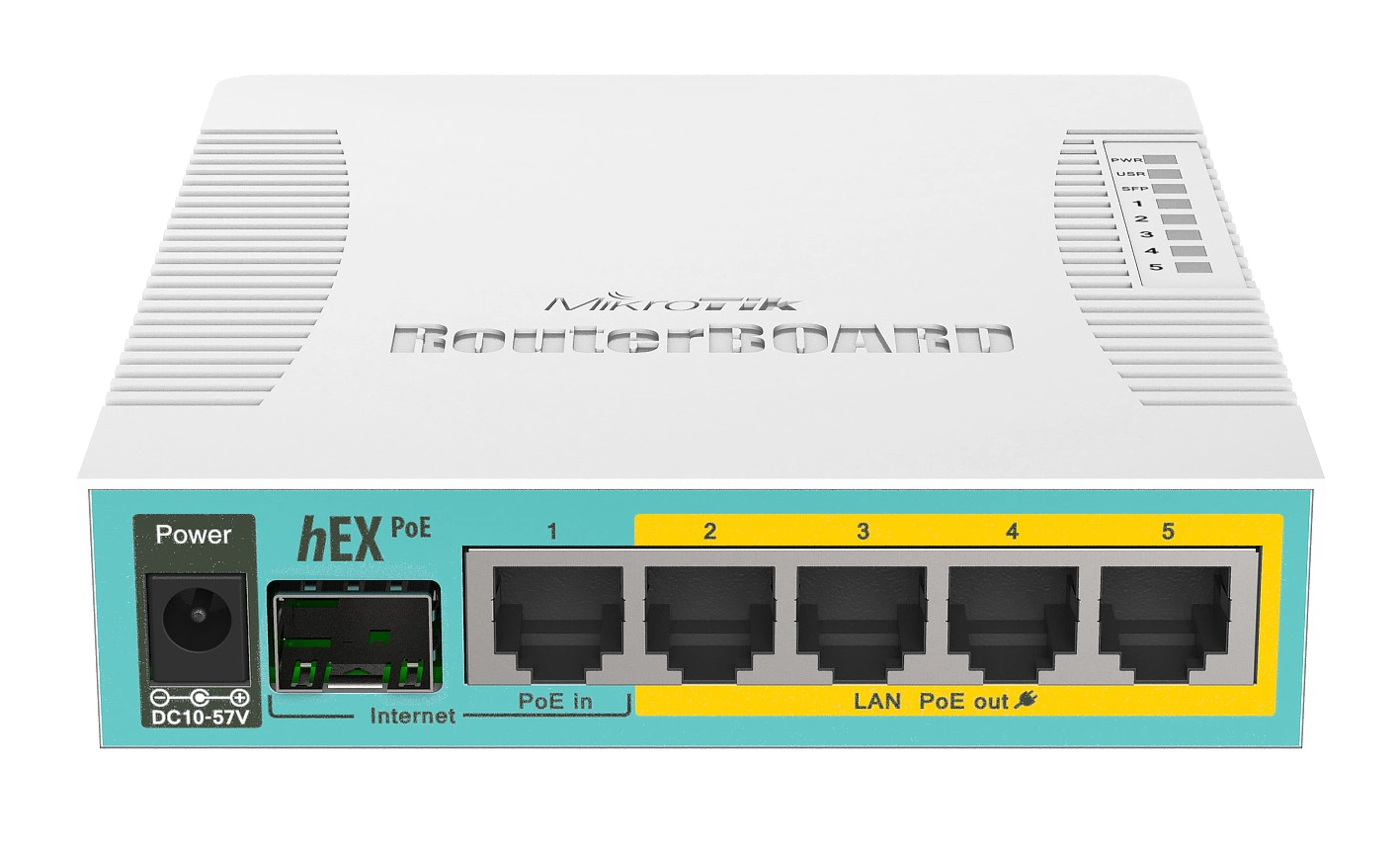

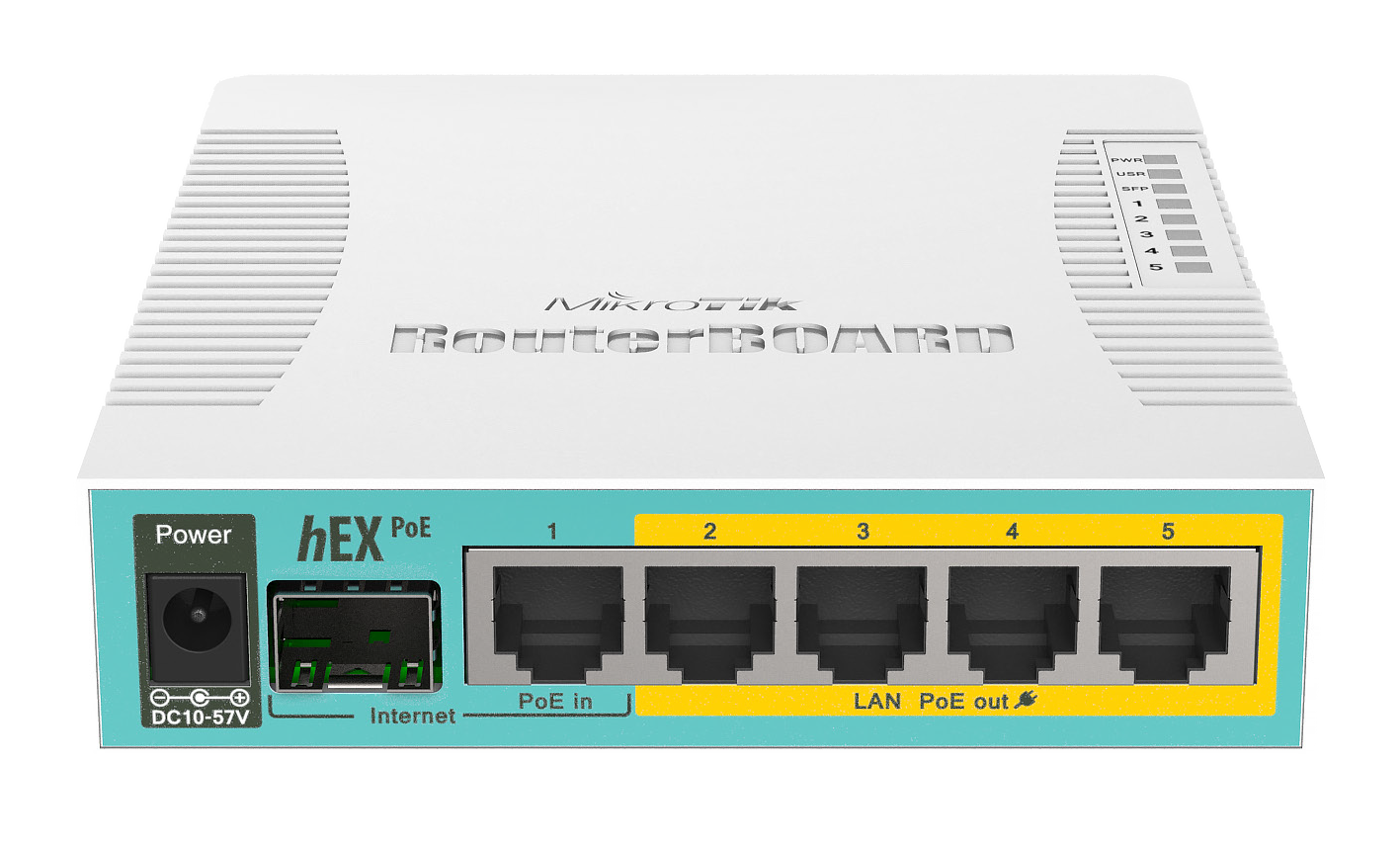

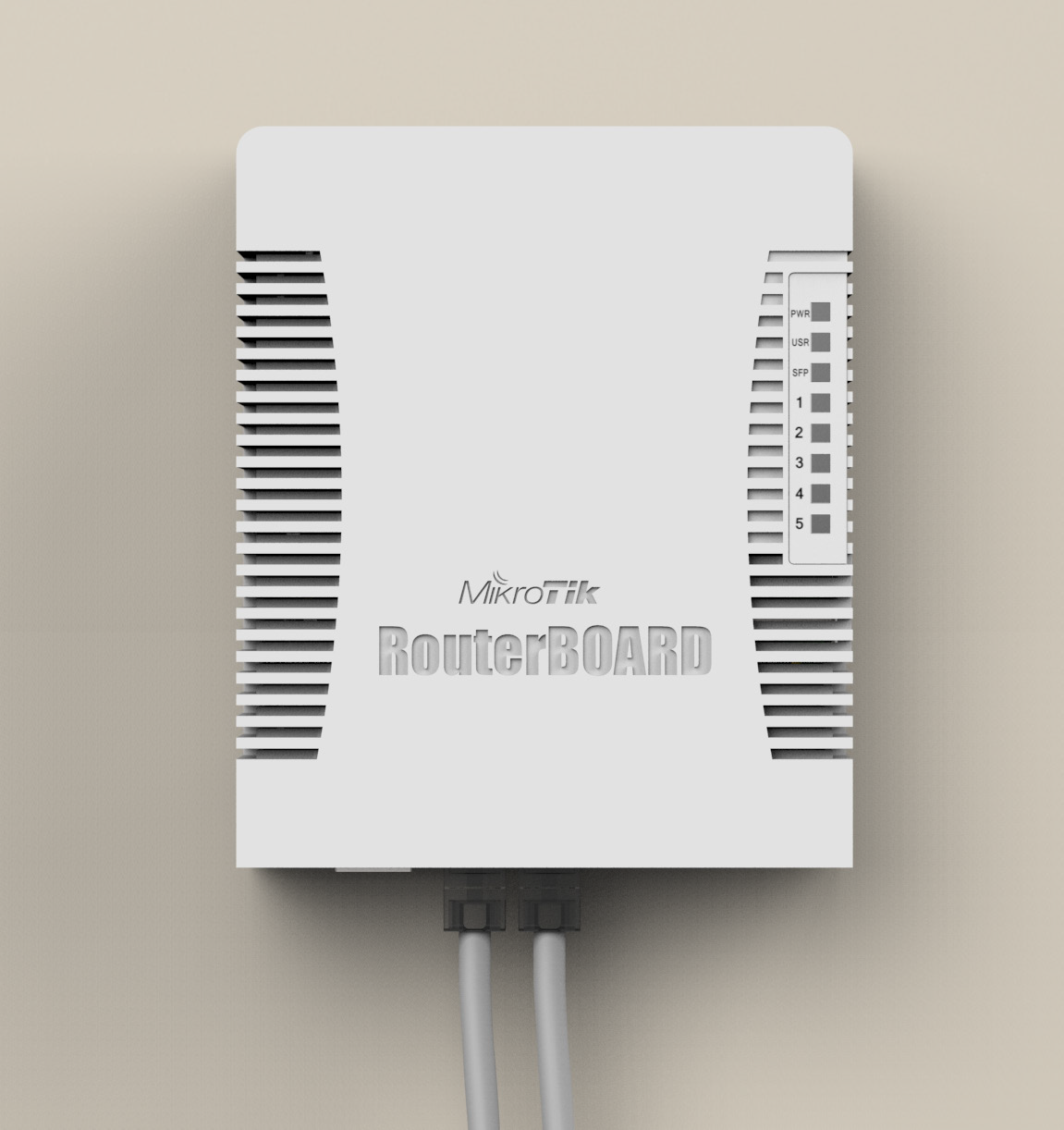

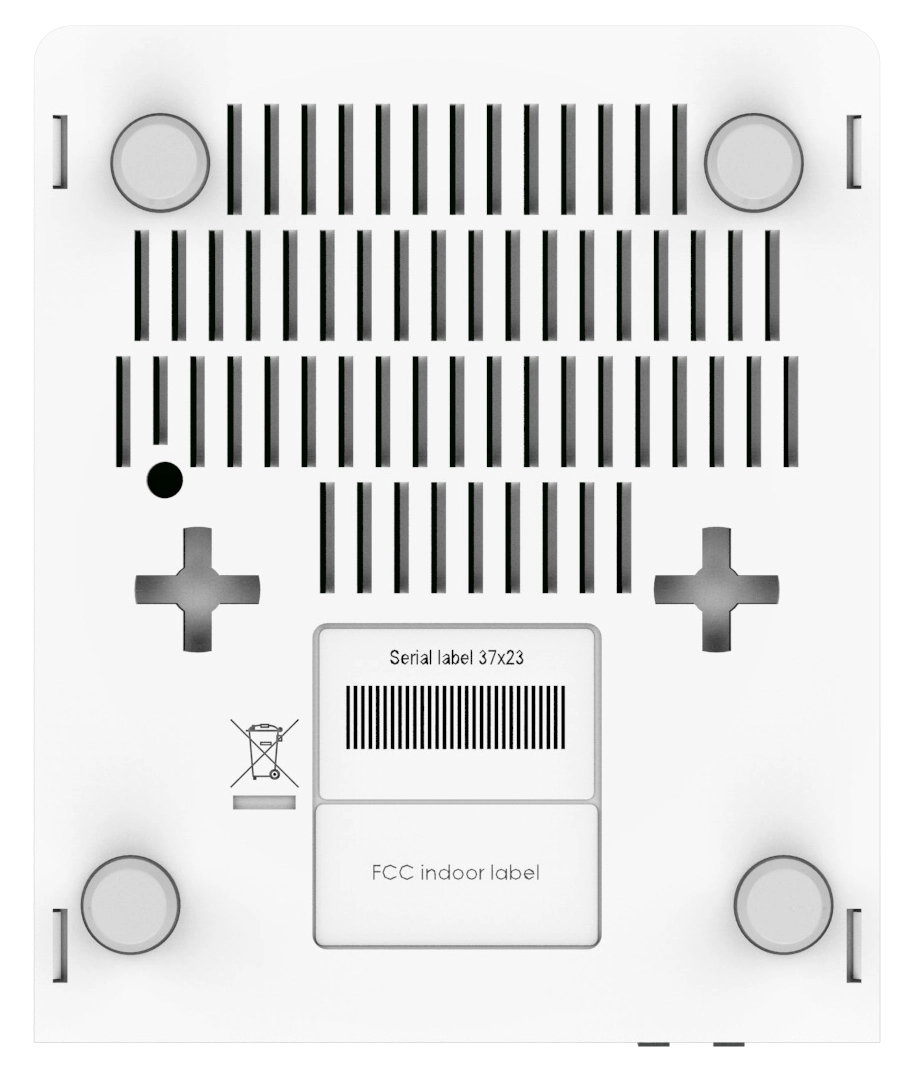

hEX PoE
hEX PoE with 800MHz CPU, 128MB RAM, 5x Gigabit LAN (four with PoE out), SFP, USB, RouterOS L4, plastic case and PSU
hEX PoE is a five port gigabit ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.
It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports
Less power adapters and cables to worry about! Max current is 1A per port if input voltage is 12-30V, 450mA if 31-57V, Ethernet ports are shielded.
RB960PGS can power 802.3af/at devices if 48V DC input is used (unit comes with 24v power supply, so you would have to purchase 48v power supply separately to support this). Unit provides max current 450mA for each port regardless device power class (doesn’t support PoE powered device classification).
Specifications
| Product code | RB960PGS |
|---|---|
| CPU | QCA9557 |
| CPU nominal frequency | 800 MHz |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| 10/100/1000 Ethernet ports | 5 |
| PoE in | Yes, passive |
| Supported input voltage | 12 - 57 V |
| Power output | On ports 2-5, Output: 1A max per port; 2A max total (12-30v), 450mA max per port; 1,8A max total (31-57v) |
| PCB temperature monitor | Yes |
| Voltage monitor | Yes |
| USB slot | Yes |
| Dimensions | 114 x 137 x 29 mm |
| License level | 4 |
| Operating System | RouterOS |
| Max Power consumption | 54 W |
| Max power consumption without attachments | 3 W |
Performance test results
| QCA9557(800Mhz) | Max possible throughput RouterOS v6.38rc9 | ||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | ||||||
| 1518 byte | 512 byte | 64 byte | |||||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 161.9 | 1,966.1 | 401.5 | 1,644.5 | 542.3 | 277.7 |
| Bridging | 25 bridge filter rules | 143.2 | 1,739.0 | 145.5 | 596.0 | 146.2 | 74.9 |
| Routing | none (fast path) | 161.9 | 1,966.1 | 396.3 | 1,623.2 | 521.7 | 267.1 |
| Routing | 25 simple queues | 161.9 | 1,966.1 | 217.2 | 889.7 | 216.0 | 110.6 |
| Routing | 25 ip filter rules | 74.6 | 905.9 | 78.0 | 319.5 | 76.5 | 39.2 |
Included parts

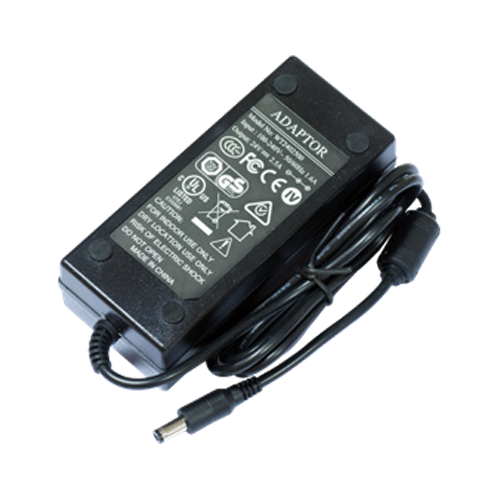

Power adapter
