MikroTik

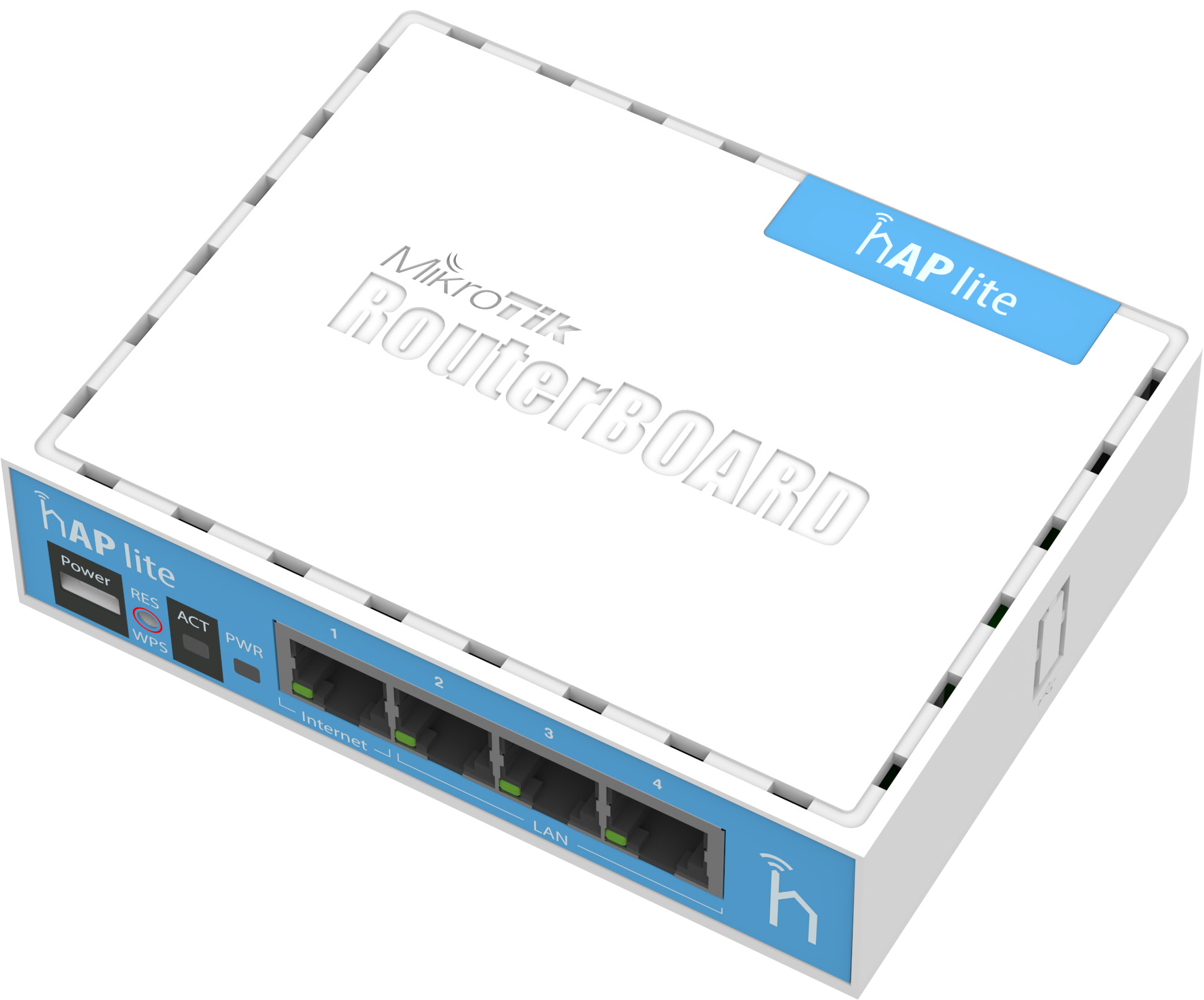

hAP lite
hAP lite with 650MHz CPU, 32MB RAM, 4xLAN, built-in 2.4Ghz 802.11b/g/n 2x2 two chain wireless with integrated antennas, RouterOS L4, desktop case, PSU
Category
SKU
MTIK-RB941-2nD
Buy this product from
The home Access Point lite (hAP lite) is an ideal little device for your apartment, house or office.
It supports button triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.
Of course, the device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others.
FEATURES
Powerful 650MHz CPU
32MB RAM
Dual Chain 2.4GHz (onboard wireless)
Four Fast Ethernet ports
RouterOS L4 license
USB Power Supply (Included)
Specifications
| Product code | RB941-2nD |
|---|---|
| CPU | QCA9533 650MHz CPU |
| Memory | 32MB DDR RAM |
| Ethernet | 4x 10/100 Mbit/s Ethernet with Auto-MDI/X |
| Antenna | 1.5dBi gain |
| Wireless cards | Onboard dual chain 2.4GHz 802.11b/g/n QCA9533 wireless module; 10kV ESD protection on each RF port, WPS support via button |
| Extras | Reset switch |
| LEDs | Power LED, 4x Ethernet LED, user LED |

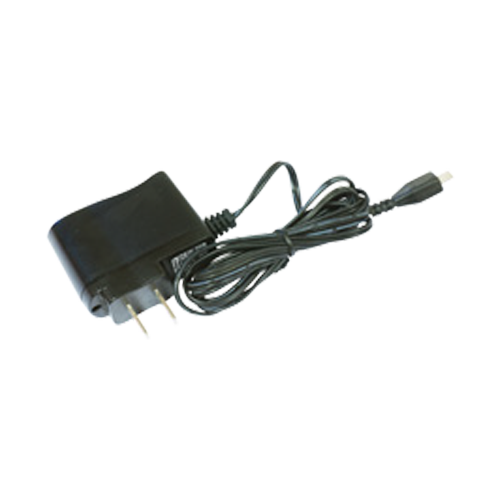

| Power input | Packaged with 5V DC 0.7A power adapter |
| Dimensions | 113x89x28mm |
| Max consumption | 3W at 5V |
| Operating Temp | -20C .. +70C tested |
| OS | MikroTik RouterOS, Level 4 license (AP support) |
Wireless specifications
| RATE | Tx (dBm) | Rx (dBm) |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
Included parts
