MikroTik
hEX
hEX with Dual Core 880MHz MHz CPU, 256MB RAM, 5 Gigabit LAN ports, USB, RouterOS L4, plastic case, PSU
hEX is a five port gigabit ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port. This new updated revision of the hEX brings several improvements in performance.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880MHz CPU and 256MB RAM, capable of all the advanced configurations that RouterOS supports. IPsec Hardware encryption and dude server package is supported, microSD slot on it also provides improved r/w speed for database storage on microSD card.
Performance comparison
| Previous r2 | 64 byte | 1518 byte | 1400 byte |
|---|---|---|---|
| Bridging | 396 Mbps | 986 Mbps | 986 Mbps |
| Routing | 373 Mbps | 986 Mbps | 986 Mbps |
| AES-128 | 9 Mbps | 52 Mbps | 50 Mbps |
| New r3 | 64 byte | 1518 byte | 1400 byte |
|---|---|---|---|
| Bridging | 523 Mbps | 1972 Mbps | 1972 Mbps |
| Routing | 530 Mbps | 1972 Mbps | 1972 Mbps |
FEATURES
hEX (revision 3)
880 MHz CPU, 2 cores and 4 threads
256 MB RAM
microSD slot for “Dude Server” support
Full size USB
IPsec hardware acceleration
Same form factor
Same price
Specifications
| Product code | RB750Gr3 |
|---|---|
| CPU nominal frequency | 880 MHz |
| CPU core count | 2 |
| Size of RAM | 256 MB |
| 10/100/1000 Ethernet ports | 5 |
| PoE in | Yes |
| Supported input voltage | 8 - 30 V |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| USB | Yes, type A 2.0 |
| Hardware encryption | Yes |
| Dude server package support | Yes |
| Dimensions | 113x89x28mm |
| License level | 4 |
| Operating System | RouterOS |
| CPU | MT7621A |
| Max Power consumption | 5 W |
Included parts

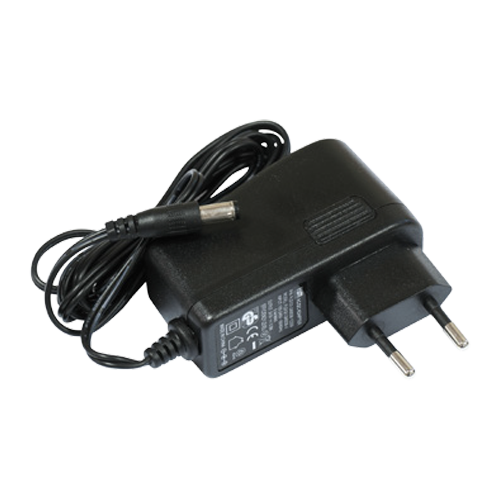

Power adapter
