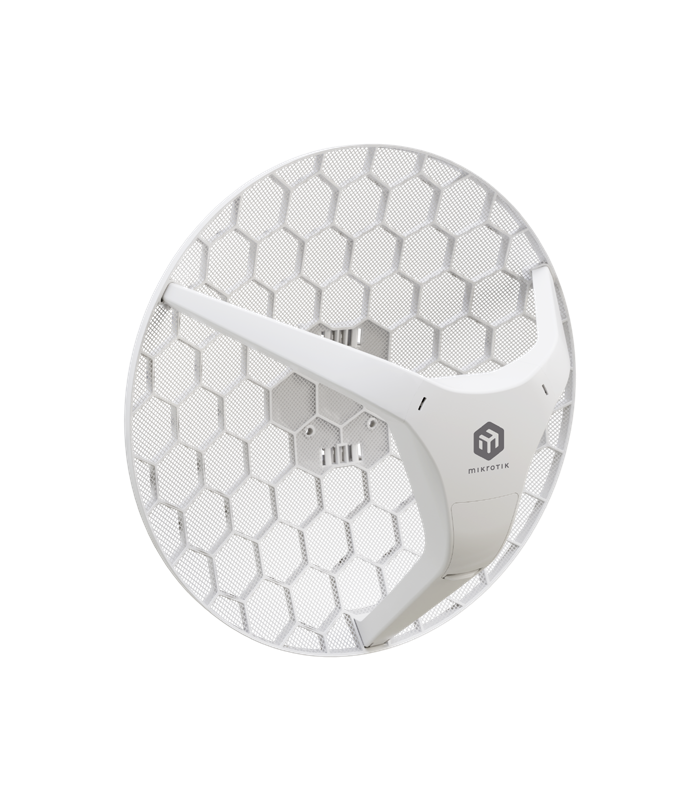

LHG 5 ax
LHG 5 ax with 24.5dBi 5GHz antenna, 5GHz 802.11a/n/ac/ax wireless, 800MHz CPU, 256MB RAM, 1 x Gigabit Eth, POE, PSU, pole mount, RouterOS L3
Need a fast, stable connection across large distances? Whether you’re bridging two buildings, connecting a remote site, or sharing your internet with nearby infrastructure — the new LHG Wi-Fi 6 series is built for the challenge. And here’s the best part: we’ve kept the same pricing as the previous generation. High performance, long range, and Wi-Fi 6 — all without breaking the budget.
Two Models. One Mission: reliable Wi-Fi 6 long-distance links.

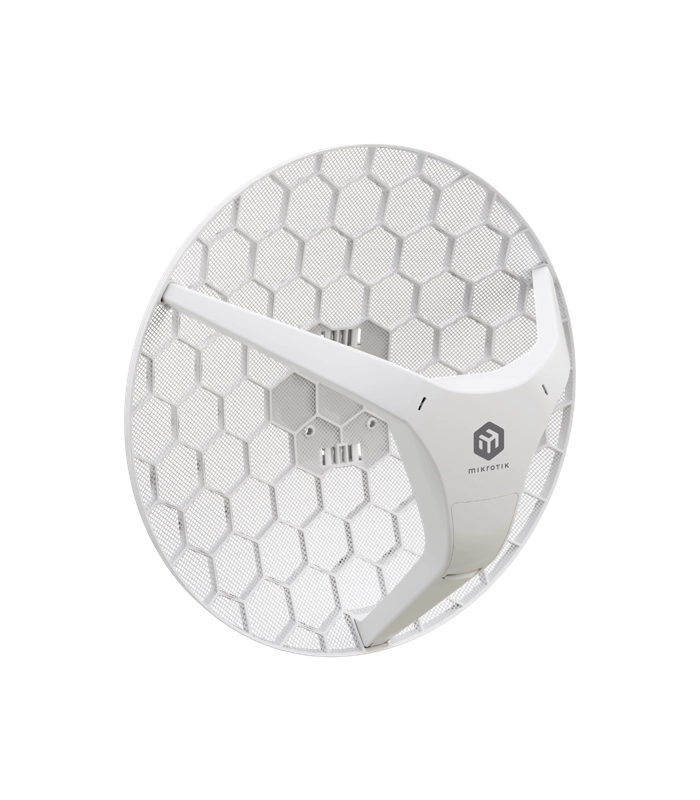

LHG 5 ax
A compact, long-range CPE with a 24.5 dBi antenna. Perfect for links up to 20 km in most scenarios.

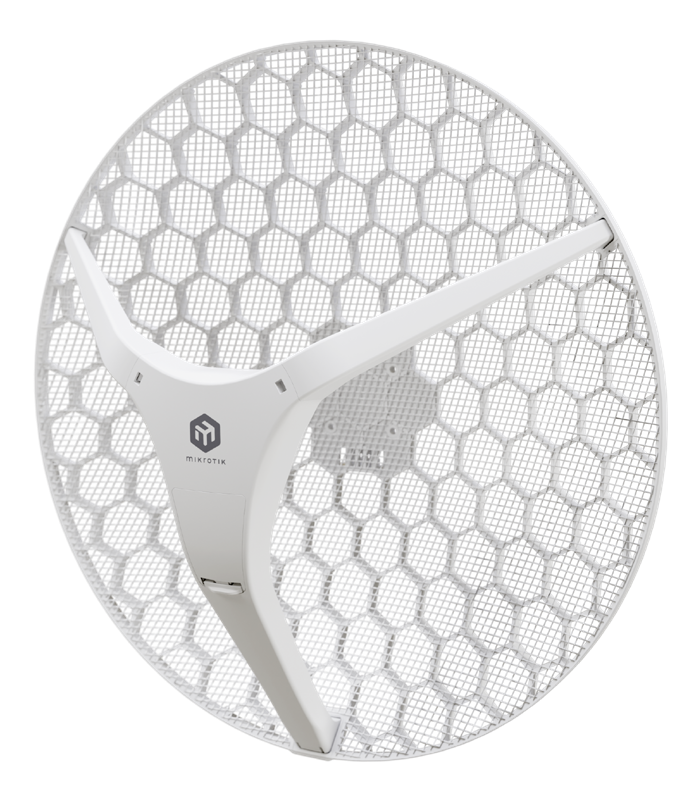

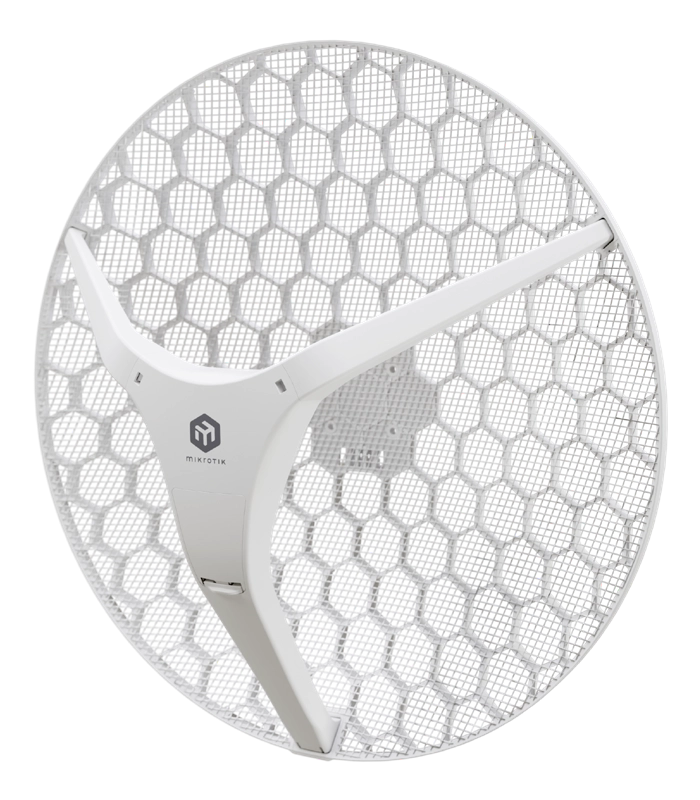

LHG-5axD-XL
Need more distance? Go for the XL model with an extra large 27 dBi antenna — capable of stable point-to-point links up to 30 km in ideal conditions.
Gigabit Ethernet with PoE-in (less cables to worry about!)
State-of-the-art antenna built directly into the wireless unit — no signal loss from extra cabling, and extra durability!
Modern dual-core ARM CPU
Wi-Fi 6 can be a real game-changer! Here’s why:
The 802.11ax standard brings crucial improvements for long-distance wireless links — including better spectral efficiency, higher modulation rates (1024-QAM), and lower latency. That means stronger performance even in noisy environments and faster, more stable connections over a greater distance. Combined with WPA3 encryption and RouterOS v7, the LHG ax series is ready for the challenges of modern outdoor networking. Order yours today — and be ready too!
FEATURES
Specifications
| Product code | LHG-5axD |
|---|---|
| CPU | Dual-Core IPQ-5010 800 MHz |
| CPU architecture | ARM 64bit |
| Size of RAM | 256 MB |
| Storage | 128 MB NAND |
| Number of 1G Ethernet ports | 1 |
| Wireless interface model | QCN-6102 |
| Wireless | 5 GHz 802.11a/n/ac/ax |
| Antenna gain | LHG 5 ax: 24.5 dBi |
| Dimensions | LHG 5 ax: 391 x 222 mm |
| Operating system | RouterOS v7, License level 3 |
| Operating temperature | -40°C to +70°C |
Powering
| DC input | PoE in |
|---|---|
| PoE-In input Voltage | 12-28 V |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 0.38 A |
| PoE-In | Passive PoE |
| Max power consumption | 5 W |

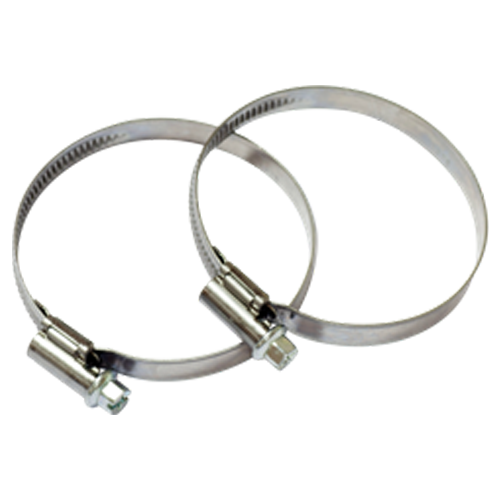

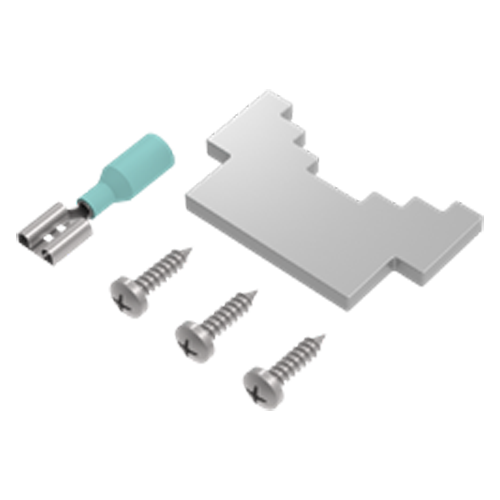

Included parts

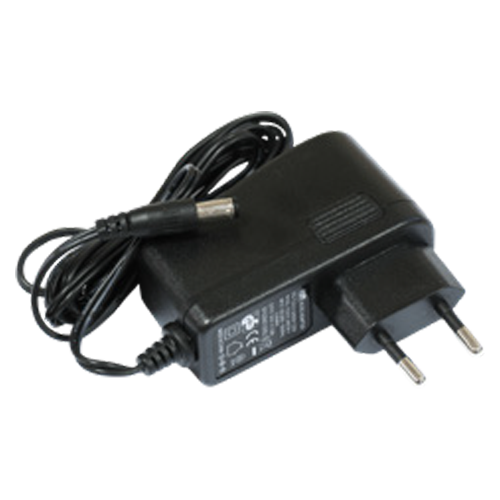

power adapter
