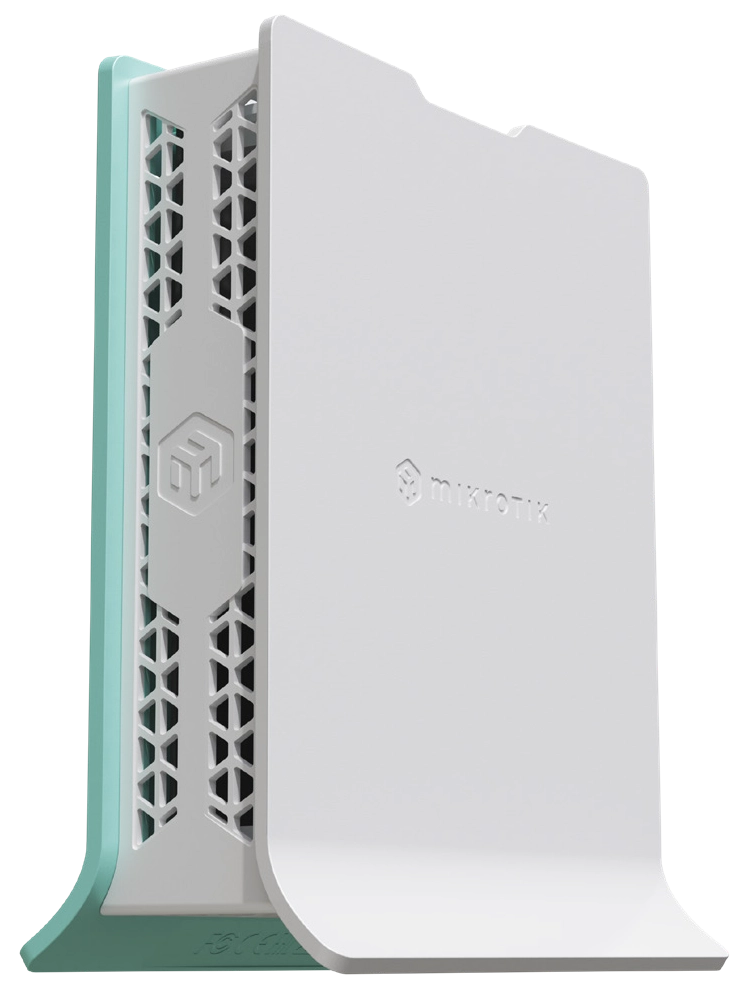

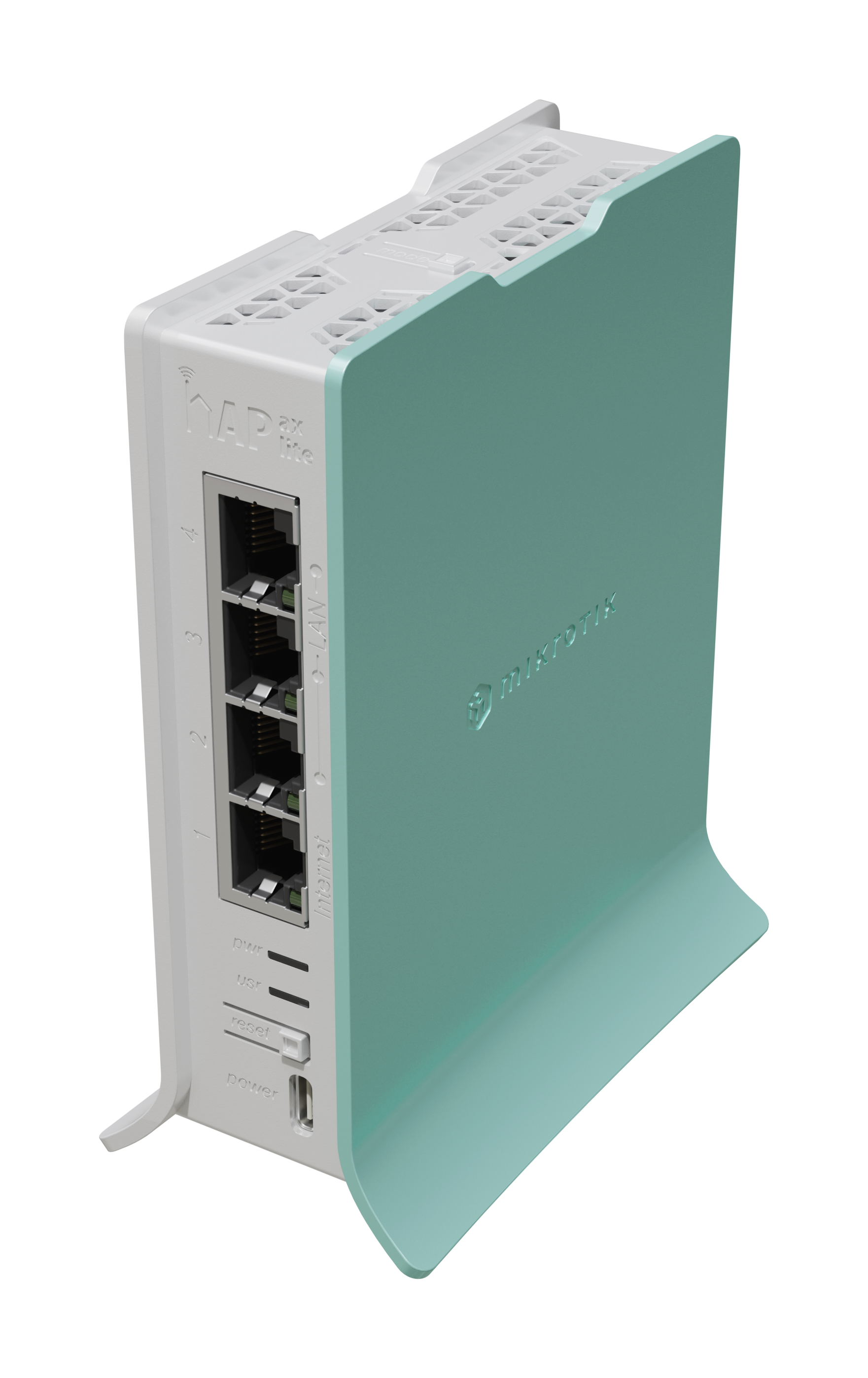

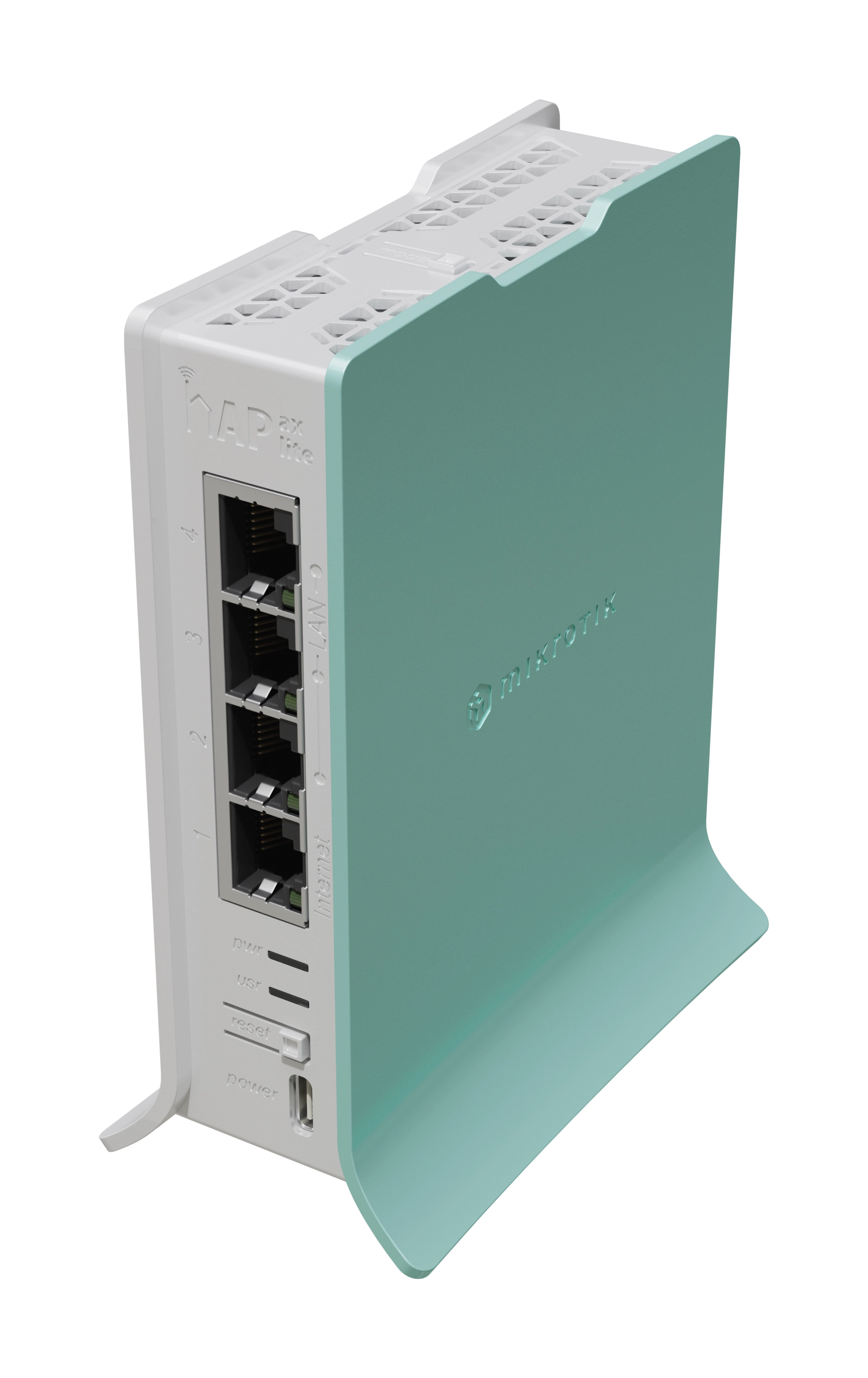

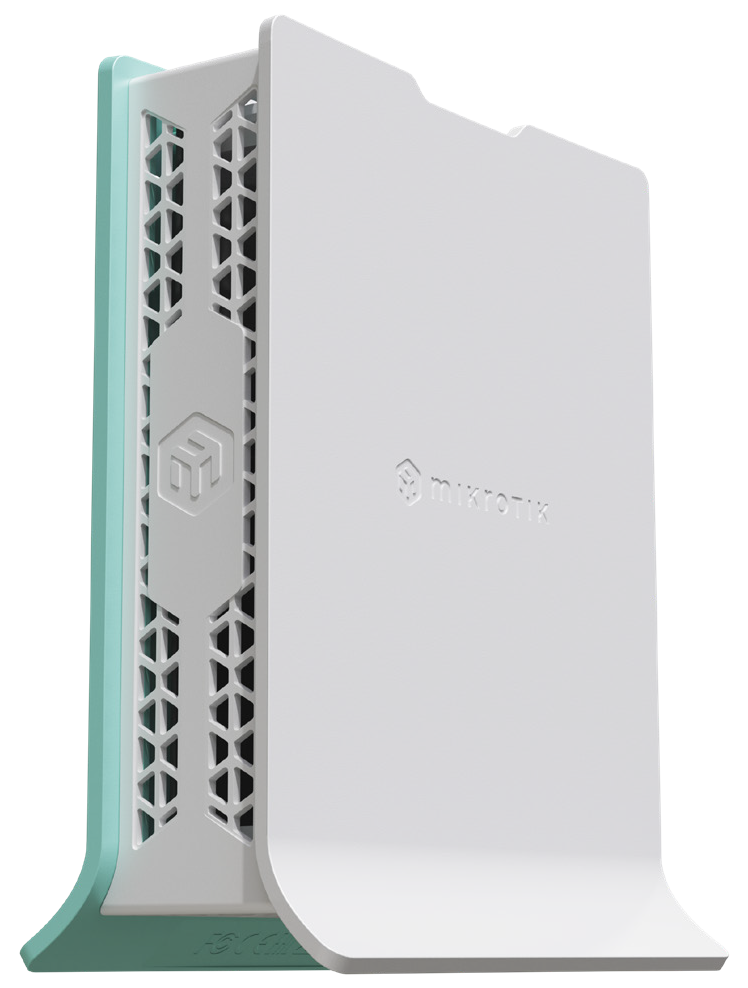

hAP ax lite
hAP ax lite with 800MHz CPU, 256MB RAM, 4 x Gbit LAN, 2.4 GHz 802.11b/g/n/ax two chain wireless with integrated antennas, RouterOS L4, tower case, PSU
hAP ax lite is the perfect tiny solution when you’ve got to cut costs but can’t afford to sacrifice performance. Our latest Gen6 AX wireless chip allows you to squeeze the traditional 2.4 GHz wireless spectrum like a lemon! Depending on your overall setup, you can expect an increase in speed of up to 90%!
Very useful in scalable setups like hotels or expanding offices – the appealing price point, compact size, and a strong set of features allows adding more devices without a doubt! And – speaking of hotels – why not pack a hAP ax lite for your vacation? It takes up almost no space in your suitcase and allows you to break free from the restrictive guest networks.
And don’t let the size fool you – hAP ax lite knocks it out of the park in terms of price vs. performance! With full RouterOS v7 support, you can run all kinds of advanced operations. For example, secure VPN tunnels to access your office network from home, firewalls, bandwidth shaping, user access control, and so on. Your network. Your rules.
Our hAP lite devices have always been about value. With 256 MB of RAM, a modern ARM CPU running at 800 MHz, 4x Gigabit Ethernet ports, much higher dual-chain antenna gain (up to 4.3 dBi!), and a complete visual redesign, the new hAP ax lite is a real trailblazer of value and affordable networking.
FEATURES
Specifications
| Product code | L41G-2axD |
|---|---|
| CPU | Dual-Core IPQ-5010 800 MHz |
| CPU architecture | ARM 64bit (RouterOS 32bit) |
| Size of RAM | 256 MB |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 4 |
| Switch chip model | MT7531BE |
| Wireless band | 2.4 GHz |
| Wireless interface model | IPQ-5010 |
| Wireless | 802.11b/g/n/ax dual-chain |
| Wireless antenna max gain | 4.3 dBi |
| Dimensions | 124 x 100 x 54 mm |
| Operating system | RouterOS v7, License level 4 |
| Operating temperature | -40°C to +70°C |
Powering
| Number of DC inputs | 1 USB type C |
|---|---|
| Min voltage | 5 V |
| Max voltage | 5 V |
| Max current at Min voltage | 1.54 A |
| Max current at Max voltage | 1.54 A |
| Power adapter nominal voltage | 5 V |
| Power adapter nominal current | 2.4 A |
| Max power consumption | 8 W |
Wireless specifications
| Rate (2.4 GHz) | Tx (dBm) | Rx (dBm) |
|---|---|---|
| 1MBit/s | 22 | -100 |
| 11MBit/s | 22 | -100 |
| 6MBit/s | 22 | -95 |
| 54MBit/s | 18 | -77 |
| MCS0 | 22 | -95 |
| MCS7 | 17 | -75 |
| MCS9 | 16 | -69 |
| MCS11 | 15 | -61 |
Included parts

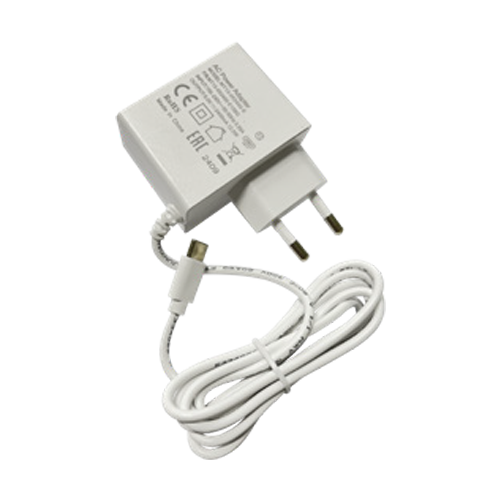

power adapter
