MikroTik

L23UGSR-5HaxD2HaxD

RouterBOARD L23UGSR-5HaxD2HaxD with dual-core ARM IPQ-5010 800 MHz CPU, 256MB RAM, 1x2.5Gbps SFP port, 1xGigabit LAN, built-in dual-band 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain wireless, USB, SIM slot, RouterOS L4


Category

SKU

MTIK-L23UGSR-5HaxD2HaxD

Buy this product from


Remember the thrill of crafting your custom solutions with our RouterBoard series? Get ready for even more DIY achievements: we’re refreshing the RB product line with Wi-Fi 6!

The new L23UGSR is a dual-band Wi- Fi 6 upgrade of the popular RB922 DIY router. You can use it to build custom low-cost outdoor access points or CPEs – for your home, office, homelab needs or even to launch your own products , such as smart vending machines or ticket stations! Thousands of people across the globe choose the RouterBOARD series to build their products because MikroTik offers no subscriptions, no paywalls , no weird licensing or royalty deals... You buy it – you own it!

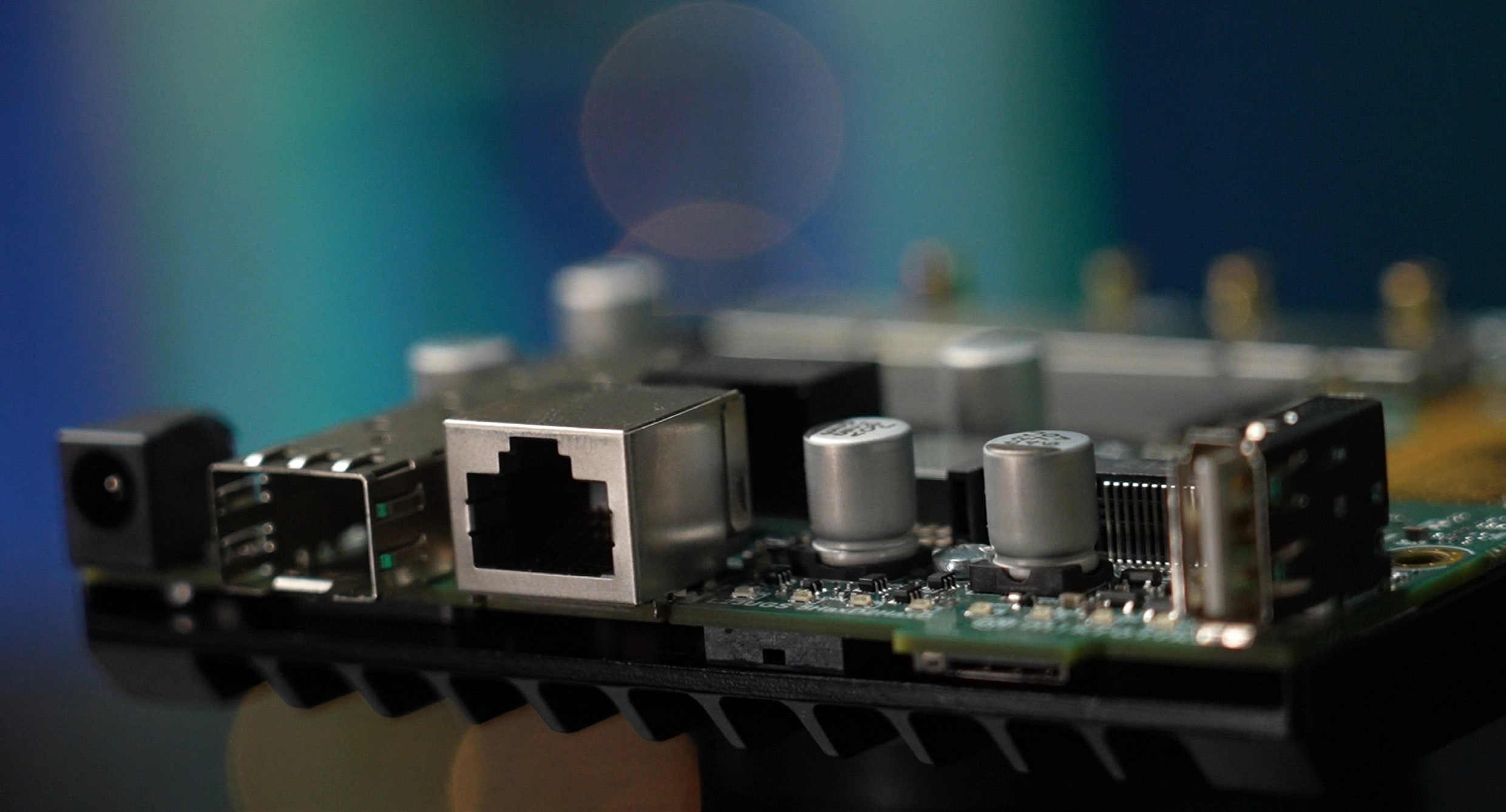

L23UGSR-5HaxD2HaxD

This modular board features a modern Qualcomm Maple CPU based on the ARM architecture, a USB port for extra storage or other needs, Gigabit Ethernet with passive PoE-in, 2.5 Gigabit SFP for fiber connectivity, and a free miniPCIe slot that allows further customization. You could, for example, add an LTE modem for a mobile internet backup – we’ve added a NanoSIM slot on the bottom! But there are other options, like adding a gateway for LoRa IoT setups, such as our R11e-LR8!

A powerful dual-band, dual-chain Wi-Fi 6 radio offers increased speed, stability, security, roaming, power management, and other features, compared to the previous wireless protocols for distances up to 30 kilometers.*

The four MMCX connectors enable further customization with an endless variety of antennas you could use. Add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link!

If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.



FEATURES

Modern dual-core ARM CPU
Modern dual-core
ARM CPU
NanoSIM slot
NanoSIM
slot
MiniPCIe – add your own... LoRa? LTE?
MiniPCIe – add your own...
LoRa? LTE?
USB port
USB port
Gigabit Ethernet with passive PoE-In
Gigabit Ethernet
with passive PoE-In
2.5 Gigabit SFP for fiber connectivity
2.5 Gigabit SFP for
fiber connectivity
Our latest dual-band, dual-chain Wi-Fi 6 radio
Our latest dual-band,
dual-chain Wi-Fi 6 radio
Specifications
Product code L23UGSR-5HaxD2HaxD
CPU Dual-Core IPQ-5010 800 MHz
CPU architecture ARM
Size of RAM 256 MB
RAM type DDR3L
Storage 128 MB, NAND
Number of 1G Ethernet ports 1
Number of 2.5 Gbps SFP ports 1
MiniPCIe slots 1 (Only for LTE, LoRA cards)
USB port 1 USB 2.0 port type A*
SIM slot 1 NanoSIM
Wireless interface model IPQ-5010 (2.4 GHz), QCN-6102 (5 GHz)
Wireless 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain
Operating system RouterOS v7, License level 4
Operating temparature -40°C to +70°C
Powering
Number of DC inputs 2 (PoE-In, DC jack)
PoE-In input Voltage 18-28 V
DC jack input voltage 12-28 V
Power adapter nominal voltage 24 V
Power adapter nominal current 1.2 A
Max USB current 1.5 A
PoE-In Passive PoE
Max power consumption without attachments 12 W
Max power consumption 25 W
Certification & Approvals
Certification CE, FCC, IC
