You can’t buy safety, but you can buy an RBGESP surge protector and keep your setup safe. RBGESP is Gigabit Ethernet Surge Protector that can be used to protect the network from lightning or surge damages.

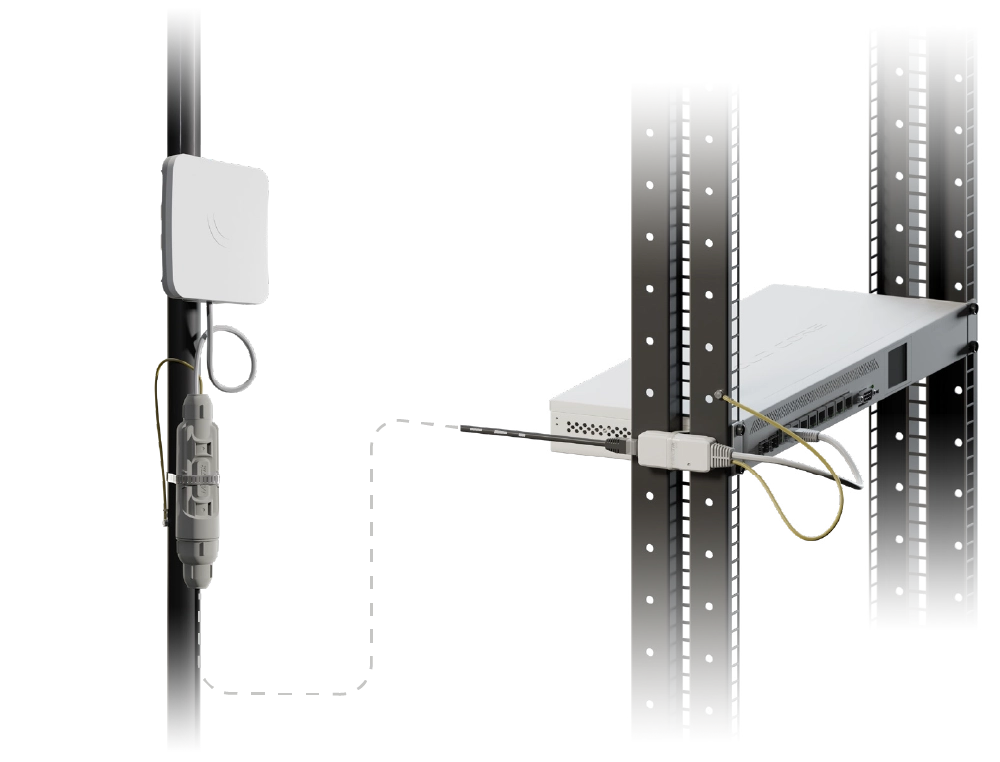

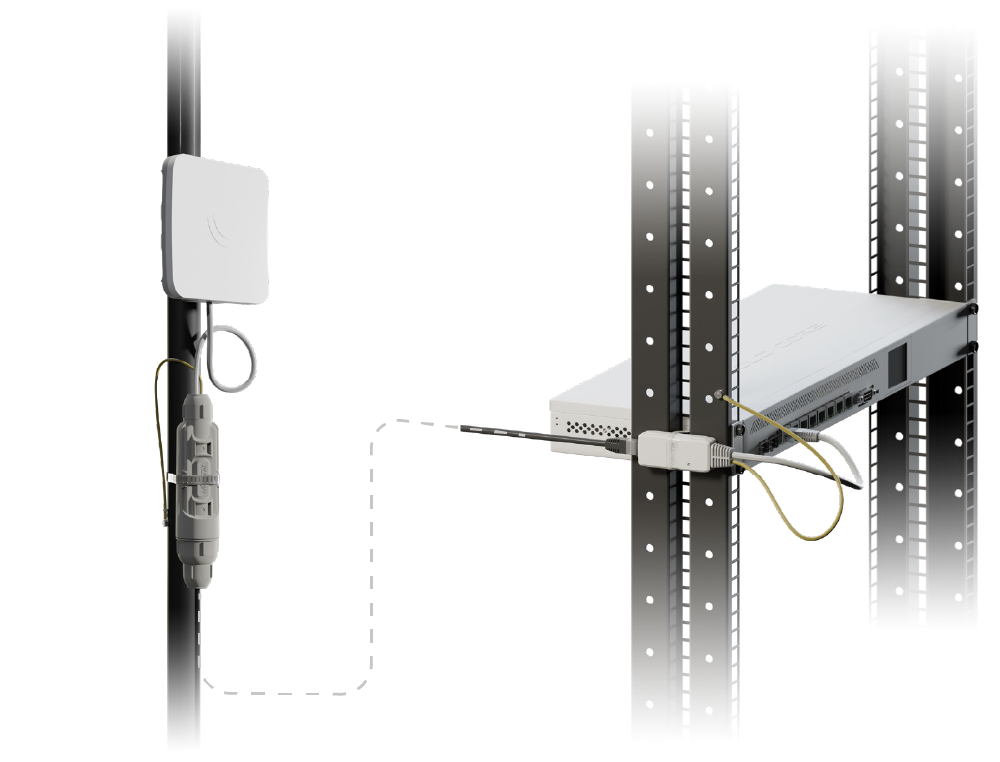

Here’s what a typical use-case would be like. You have a mast with some antennas. And some switches on the ground. Put the GESP surge protectors on each end. They come sealed inside a new and improved IP67 weatherproof enclosure. Your antennas are now safe during a lightning storm.
Don’t forget about the grounding wire! Secure it to the rackmount, mast, or any other structure that is connected to the ground. For maximum protection, you should use a surge protector on both ends of long cables.
These small devices can make all the difference when it comes to lightning strikes or static build-up.
The GESP units can usually absorb multiple impacts, but make sure to check their condition after each surge. For attachment of GESP units, we recommend using PVC zip ties. Just don’t make it too tight.
You know what they say – hope for the best, prepare for the worst. This small investment can save you lots of time and money, so why risk it? Grab a GESP and put your mind at ease!
FEATURES
Specifications
| Product code | GESP | |
|---|---|---|
| Interface connections | RJ45 Male/Female Conector | |
| ESD/EMP protection | Absorbing transient current with response to surge voltage of 100 V/s 1 kV/μs ESD, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61643-21, ±8 kV contact, ±15 kV air | |
| DC spark-over voltage | 75 V @ 100 V/s | |
| Maximum impulse spark-over voltage | 700 V @ 1 kV/μs | |
| Discgarge current | 3 kA (8/20μs) | |
| Minimum insulation resistance | 1 G ohm @ 50V | |
| Maximum capacitance | 4 pF @ 1 MHz | |
| Data line protecion | RJ45 10/100/1000 Ethernet | |
| PoE support | Passive PoE | |
| IP rating | IP67 | |
| Operating temperature | -40 to 70°C | |

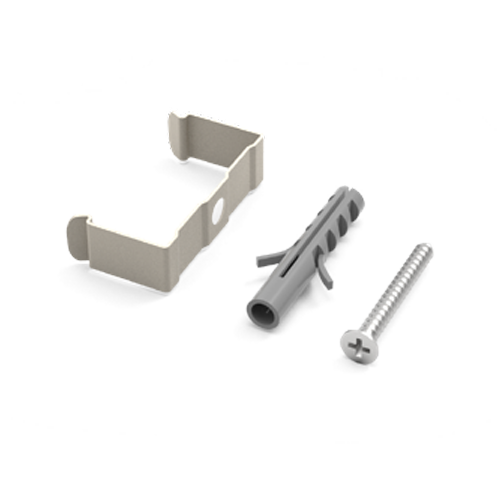

Included parts
