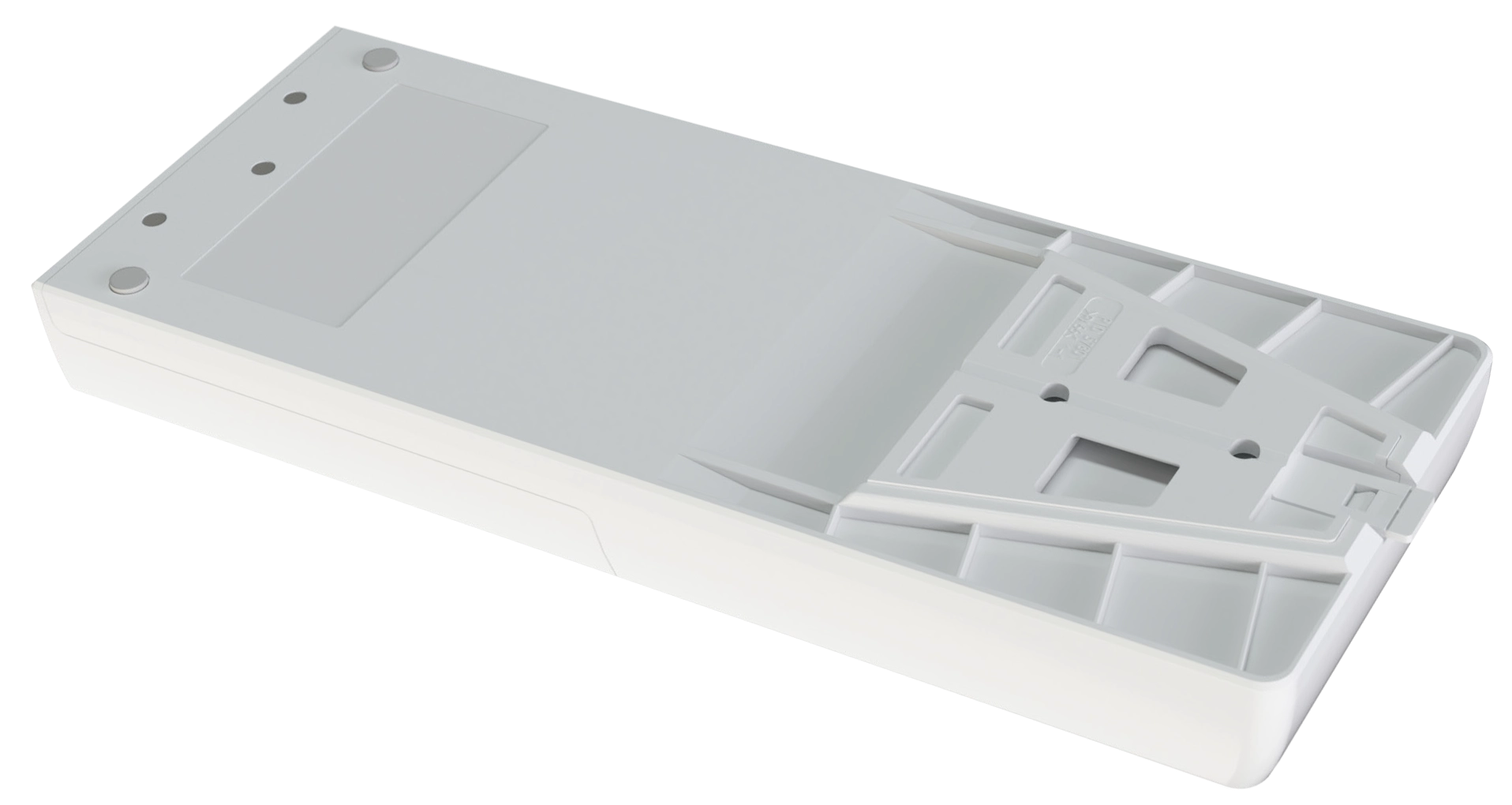

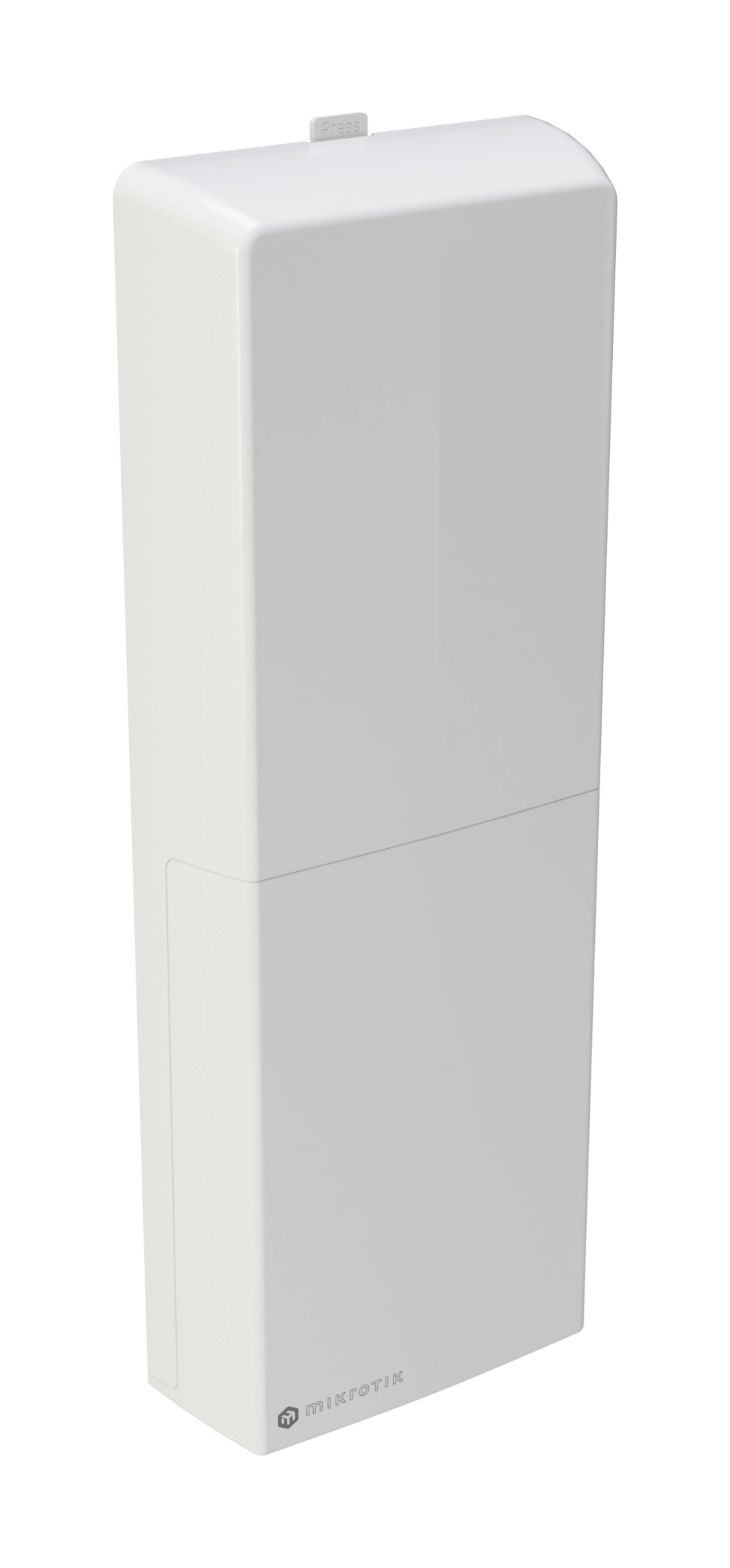

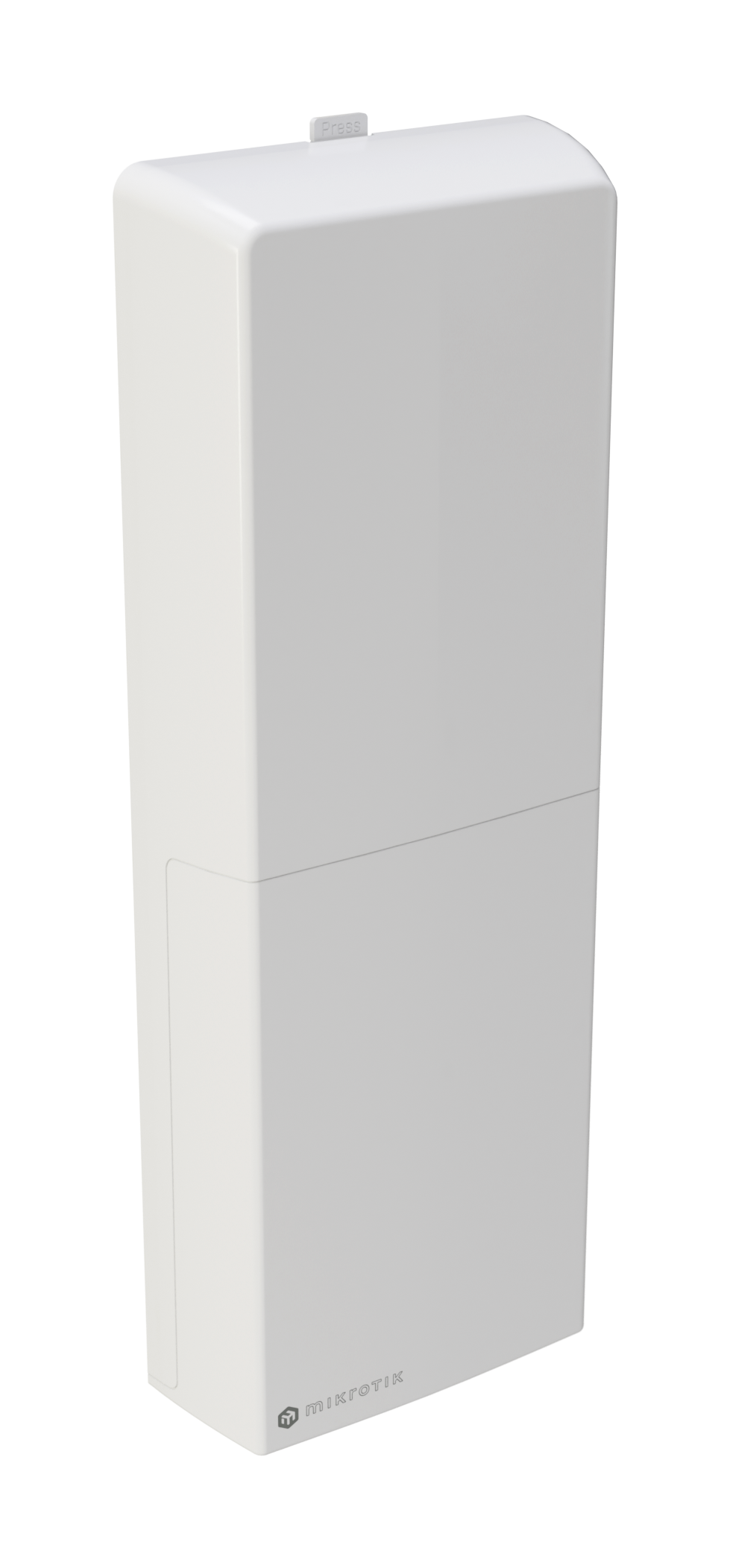

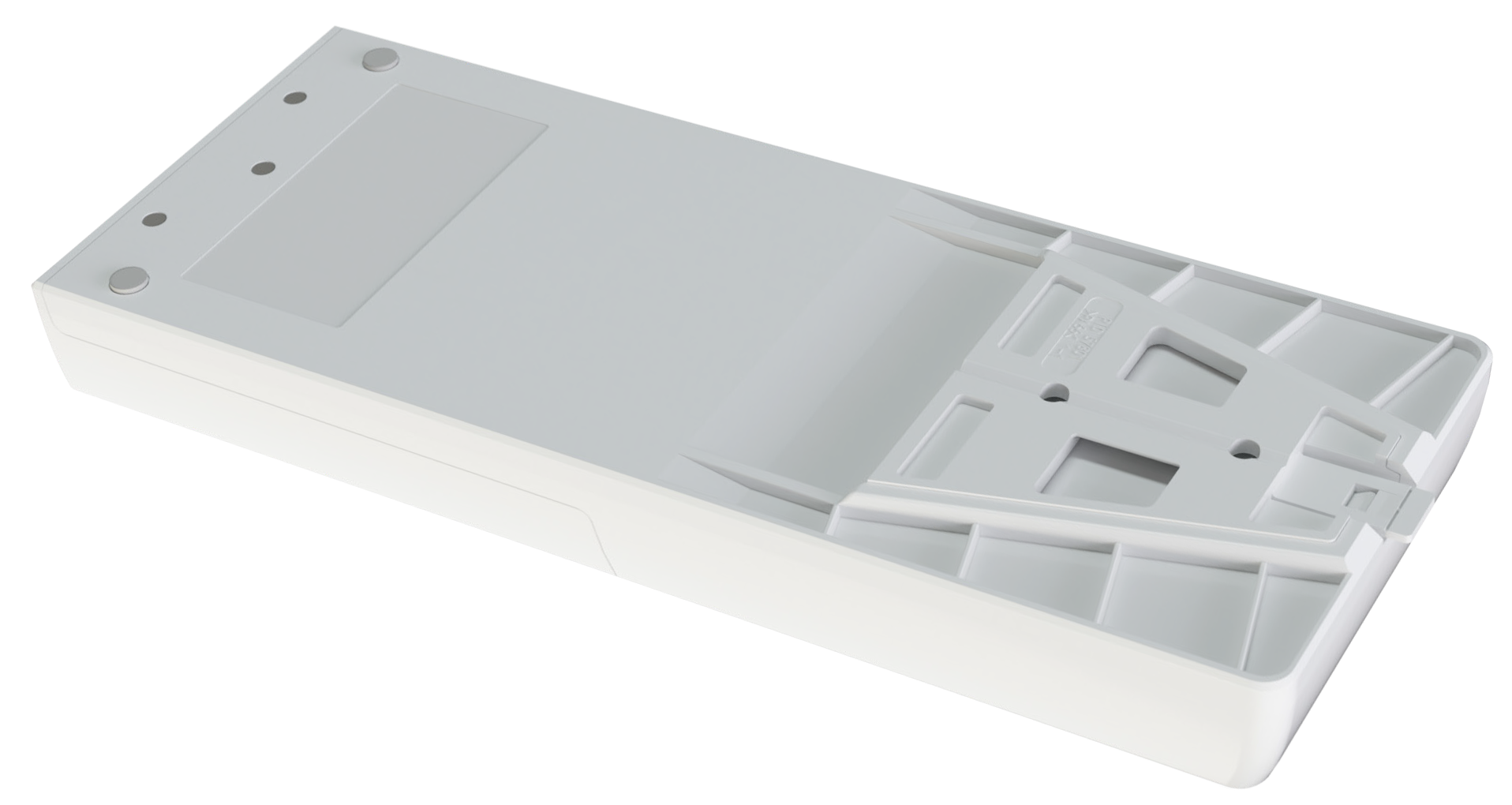

Fiber-to-Copper FTC21
A weatherproof IP55 Fiber-to-Copper converter with smart management capabilities for your fiber and Ethernet setups.
A weatherproof IP55 Fiber-to-Copper converter with smart management capabilities for your fiber and Ethernet setups.
The FTC21 is not just a simple media converter. It runs a full version of SwOS, offering advanced management features:
- Interface monitoring and management
- VLAN support
- SNMP reporting
- Basic traffic shaping
- Advanced packet filtering with Access Control Lists - allowing for packet filtering, accounting, and VLAN tagging based on Layer 2, 3, and 4 protocol header conditions.
This compact device is housed in a weatherproof IP55 enclosure, making it suitable for outdoor and harsh environments.
Powering is simple and flexible, with both PoE-in and a DC jack that support 24-57V. The FTC21 is highly efficient, consuming only 3W without attachments and up to 4W fully loaded.

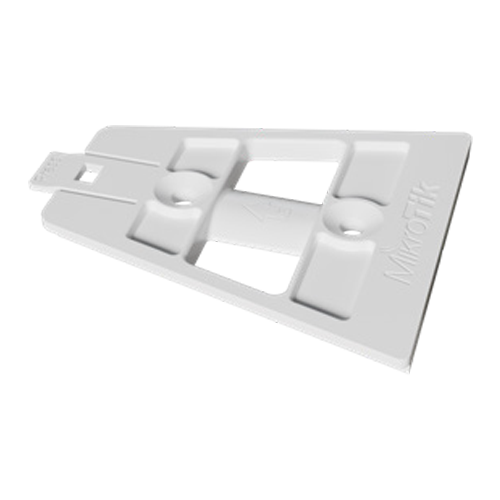

It comes with everything you need for installation, including a 48V power adapter, a PoE injector, and a ceiling mount and fastening set
For reliable, smart Fiber-to-Copper conversion, the FTC21 is the ideal choice.
Specifications
| Product code | FTC21 |
|---|---|
| Number of 1G Ethernet ports | 2 |
| Number of 1G SFP ports | 1 (2.5G supported) |
| Switch chip model | 88E6341 |
| Dimensions | 254 x 97 x 35 mm |
| Operating system | SwOS Lite |
| Operating temperature | -40°C to +70°C |
Powering

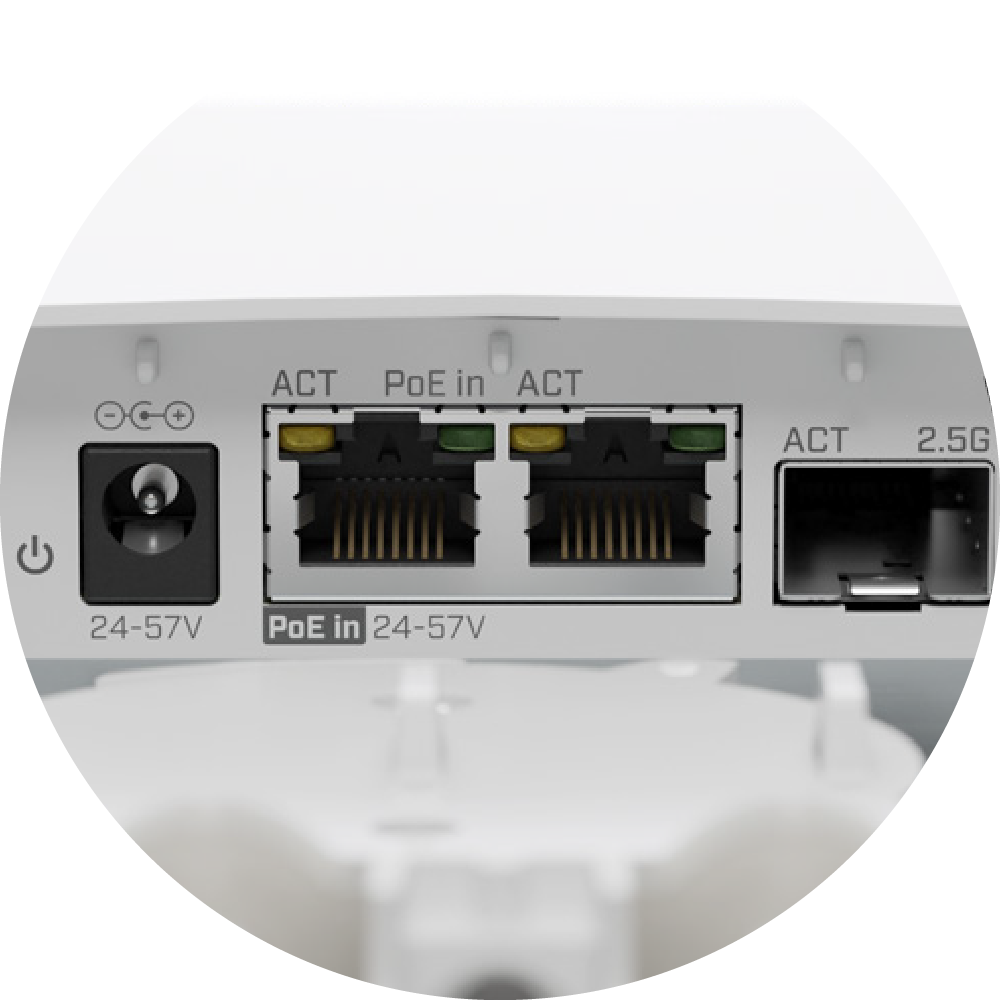

| Number of DC inputs | 2 (PoE-In, DC jack) |
|---|---|
| PoE-In input Voltage | 24-57 V |
| DC jack input Voltage | 24-57 V |
| Power adapter nominal voltage | 48 V |
| Power adapter nominal current | 0.95 A |
| PoE-In | 802.3af/at |
| Max power consumption without attachments | 3 W |
| Max power consumption | 4 W |
Included parts

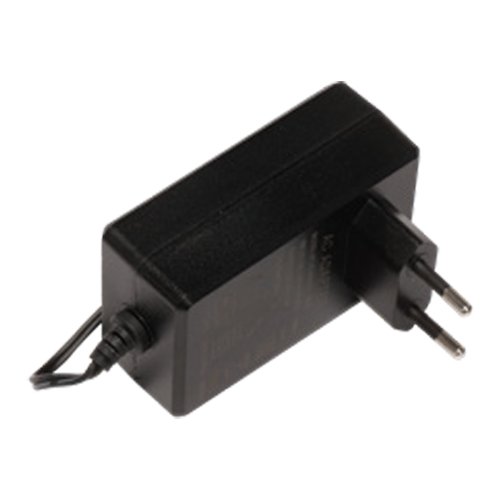

power adapter

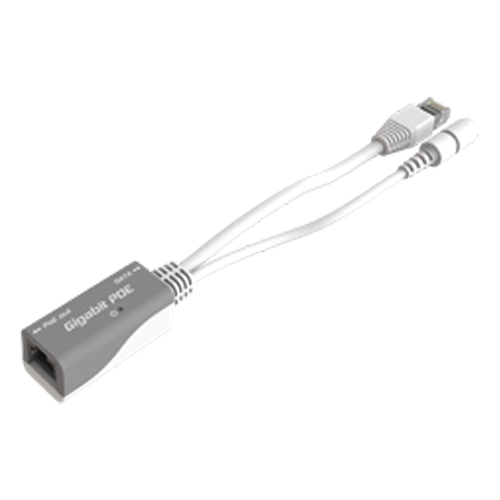

PoE injector

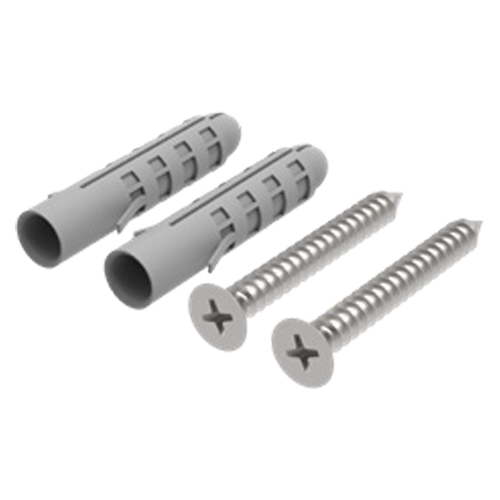

set
