MikroTik
Fiber-to-Copper FTC11XG
Smart 10G SFP+ to 10G Ethernet Fiber to Copper converter, running SwOS Lite

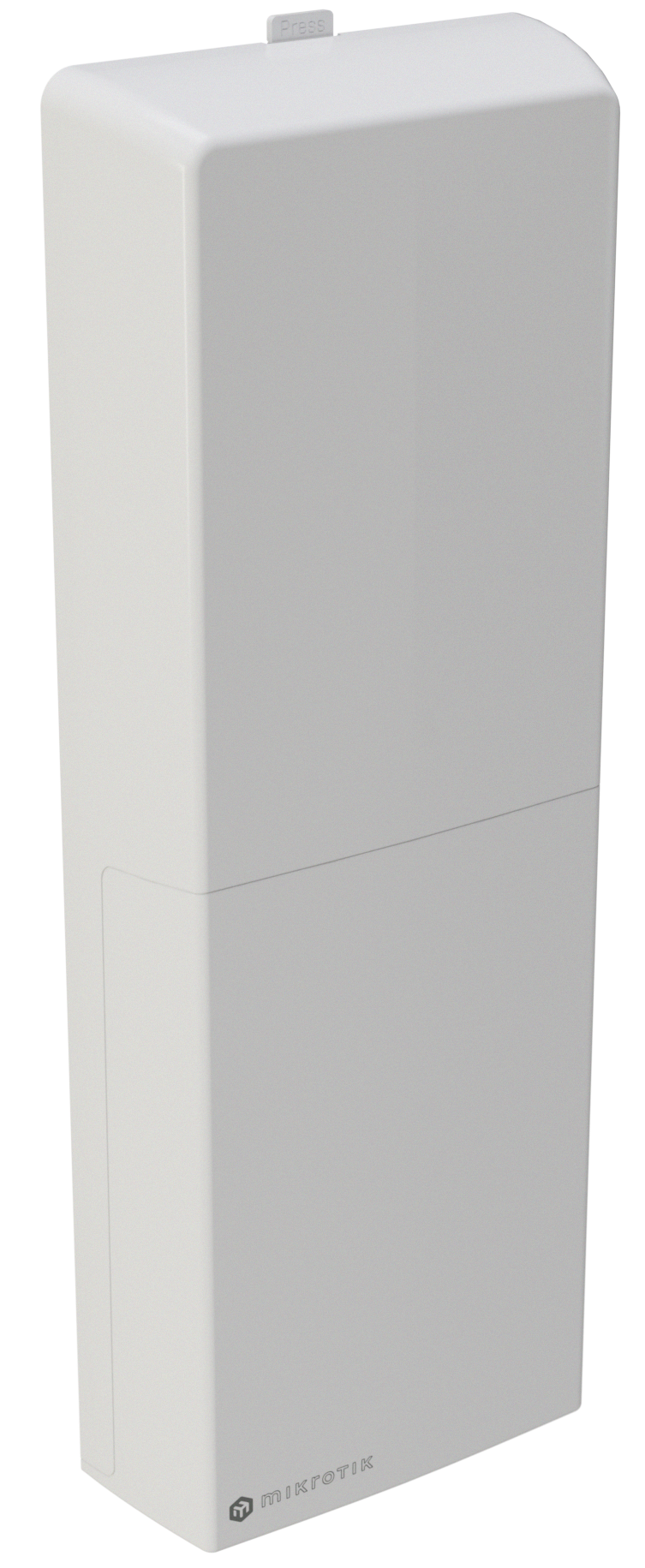

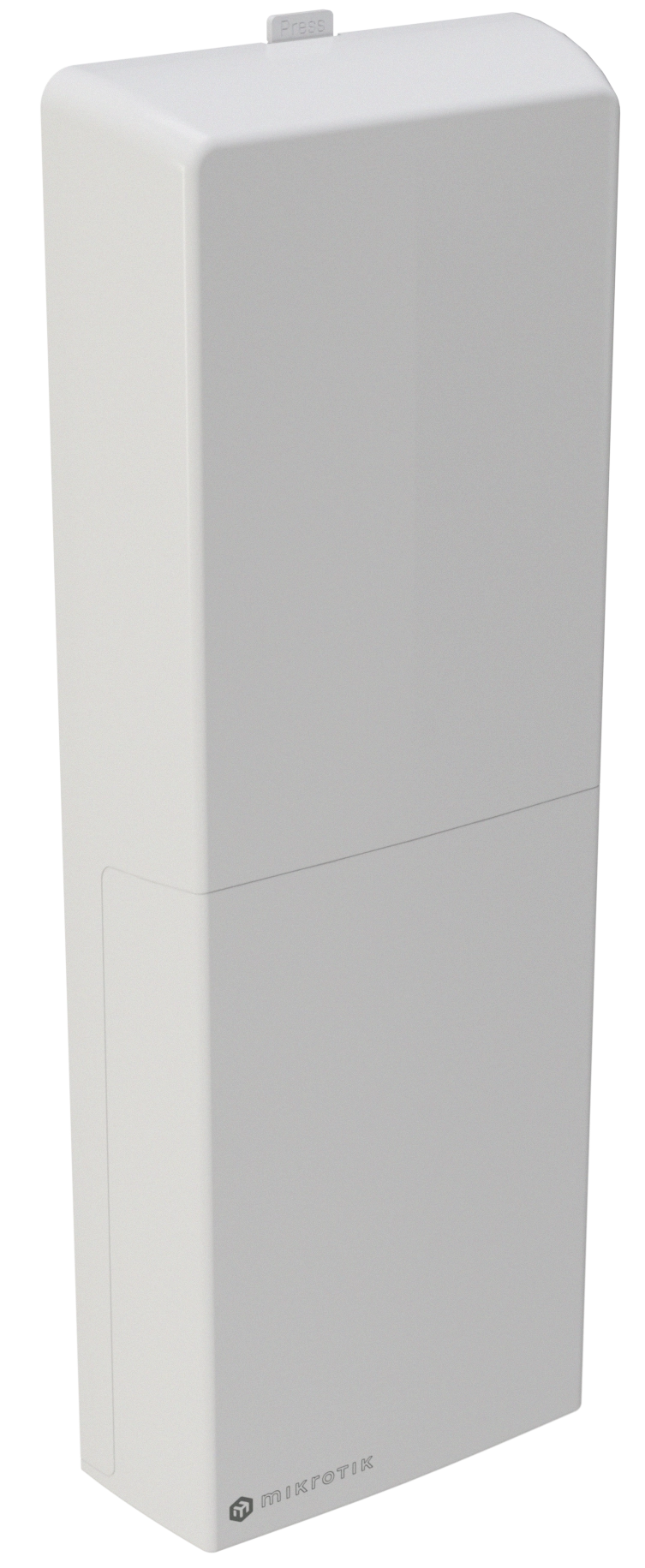

A weatherproof IP55 Fiber-to-Copper converter to transform your 10 Gigabit SFP+ fiber connections into RJ45 10 Gigabit Ethernet.

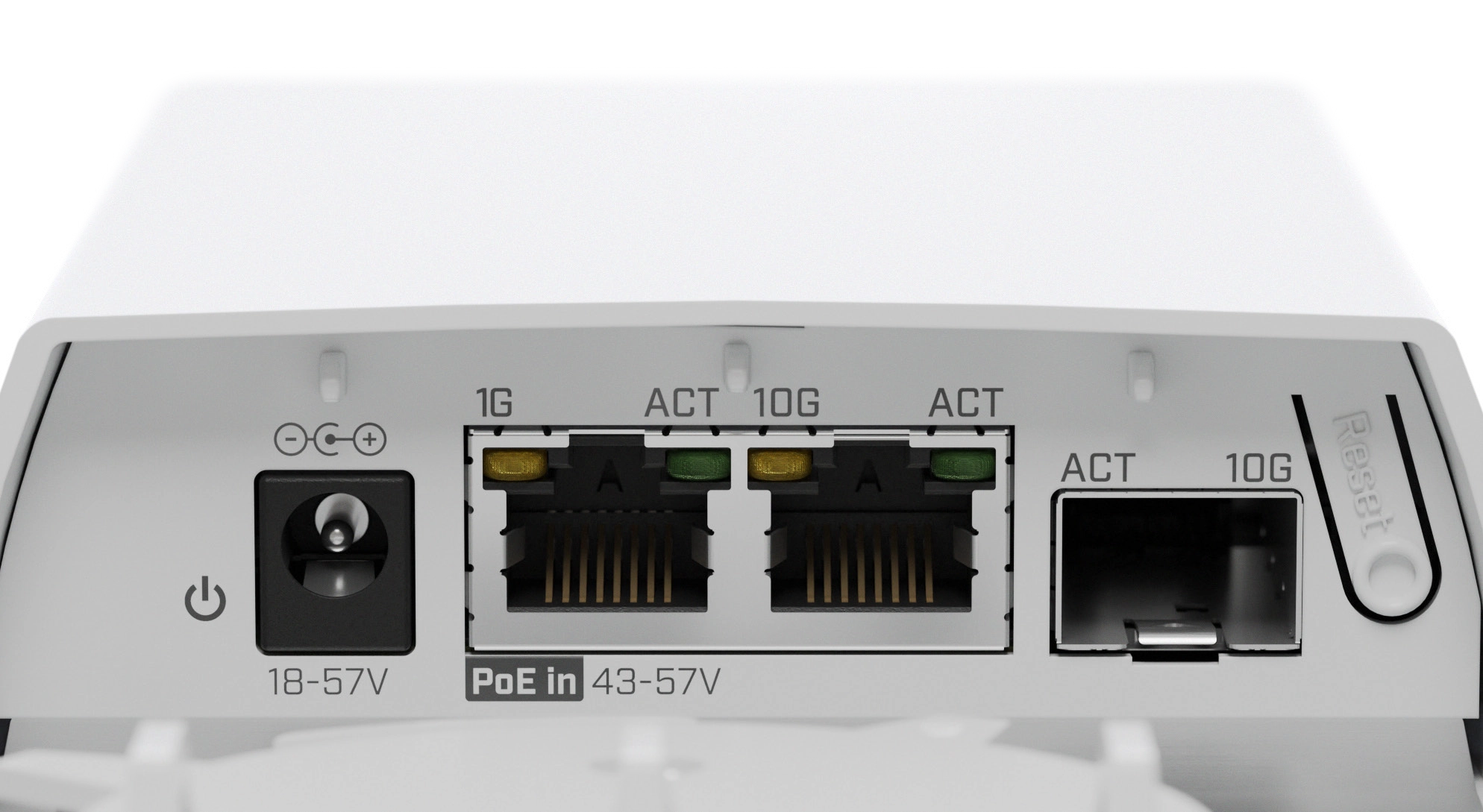

FTC11XG offers low power consumption (9-10 W) and two ways of powering: a standard DC jack & 802.3 af/at/bt 43-57 V PoE-In. It comes with a PoE injector, a power supply, and everything you need to secure it on a ceiling.
FTC11XG runs a full version of SwOS Lite, and has its own switch chip, allowing you to perform a variety of tasks you would never expect from a regular media converter! Here are some of them:
- Interface management and monitoring;
- VLAN support;
- SNMP reporting;
- Basic traffic shaping;
- And even advanced packet filtering with Access Control List - a powerful network tool that allows packet filtering, accounting, and VLAN tagging based on Layer 2, 3, and 4 protocol header field conditions.
Specifications
| Product code | FTC11XG |
|---|---|
| Number of 1G Ethernet ports | 1 |
| Number of 10G Ethernet ports | 1 |
| Number of 10G SFP+ ports | 1 |
| Switch chip model | 88E6193 |
| Dimensions | 254 x 97 x 35 mm |
| Operating system | SwOS Lite |
| Operating temperature | -40°C to +70°C |
Powering
| Number of DC inputs | 2 (PoE-In, DC jack) |
|---|---|
| PoE-In input Voltage | 43-57 V |
| PoE-In Max current at Min voltage | 0.21 A |
| PoE-In Max current at Max voltage | 0.16 A |
| DC jack input Voltage | 18-57 V |
| Power adapter nominal voltage | 48 V |
| Power adapter nominal current | 0.95 A |
| PoE-In | 802.3 af/at/bt |
| Max power consumption without attachments | 9 W |
| Max power consumption | 10 W |
Included parts

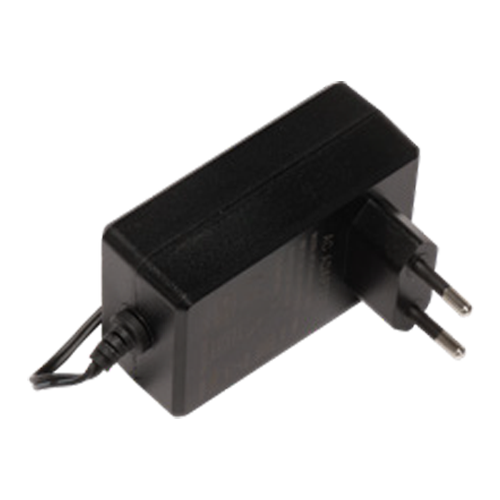

power adapter

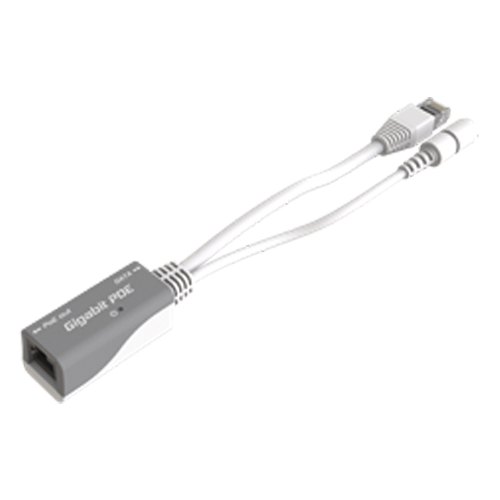

PoE injector

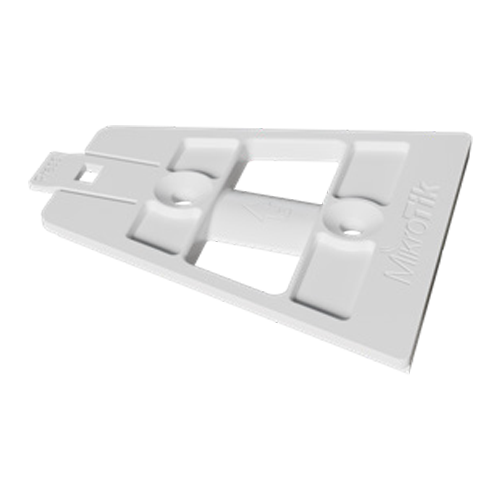

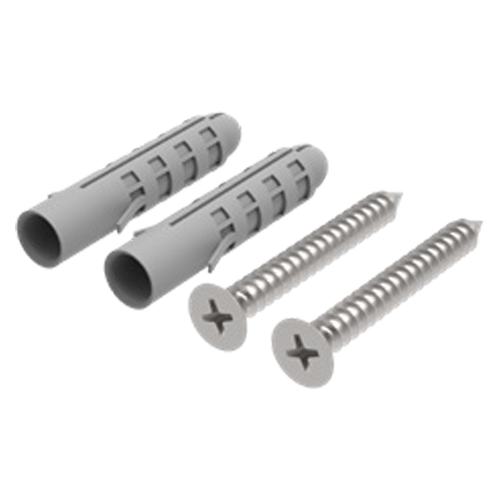

set
