MikroTik

hEX S (2025)

hEX S (2025 version) with Dual Core 950MHz CPU, 512MB RAM, 2.5G SFP cage, 5 x Gigabit Eth ports, USB, RouterOS v7 L4, plastic case, PSU

Category

Ethernet Router

SKU

MTIK-E60iGS

Buy this product from

https://shop.alagas.net/product/mtik-e60igs-hex-s-arm-2025 https://shopee.sg/product/745400337/16379978556/ https://www.lazada.sg/products/i1825372808.html

Need a wired router that won’t slow you down or drain your budget? The new hEX S is a compact, truly budget-friendly device that does a little bit of everything — and does it fast. Whether you’re building a smart home, running a local lab, or just want a clean, powerful wired setup, this is your new Ethernet essential.

highlight-icon

And yes — it costs even less than the previous generation, the original hEX S bestseller from 2018!

With 5× Gigabit Ethernet ports (including PoE-in on port #1 and PoE-out on port #5), plus a 2.5 Gigabit SFP cage, this compact router can adapt to many roles. And unlike most ISP boxes, you can assign any port as WAN, LAN, or bridge — full flexibility right out of the box.

Highlight Image

Example 1

Max Your Internet Plan

Got a 2 Gbps fiber plan? Use the 2.5G SFP port to deliver that speed to your power hungry devices — from self-hosted movie servers to media workstations or security camera NVRs. Perfect for homes, small offices, and media studios.


Highlight Image

Example 2

Local Speed for Creators

Connect your PC over 2.5G, then bond two 1G ports to your NAS.

Enjoy ultra-fast file transfers, smooth backups, and zero bottlenecks — ideal for creators, editors, and researchers who work with large files.



hEX S — higher speed and better connectivity on a smaller budget.
Because every network deserves an upgrade.

FEATURES

2.5G SFP UPLINK
2.5G SFP UPLINK
Supercharged speed for NAS, fiber, and modern ISP plans
5X GIGABIT ETHERNET + BONDING SUPPORT
5X GIGABIT ETHERNET + BONDING SUPPORT
Run multiple 1G links — share fast uplinks or connect multi-port storage
POE-IN & POE-OUT
POE-IN & POE-OUT
Clean setup with power and data over a single cable (PoE-in on Ether1, PoE-out on Ether5)
USB 3 PORT FOR STORAGE & FILE SHARING
USB 3 PORT FOR STORAGE & FILE SHARING
Plug in a drive and share files locally or remotely easier than ever
DUAL-CORE ARM CPU + 512 MB RAM
DUAL-CORE ARM CPU + 512 MB RAM
Responsive performance for smart homes, labs, and small offices
ROUTEROS V7 INSIDE
ROUTEROS V7 INSIDE
Custom port configs, VLANs, advanced routing — no feature gates, no upsells, just pure networking
WALL-MOUNTABLE DESIGN
WALL-MOUNTABLE DESIGN
Flexible form factor fits anywhere — on a desk, wall, or cabinet
FLEXIBLE POWERING (12–57 V)
FLEXIBLE POWERING (12–57 V)
Compatible with PoE, off-grid power, and standard DC jacks
Specifications
Product code E60iUGS
CPU Dual-Core EN7562CT 950 MHz
Size of RAM 512 MB
RAM type DDR3
Storage 128 MB, NAND
Number of 1G Ethernet ports 5
Number of 1G SFP ports 1 (2.5G supported)
USB port 1 type A
Switch chip model EN7562CT
Dimensions 113 x 89 x 28 mm
Operating system RouterOS v7, License level 4
Operating temperature -40°C to +70°C
Powering
Number of DC inputs 2 (DC jack, PoE-In)
DC jack input Voltage 12-57 V
PoE-In input Voltage 18-57 V
Power adapter nominal voltage 24 V
Power adapter nominal current 1.2 A
PoE-In 802.3af/at
PoE-out Passive PoE up to 57V
Smart PoE Injector
PoE-out ports Ether5
Max out per port output (input < 30 V) 0.5 A
Max out per port output (input > 30 V) 0.5 A
Max power consumption (without attachments) 5 W
Max power consumption 23 W
Included parts

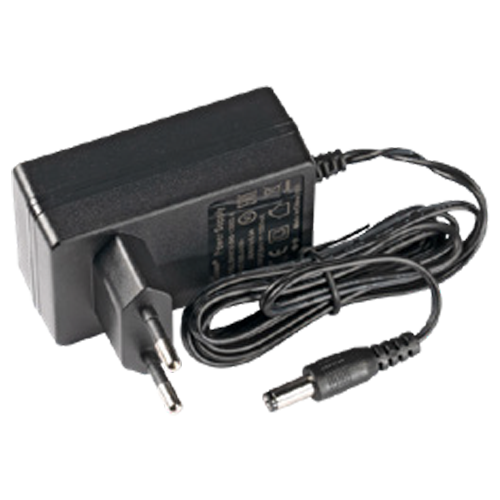

24 V 1.2 A power adapter

24 V 1.2 A
power adapter
