Chateau 5G R16
Chateau 5G kit with 716MHz four core CPU, 256MB RAM, 5 x Gigabit LAN, two wireless interfaces (built-in 2.4Ghz 802.11b/g/n two chain wireless with integrated antennas, built-in 5Ghz 802.11ac two chain wireless with integrated antennas), R16 RG520F-EU LTE/5G modem for bands 1/3/5/7/8/20/28/32/38/40/41/42/43/75/76/77/78, integrated antennas, tower case, USB, 1.5m RJ45 cable, PSU, RouterOS L4
Price
SGD 872.00
Category
SKU
MTIK-D53G-5HacD2HnD-TC&RG520F-EU
Buy this product from
Do you dream of escaping the hustle and bustle of the busy city life and moving to the suburbs? Perhaps you’ve already made the move but are frustrated by the slow internet speeds? Fear not, because Chateau is here to solve all your connectivity problems. Going back to the city to finish some business? Once again – Chateau is the perfect companion for ultra-fast premium connectivity.
Chateau 5G R16 is the 2023 upgrade of our bestselling 5G Chateau home and office router – designed to make 5G more affordable than ever. The new modem brings the price down while adding features like NR CA and 3GPP Release standard with extra ENDC combination support. In other words, much better connectivity across a wide range of different mobile operator towers! It can even simultaneously use the 5G and 4G bands to maximize the throughput! It also supports 4x4 MIMO for the lower frequency range, including band 8, 20, and 28 – for even better signal in the countryside. Wherever life takes you – Chateau can make it better.

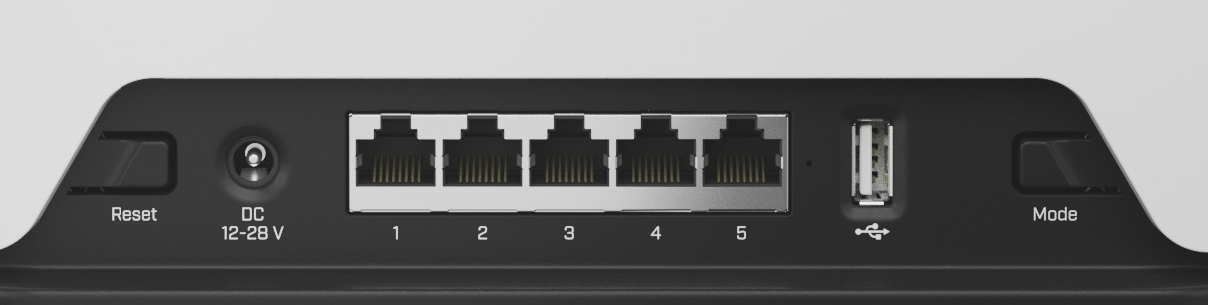

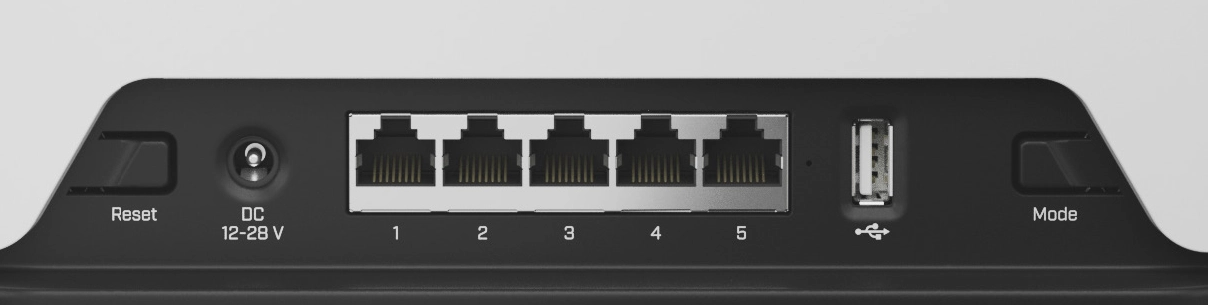

There are 5x Gigabit Ethernet ports – enough to connect most household devices: PCs, TVs, game consoles, and so on.
More than just a router: try containers for home automation, ad blocking, simple web hosting, private DNS, network storage, IoT, and so much more!
Latest version of our versatile RouterOS, a powerful quad-core ARM CPU and a USB port for extra storage – that’s all you need to step inside the exciting world of Linux container apps! Here are some neat container use-cases to explore with your brand new Chateau:

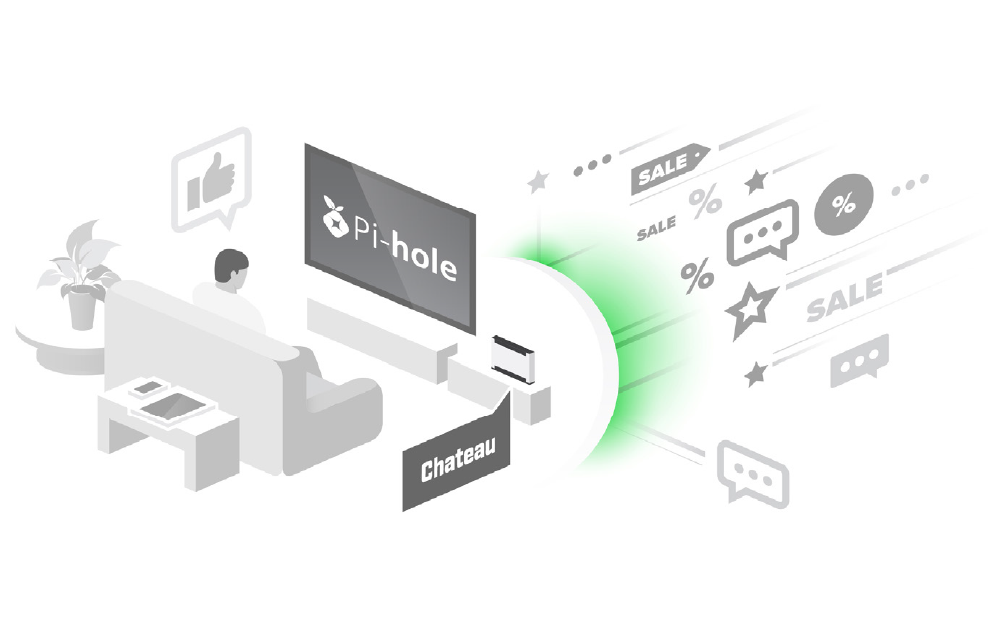

Block all unwanted ads with PiHole hosted on your Chateau 5G R16!
Host your web blog or a simple website on your router – without any additional hardware!
Chateau 5G R16 can host the HomeAssistant app, which allows monitoring your CCTV cameras, temperature sensors, and other devices to create the smart home ecosystem of your dreams!
You can even automate your home. For instance, wouldn’t it be nice if the air conditioning turned on automatically when it gets too hot? With Chateau’s container support that’s an easy ride!
The most advanced software on the market - RouterOS
We have been making our own software since 1996. And over the years, we’ve managed to create the most powerful and flexible networking software on the market. With each new version, our priority remained the same: to provide users with the freedom to explore different setups and always have the right tools for the job. Run a secure VPN from the office directly to your home, enable parental control, complex firewall rules, IPsec hardware acceleration, VLAN, e-mail or SMS notifications – the possibilities are endless. And here’s the best part: there are no paywalls and no confusing subscriptions.
Jack of all trades... master of many!
Chateau is a remarkable choice for any mobile operator. It can be customized with a variety of labels or printed branding. And operators can use the TR-069 technology to create custom remote client management options, such as router configuration via the same web-page clients are using to pay the mobile bill. Advanced users, seasoned sysadmins, and networking enthusiasts can take advantage of the astounding depth of RouterOS. And the non-tech households can skip all that, using a simple, straightforward web-page instead.
Now is the time for great networking without compromises. Secure remote work options and a blazing fast Internet connection are no longer a luxury. They are a necessity. And Chateau is the solution.
FEATURES
ARM CPU
DUAL-BAND WIRELESS
ETHERNET
APP SUPPORT
DESIGN: EXTRA DURABILITY,
STONGER SIGNAL
Specifications
| Product code | D53G-5HacD2HnD-TC&RG520F-EU |
|---|---|
| CPU | Quad-core IPQ-4019 448-896 (auto) MHz |
| CPU Architecture | ARM 32bit |
| Size of RAM | 256 MB |
| Storage | 16 MB flash |
| 1G Ethernet ports | 5 |
| Micro SIM slots | 1 |
| USB port | 1 USB 2.0 port type A |
| M.2 slot | 1 |
| Switch chip model | IPQ-4019 |
| Wireless | 2.4 GHz 802.11a/b/g/n dual-chain, 5 GHz 802.11a/n/ac dual-chain |
| Wireless antenna max gain | 2.4 GHz (3 dBi), 5 GHz (5.5 dBi) |
| LTE modem | R11mL-RG520F |
| LTE category | 20 (2.0 Gbps downlink, 200 Mbps uplink) |
| 5G | SA Sub-6 4.0 Gbps (DL)/ 900 Mbps (UL) NSA Sub-6 4.0 Gbps (DL)/ 550 Mbps (UL) |
| TAC | 86945405 |
| 5G SA FDD bands | 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) |
| 5G SA FTDD bands | 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) |
| 5G NSA FDD bands | 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) |
| 5G NSA TDD bands | 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) |
| LTE FDD bands | 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) |
| 3G Category | R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) |
| Dimensions | 240 x 156 x 44 mm |
| Operating system | RouterOS v7 only |
| Operating temperature | -40°C to +70°C |
Wireless specifications
| Rate (2.4 GHz) | Tx (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 25 | -100 |
| 11MBit/s | 25 | -94 |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 23 | -78 |
| MCS0 | 26 | -96 |
| MCS7 | 22 | -73 |
| Rate (5 GHz) | Tx (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 26 | -96 |
| 54MBit/s | 22 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 21 | -75 |
| MCS9 | 19 | -70 |
Powering
| Number of DC inputs | 1 |
|---|---|
| DC jack input Voltage | 12-28 V |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.2 A |
| Max power consumption without attachments | 15 W |
| Max power consumption | 25 W |
Included parts

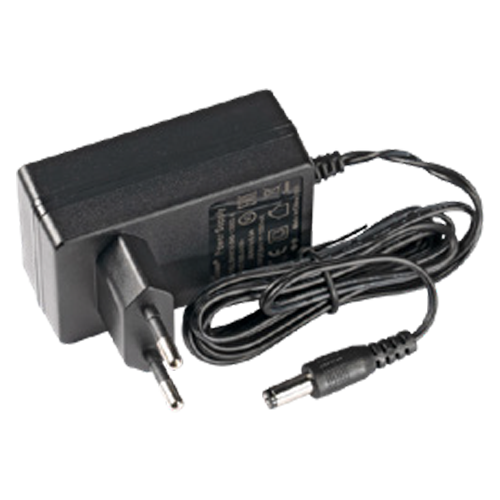

power adapter
Cable (1.5m)
