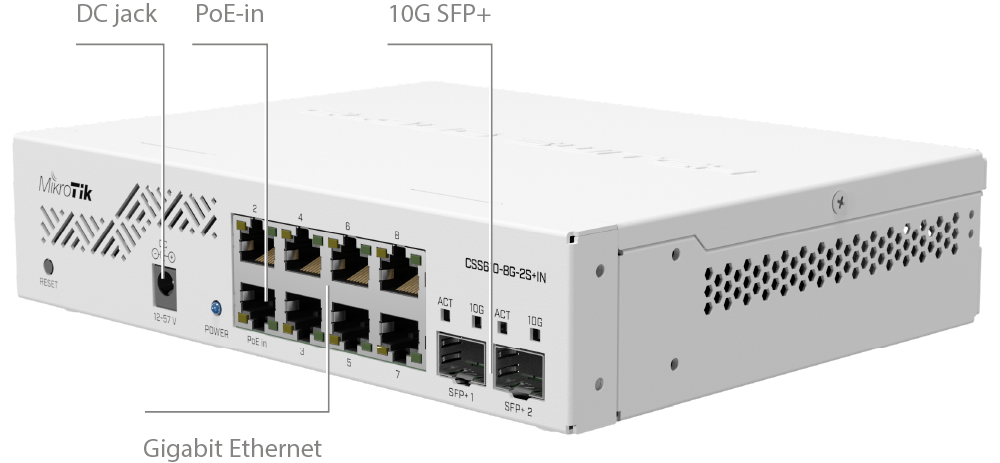

Cloud Smart Switch 610-8G-2S+IN
Cloud Smart Switch 610-8G-2S+IN with 8 x Gigabit ports, 2 x SFP+ cages, SwOS, desktop case, PSU
Cloud Smart Switch 610-8G-2S+IN is our answer to the everlasting demand for more power in a small and simple package. It comes with the lightweight SwOS which is easy to configure from your web browser. It gives you all the basic functionality for a managed switch, and more: you can manage port-to port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.
With 8 x 1G Ethernet ports and 2 x 10G SFP+ ports this switch is the fastest device in this size and price category on the market!
FEATURES
8 x Gigabit Ethernet ports
2x SFP+ for 10G fiber
Port-to-port forwarding
MAC filtering
VLAN
PoE-in
Traffic mirroring
Broadcast storm control
Specifications
| Product code | CSS610-8G-2S+IN |
|---|---|
| Switch chip model | 88E6193X |
| Number of 1GbE ports | 8 |
| Number of 10G SFP+ ports | 2 |
| Dimensions | 200 x 167 x 46 mm |
| Operating system | SwOS |
| Operating temparature | -20°C to +60°C |
Powering
| PoE-in | Passive PoE |
|---|---|
| PoE-in input Voltage | 12-57 V |
| Number of DC inputs | 2 (PoE-in, DC jack) |
| DC jack input Voltage | 12-57 V |

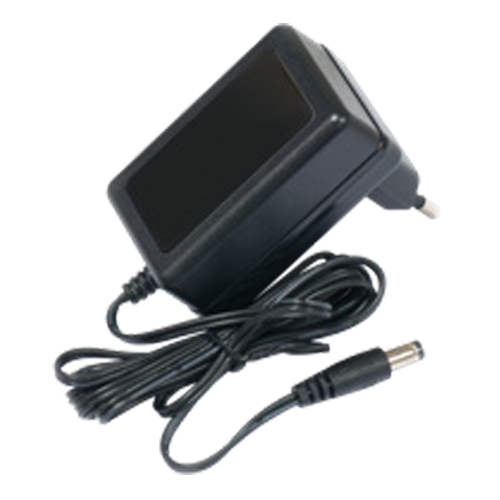

| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 0.8 A |
| Max power consumption without attachments | 5 W |
| Max power consumption | 11 W |
Certification & Approvals
| Certification | CE, FCC, IC |
|---|
Included parts
power adapter
