Cloud Smart Switch 318-16G-2S+IN
With 16 Gigabit Ethernet ports and 2 SFP+ 10G uplink ports, you get all the connectivity you need without unnecessary bulk. Stack two units side by side in a single 1U rack space for even greater flexibility and scalability.
The CSS318-16G-2S+IN is a perfect fit for setups where 24 ports are too many and 8 ports just aren’t enough . Its compact 10-inch form factor and cost-effective design make it the ideal solution for small and medium-sized offices, home networks, or rackmount environments where space and efficiency are key.
With 16 Gigabit Ethernet ports and 2 SFP+ 10G uplink ports , you get all the connectivity you need without unnecessary bulk. With its versatile mounting options, the CSS318-16G-2S+ can be installed in 10-inch racks , standard 19-inch racks , or even side-by-side—fitting two switches in a single 1U 19-inch space .
Configuration is effortless with MikroTik’s lightweight SwOS . Accessible directly from your web browser, SwOS gives you the core functionality of a managed switch and more:
- Port-to-port forwarding
- Broadcast storm control
- MAC filtering
- VLAN configuration
- Traffic mirroring
- Bandwidth limitation
- Adjustment of MAC and IP header fields
The CSS318 consumes just 10W without attachments and up to 13W under full load , keeping your network reliable while saving power.
Compact, scalable, and simple to configure — the CSS318-16G-2S+IN is ready to enhance your network at an unbeatable price.
FEATURES
Specifications
| Product code | CSS318-16G-2S+IN |
|---|---|
| Storage | 16 MB Flash |
| Number of 1G Ethernet ports | 16 |
| Number of 10G SFP+ ports | 2 |
| Switch chip model | 98DX2518 |
| Dimensions | 218 x 157 x 44 mm |
| Operating system | SwOS (Min. version 2.17) |
| Operating temperature | -40°C to +70°C |
Powering
| Number of AC inputs | 1 |
|---|---|
| Max current | 0.197 A |
| AC input range | 100-240 V |
| Max power consumption (without attachments) | 10 W |
| Max power consumption | 13 W |

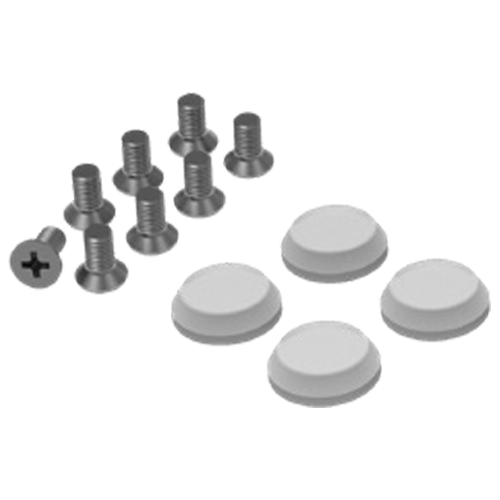

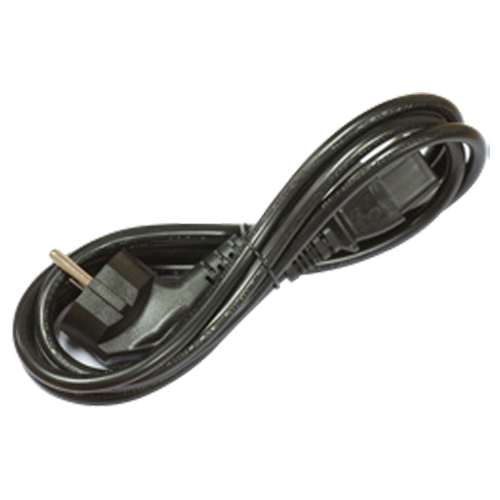

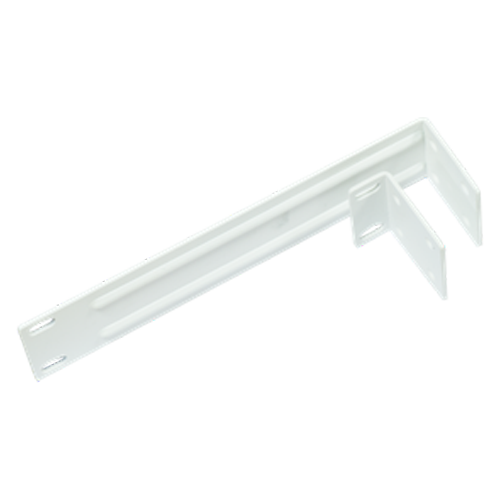

Included parts
