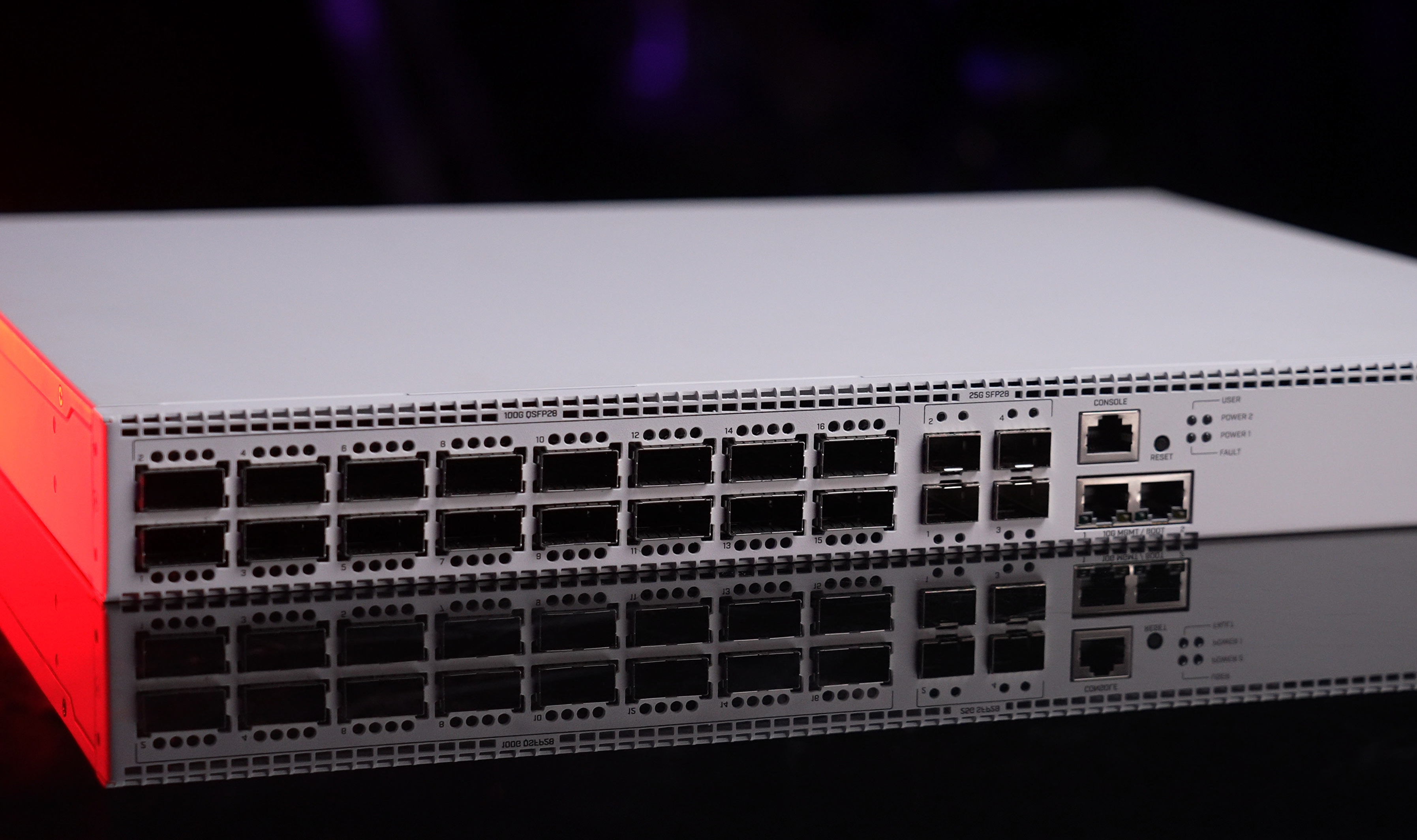

Cloud Router Switch 520-4XS-16XQ-RM
Cloud Router Switch 520-4XS-16XQ-RM with Quad-Core AL52400 2 GHz CPU, 4 GB RAM, 98CX8410 switch chip, 2 x 10G Eth ports, 4 x 25G SFP28 ports, 16 x 100G QSFP28 ports, RouterOS L5, 1U rackmount enclosure, dual hot-swap PSU, 4 x hot-swap fans
Welcome to the forefront of networking: the future-proof CRS520-4XS-16XQ-RM with extra processing power, 4 GB of DDR4 RAM, and the best price per 100 Gigabit port we’ve seen so far.
With 16x 100 Gigabit QSFP28 ports, 4x 25 Gigabit SFP28 ports, and an extra pair of 10 Gigabit Ethernet ports, this switch can bring a lot of value to complicated enterprise networks, data centers, multimedia studios, and other setups where you would typically use several devices. Now – a single CRS520 can do the trick!
Avid CCR users might recognize the powerful quad-core ARM CPU running at 2 GHz, and ask – why would a switch need all that power? Two reasons:
1) CRS520 is more than a switch. You can run OSPF/BGP, out-of-band/management VPNs, ACLs, Jumbo frames and even L3HW Offloaded routing;
2) Future-proofing: as our friends at Marvell keep expanding the capabilities of their spectacular switch-chips, our in-house software team is busy exploring ways to add even more Hardware Offloaded features. You can expect software updates that will take the CRS520 to the next level! And all that without any paywalls or subscriptions.
Two hot-swap power supplies and four hot-swap fans for cooling are included. This switch can also be powered by the PW48V-12V150W Hot Swap -48V DC telecom power supply, available separately.
FEATURES
SFP28 PORTS
QSFP28 PORTS
ETHERNET PORTS
RAM
POWER SUPPLIES
& COOLING
QUAD-CORE
2 GHZ ARM CPU
PORT
Specifications
| Product code | CRS520-4XS-16XQ-RM | |
|---|---|---|
| CPU | Quad-Core AL52400 2 GHz | |
| CPU architecture | ARM 64bit | |
| Size of RAM | 4 GB | |
| RAM type | DDR4 | |
| Storage | 128 MB, NAND | |
| Number of 1G/2.5G/5G/10G Ethernet ports | 2 (Support 10M / 100M / 1G / 10G speeds) | |
| Number of 25G SFP28 ports | 4 (Support 1G / 2.5G / 10G / 25G speeds, depending on module) | |
| Number of 100G QSFP28 ports | 16 (Support 4x 1G / 4x 2.5G / 4x 10G / 4x 25G / 1x 40G / 2x 50G / 1x 100G speeds, depending on module) | |
| Switch chip model | 98CX8410 | |
| Operating system | RouterOS v7 only, License level 5 | |
| Dimensions | 443 x 367 x 44 mm | |
| Operating temperature | -20°C to +50°C | |
Powering
| Number of AC inputs | 2 |
|---|---|
| Nominal current | 10.25 A |
| Max current | 12.5 A |
| AC input range | 100-240 V |
| Frequency | 47-63 Hz |
| Max power consumption (without attachments) | 123 W |
| Max power consumption | 150 W (220 W with both PSUs) |
Included parts

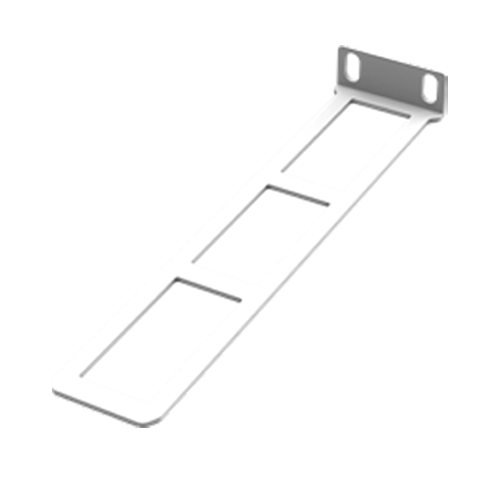

support ears
bracket
