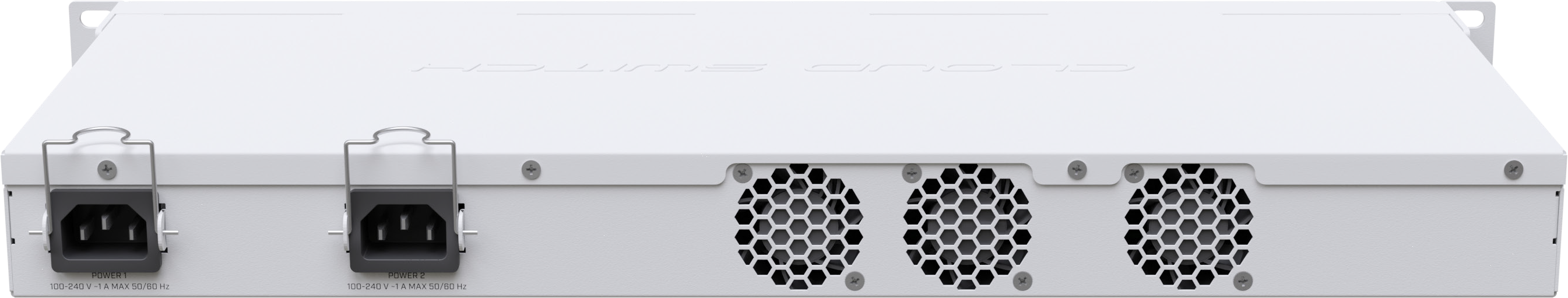

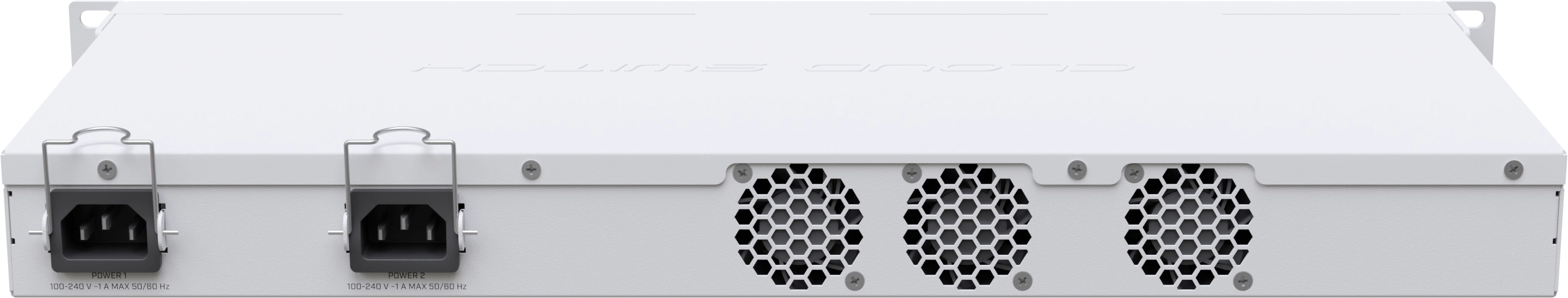

Cloud Router Switch 326-24S+2Q+RM
Cloud Router Switch 326-24S+2Q+RM with 24-port 10G SFP+ cages, 1-port 100Mbit Management Ethernet, 2-port 40G QSFP+ cages, 1U rackmount enclosure, Dual redundant PSU
Category
SKU
MTIK-CRS326-24S+2Q+RM
Buy this product from
If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.
Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total non blocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.
CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!
You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS.
This device is great for new or existing networks – we have developed an assortment of accessories that will help you unleash the full potential of this switch in any setup. CRS326-24S+2Q+RM – a professional’s choice!
Specifications
| Product Code | CRS326-24S+2Q+RM |
|---|---|
| CPU | QCA9531, 650 MHz |
| Size of RAM | 64 MB |
| Storage | 16 MB flash |
| 10/100 Ethernet ports | 1 |
| 10G SFP+ ports | 24 |
| 40G QSFP+ ports | 2 |
| Supported input voltage | AC power supply 100 - 240 V |
| Redundant supply | Yes |
| USB port | USB type A |
| Serial port | RJ45 |
| Dimensions | 443 x 200 x 44 mm |
| Operating temperature | -20°C .. +60°C |
| Operating system | RouterOS or SwitchOS, License level 5 |
| Max power consumption | 69 W |
Switching test results
| QCA9531 CRS326-24S+2Q | RouterOS v6.45 | ||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | ||||||
| 1518 byte | 512 byte | 64 byte | |||||
| kpps | Gbps | kpps | Gbps | kpps | Gbps | ||
| Switching | Non blocking Layer 2 throughput | 26007,8 | 315,838 | 75187,5 | 307,968 | 240652 | 123,214 |
| Switching | Non blocking Layer 2 capacity | 26007,8 | 631,677 | 75187,5 | 615,936 | 240652 | 246,428 |
| Switching | Non blocking Layer 1 throughput | 26007,8 | 320 | 75187,5 | 320 | 240652 | 161,718 |
| Switching | Non blocking Layer 1 capacity | 26007,8 | 640 | 75187,5 | 640 | 240652 | 323,436 |
Like other CRS products, CRS326-24S+2Q+RM comes with a decent built-in CPU, that can utilize all RouterOS features, but with some performance restrictions (indicated in table below).
CPU Layer 3 performance results
| QCA9531 CRS326-24S+2Q | RouterOS v6.45 | ||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | ||||||
| 1518 byte | 512 byte | 64 byte | |||||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 37,3 | 453,0 | 82,2 | 336,7 | 184,3 | 94,4 |
| Bridging | 25 bridge filter rules | 37,1 | 450,5 | 47,6 | 195,0 | 50,2 | 25,7 |
| Routing | none (fast path) | 37,6 | 456,6 | 69,0 | 282,6 | 94,1 | 48,2 |
| Routing | 25 simple queues | 37,2 | 451,8 | 56,5 | 231,4 | 66,3 | 33,9 |
| Routing | 25 ip filter rules | 26,7 | 324,2 | 29,4 | 120,4 | 30,9 | 15,8 |

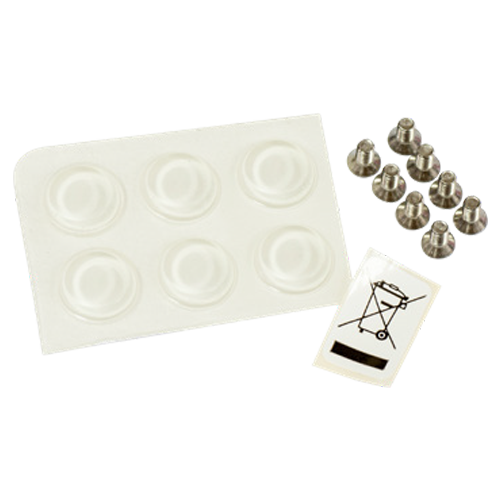

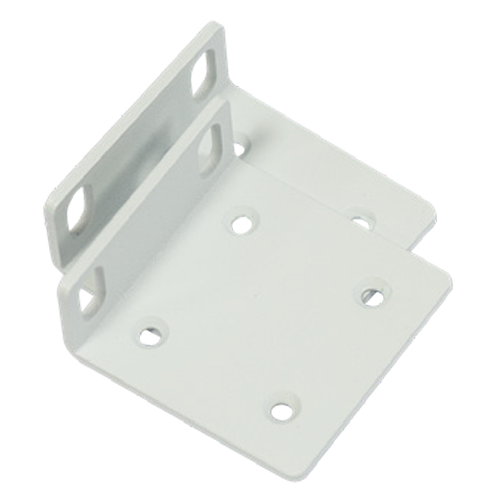

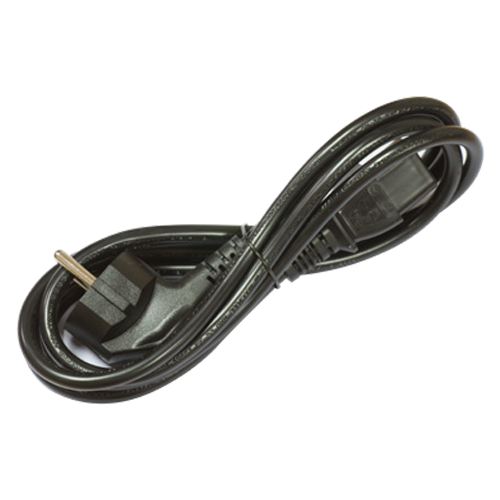

Included parts
kit (K10)
