MikroTik

Cloud Router Switch 326-24G-2S+RM

Cloud Router Switch 326-24G-2S+RM with 800 MHz CPU, 512MB RAM, 24xGigabit LAN, 2xSFP+ cages, RouterOS L5 or SwitchOS (dual boot), 1U rackmount case, PSU


Price

SGD 359.00

SKU

MTIK-CRS326-24G-2S+RM

Buy this product from


We are announcing a special version of the CSS326-24G-2S+RM switch, with added RouterOS as a second boot option, the new CRS326-24G-2S+RM.

This is a SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!

The “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

Features

  • Non-blocking Layer 2 switching capacity
  • 16K host table
  • IEEE 802.1Q VLAN
  • Supports up to 4K VLANs
  • Port isolation
  • Port security
  • Broadcast storm control
  • Port mirroring of ingress/egress traffic
  • Rapid Spanning Tree Protocol
  • Access Control List
  • MikroTik neighbor discovery
  • SNMP v1
  • Web-based GUI
Specifications
Product code CRS326-24G-2S+RM
CPU 98DX3236A1 800 MHz
RAM 512 MB
Storage type Flash, 16 MB
Switch chip model 98DX3236A1
10/100/1000 Ethernet ports 24
SFP+ cages 2
Operating system SwOS /RouterOS (Dual boot)
Supported input voltage 9 - 30 V (jack or passive PoE)
Dimensions 443 x 144 x 44 mm
Operating temperature -40°C .. +60°C tested
Max power consumption 24 W
Serial port RJ45
Included parts

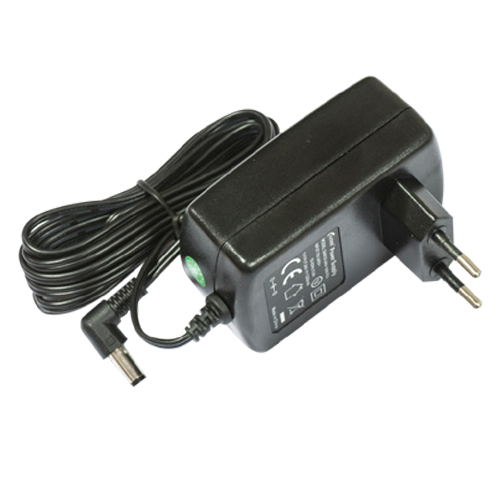

24 V 1.2 A power adapter

24 V 1.2 A
power adapter

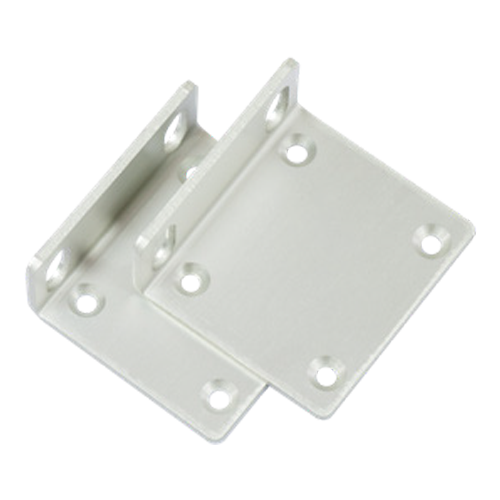

Rack ears

Rack ears

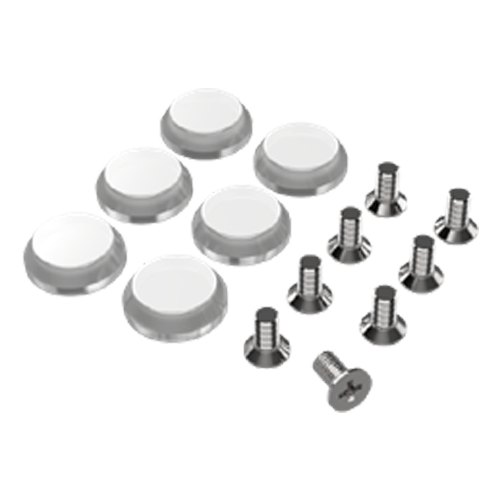

Screw set

Screw set
