Cloud Router Switch 326-24G-2S+IN
Cloud Router Switch 326-24G-2S+IN with 800 MHz CPU, 512MB RAM, 24xGigabit LAN, 2xSFP+ cages, RouterOS L5 or SwitchOS (dual boot), desktop case, PSU
A home network setup doesn’t have to be a compromise. This compact and quiet switch is packing some serious server room grade features: a pair of 10G SFP+ cages, 512 MB of RAM, 24 Gigabit Ethernet ports and a sufficient built-in CPU that can handle basic home user needs such as firewall, NAT and even some VPN. And it is extremely affordable – we are keeping the price on par with the previous generation desktop switches!
With CRS326-24G-2S+IN your home network setup can reach a truly professional level!
Like many other MikroTik switches, CRS326-24G-2S+IN offers the dual boot option that allows you to use either the lightweight SwOS or the advanced RouterOS. The compact and quiet fanless desktop case makes this switch the perfect addition to the best home setups. And it is very easy to transport! But make no mistake – this small switch has all the power and features of its bigger rackmount analogue – the CRS326-24G-2S+RM, nothing has been removed!
CRS326-24G-2S+IN provides all the basic functionality for a managed switch, and even more: port to-port forwarding, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limitation and even adjust some MAC and IP header fields. SFP+ cage supports both 1.25G SFP and 10G SFP+ modules.
Specifications
| Product code | CRS326-24G-2S+IN |
|---|---|
| CPU | 98DX3236 800 MHz |
| CPU core count | 1 |
| Size of RAM | 512 MB |
| RAM type | DDR3 |
| Storage | 16 MB, flash |
| Number of 1G Ethernet ports | 24 |
| Number of 10G SFP+ ports | 2 |
| Operating system | SwOS / RouterOS (Dual boot) |
| License level | 5 |
| Supported input voltage | 10 - 30 V (DC jack); 10 - 30 V (PoE-in) |
| Number of DC inputs | 2 (DC jack, PoE-in) |
| Dimensions | 285 x 144 x 44 mm |
| Operating temperature | -40°C to +60°C tested |
| Max power consumption | 21 W |
Switching test results
| CRS326-24G-2S+IN | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 3,576.1 | 43,427.8 | 10,338.3 | 42,345.9 | 65,476.2 | 33,523.8 |
| Switching | Non blocking Layer 2 capacity | 3,576.1 | 86,855.7 | 10,338.3 | 84,691.7 | 65,476.2 | 67,047.6 |
| Switching | Non blocking Layer 1 throughput | 3,576.1 | 44,000.0 | 10,338.3 | 44,000.0 | 65,476.2 | 44,000.0 |
| Switching | Non blocking Layer 1 capacity | 3,576.1 | 88,000.0 | 10,338.3 | 88,000.0 | 65,476.2 | 88,000.0 |
Ethernet test results *
| CRS326-24G-2S+IN | 98DX3236 all port test | ||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 104,3 | 1266.6 | 273,5 | 1120.3 | 449 | 229.9 |
| Bridging | 25 bridge filter rules | 104 | 1263.0 | 104,6 | 428.4 | 104,5 | 53.5 |
| Routing | none (fast path) | 104,3 | 1266.6 | 273,9 | 1121.9 | 343,5 | 175.9 |
| Routing | 25 simple queues | 104,3 | 1266.6 | 136,9 | 560.7 | 137,4 | 70.3 |
| Routing | 25 ip filter rules | 64,8 | 786.9 | 65,9 | 269.9 | 65,8 | 33.7 |
Included parts

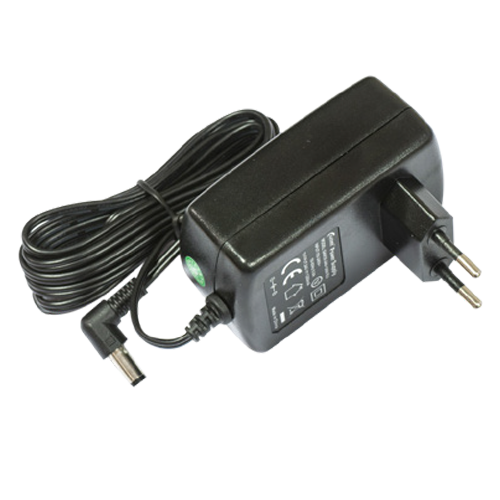

power adapter
