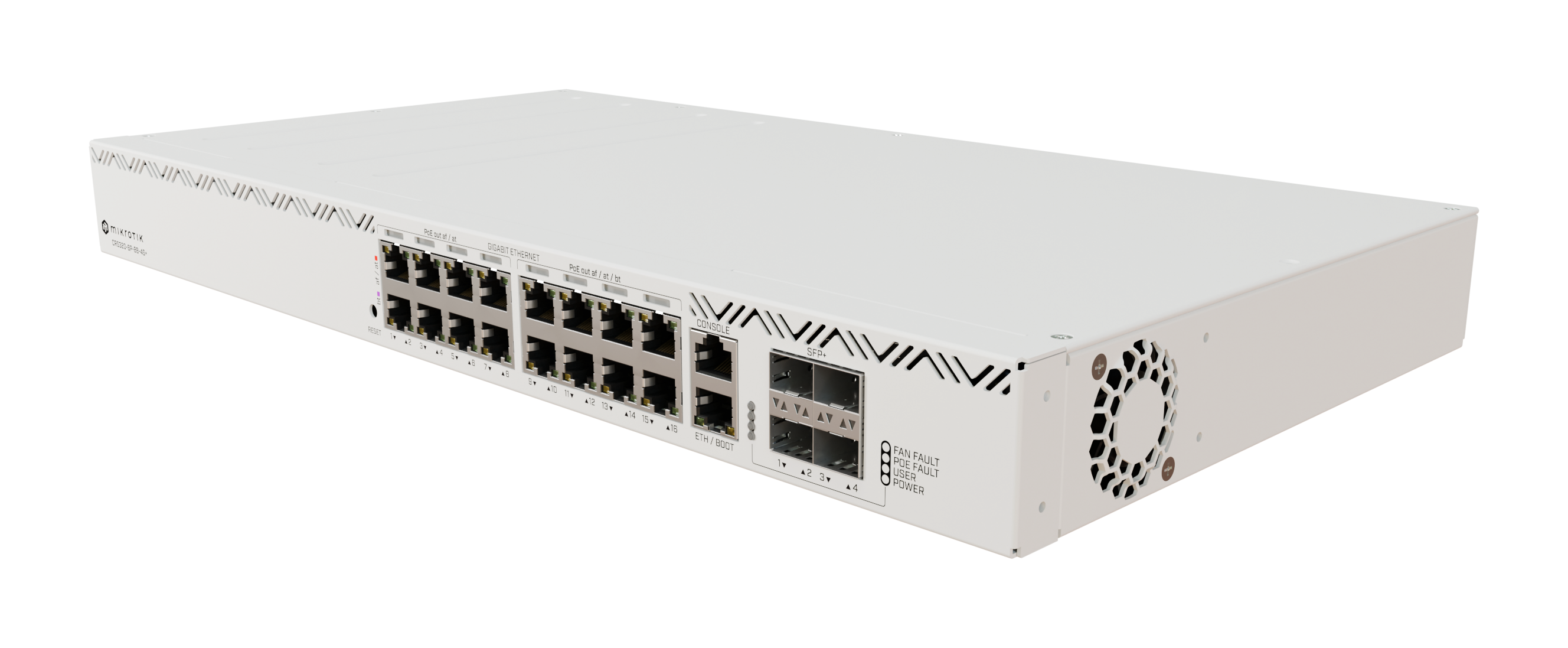

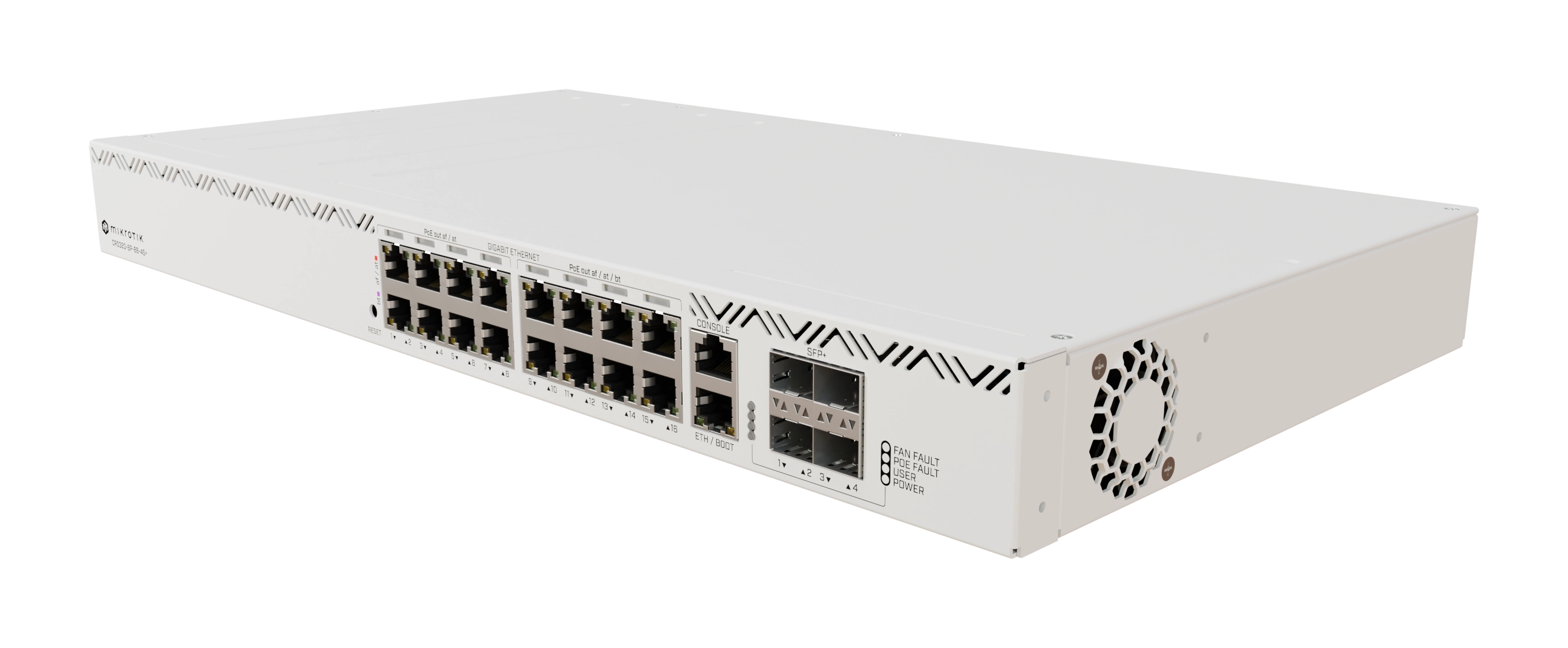

Cloud Router Switch 320-8P-8B-4S+RM
Cloud Router Switch 320-8P-8B-4S+RM with dual-core 800 MHz CPU, 256 MB RAM, 98DX226S switch chip, 17 x Gigabit Eth ports (8 x 802.3af/at, 8 x 802.3bt PoE-out), 4 x 10G SFP+ ports, RouterOS L5, 1U rackmount enclosure, 600W PSU

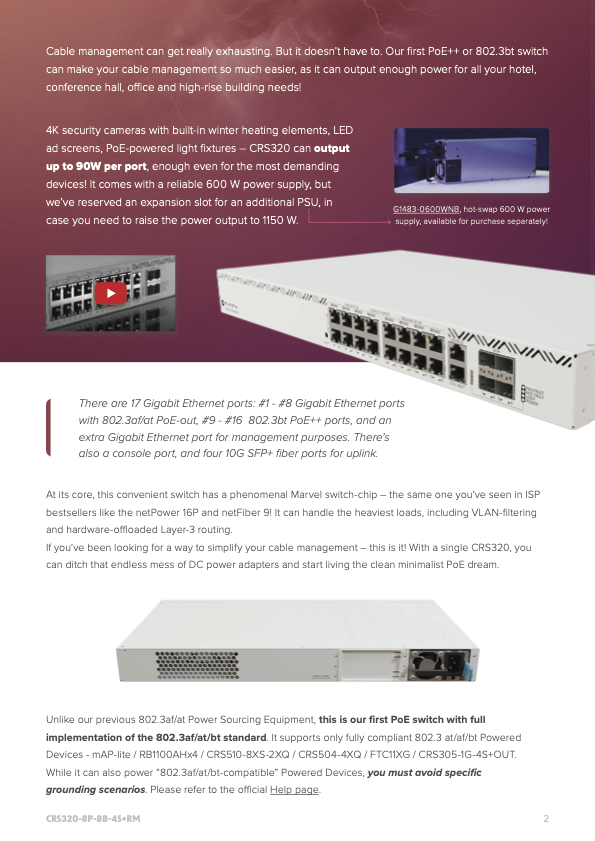

Cable management can get really exhausting. But it doesn’t have to. Our first PoE++ or 802.3bt switch can make your cable management so much easier, as it can output enough power for all your hotel, conference hall, office and high-rise building needs!

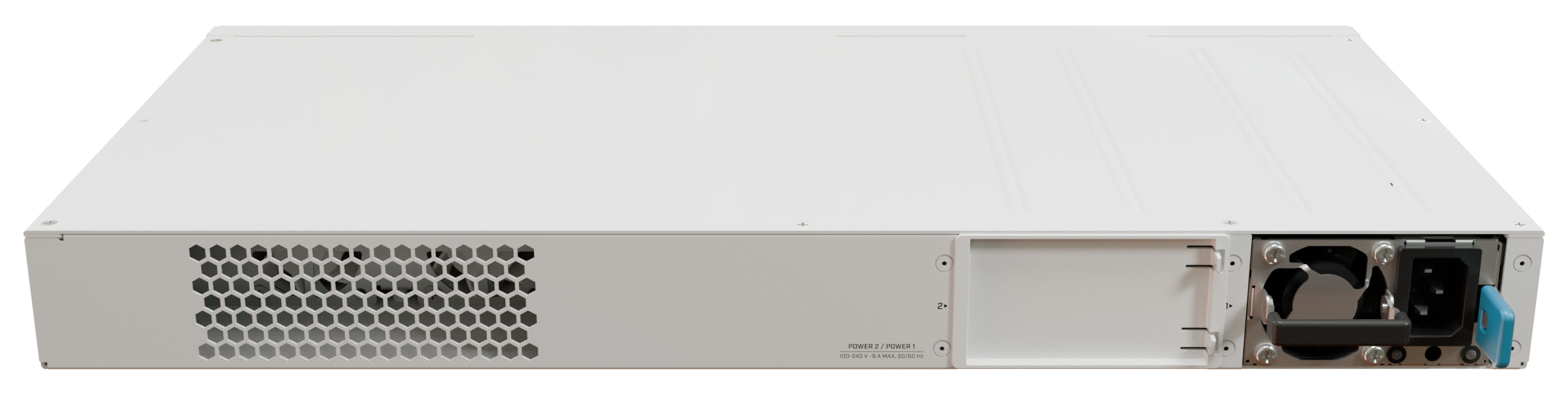

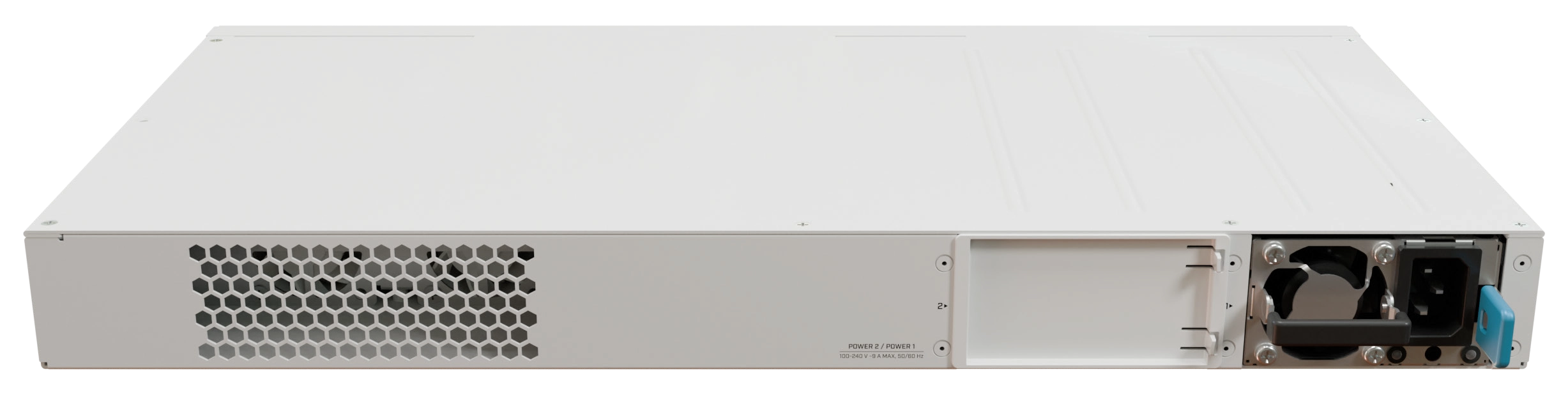

4K security cameras with built-in winter heating elements, LED ad screens, PoE-powered light fixtures – CRS320 can output up to 90W per port, enough even for the most demanding devices! It comes with a reliable 600 W power supply, but we’ve reserved an expansion slot for an additional PSU, in case you need to raise the power output to 1150 W.

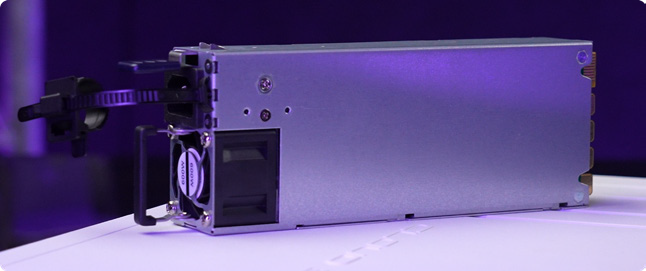

G1483-0600WNB, hot-swap 600 W power supply, available for purchase separately!
The amazing Marvell 98DX226S switch-chip and integrated dual-core ARM CPU can handle the full potential of RouterOS v7. Run VLANs, Jumbo frames, link aggregation, ACL rules, and so much more! You can even do some hardware offloaded Layer-3 routing.
At its core, this convenient switch has a phenomenal Marvel switch-chip – the same one you’ve seen in ISP bestsellers like the netPower 16P and netFiber 9! It can handle the heaviest loads, including VLAN-filtering and hardware-offloaded Layer-3 routing.
If you’ve been looking for a way to simplify your cable management – this is it! With a single CRS320, you can ditch that endless mess of DC power adapters and start living the clean minimalist PoE dream.
Unlike our previous 802.3af/at Power Sourcing Equipment, this is our first PoE switch with full implementation of the 802.3af/at/bt standard. It supports only fully compliant 802.3 at/af/bt Powered Devices - mAP-lite / RB1100AHx4 / CRS510-8XS-2XQ / CRS504-4XQ / FTC11XG / CRS305-1G-4S+OUT.
Devices - mAP-lite / RB1100AHx4 / CRS510-8XS-2XQ / CRS504-4XQ / FTC11XG / CRS305-1G-4S+OUT. While it can also power “802.3af/at/bt-compatible” Powered Devices, you must avoid specific grounding scenarios. Please refer to the official Help page.
FEATURES
(802.3bt)
PER PORT
SLOT
Specifications
| Product code | CRS320-8P-8B-4S+RM | |
|---|---|---|
| CPU | Dual-Core 800 MHz | |
| CPU architecture | ARM 32bit | |
| Size of RAM | 256 MB | |
| RAM type | DDR3 | |
| Storage | 32 MB, Flash | |
| Number of 1G Ethernet ports | 17 (Support 10M / 100M / 1G speeds) | |
| Number of 10G SFP+ ports | 4 (Support 1G / 2.5G / 10G speeds, depending on module) | |
| Switch chip model | 98DX226S | |
| Operating system | RouterOS v7 only, License level 5 | |
| Dimensions | 444 x 235 x 44 mm | |
| Operating temperature | -10°C to +50°C | |
Powering
| Number of AC inputs | 1 |
|---|---|
| Nominal current | 10.35 A |
| Max current | 11 A |
| AC input range | 100-240 V |
| Frequency | 50-60 Hz |
| PoE-out | 802.3af/at/bt |
| Smart PoE | Controller |
| PoE-out ports | Ether1-Ether8 (af/at), Ether9-Ether16 (bt) |
| Max out per port output (input > 30 V) | 560 (af/at) / 1667 (bt) mA |
| Max total out | 17.82 A |
| Total output power | 963 W |
| Total output current | 17.82 A |
| Max power consumption (without attachments) | 36 W |
| Max power consumption | 600 W (1150 W with additional PSU) |

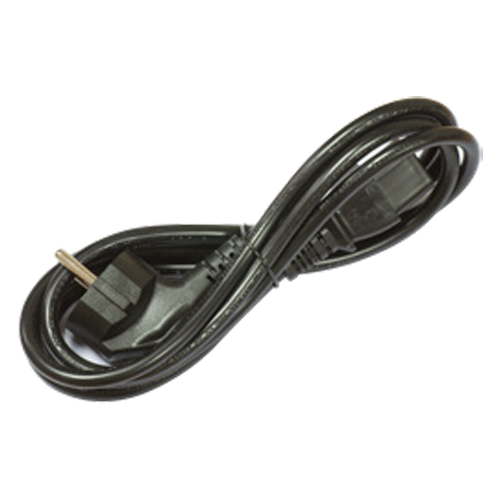

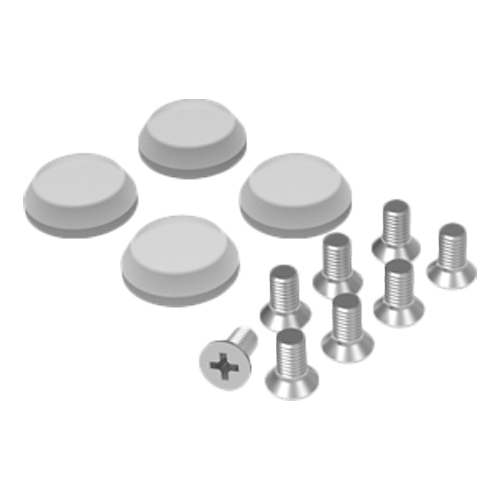

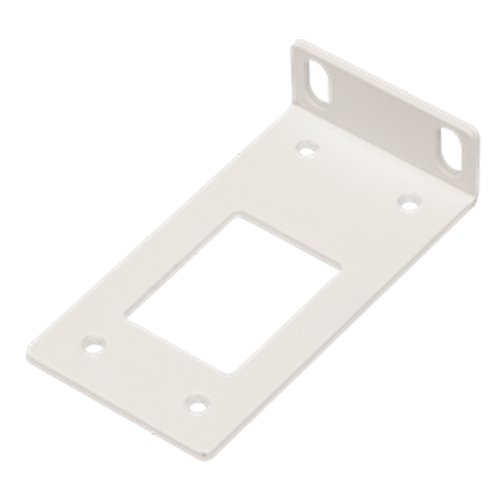

Included parts
