Cloud Core Router 2216-1G-12XS-2XQ
Cloud Core Router 2216-1G-12XS-2XQ with Amazon Annapurna Labs Alpine v3 AL73400 CPU (16-cores, 2GHz per core) and Marvell Prestera Aldrin2 switch-chip, 16GB RAM, 2x100G QSFP cages, 14x25G SFP28 cages, 1xGbit LAN, 2xM.2 SATA slots, RouterOS L6, 1U rackmount case, Dual-redundant hot-swap PSU's

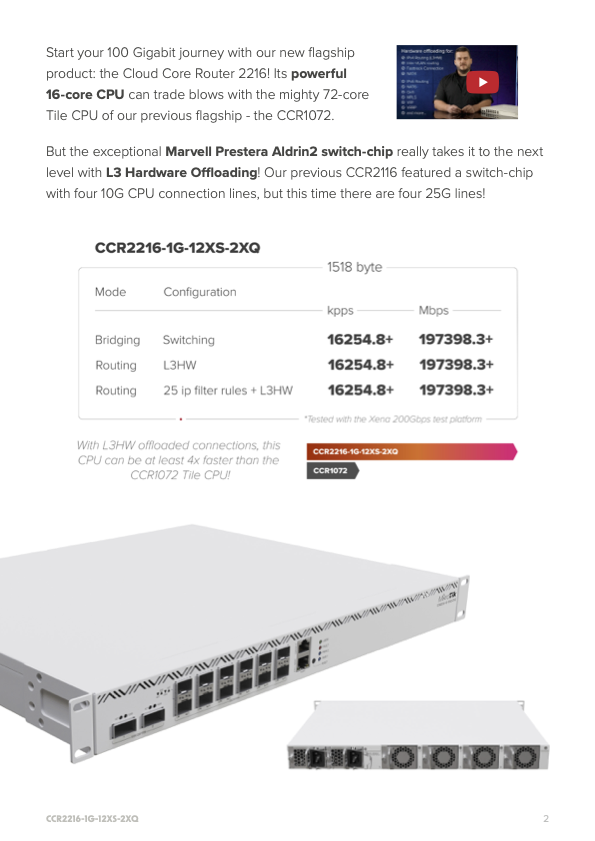

Start your 100 Gigabit journey with our new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072.
But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading! Our previous CCR2116 featured a switch-chip with four 10G CPU connection lines, but this time there are four 25G lines!
| Mode | Configuration | ||
|---|---|---|---|
|
|
kpps
|
Mpbs
|
|
| Bridging | Switching | 16254.8+ | 197398.3+ |
| Routing | L3HW | 16254.8+ | 197398.3+ |
| Routing | 25 ip filter rules + L3HW | 16254.8+ | 197398.3+ |

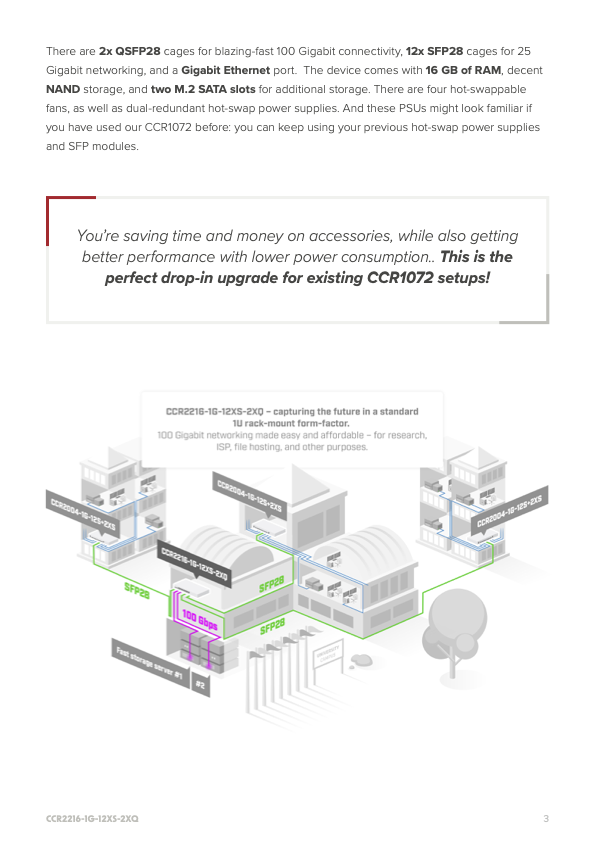

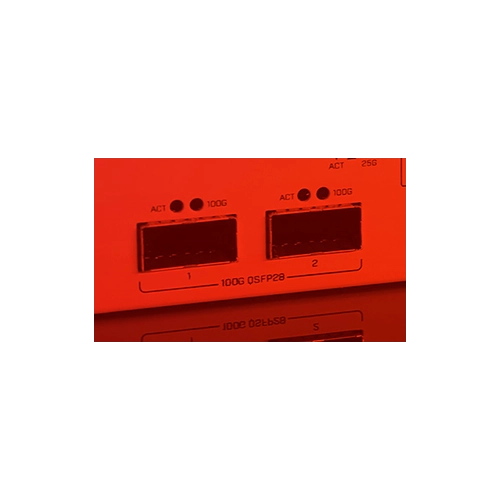

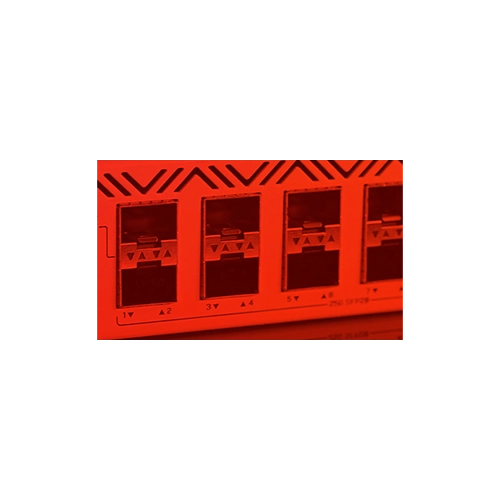

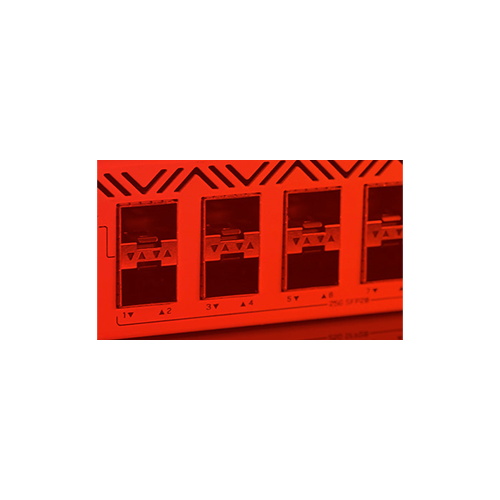

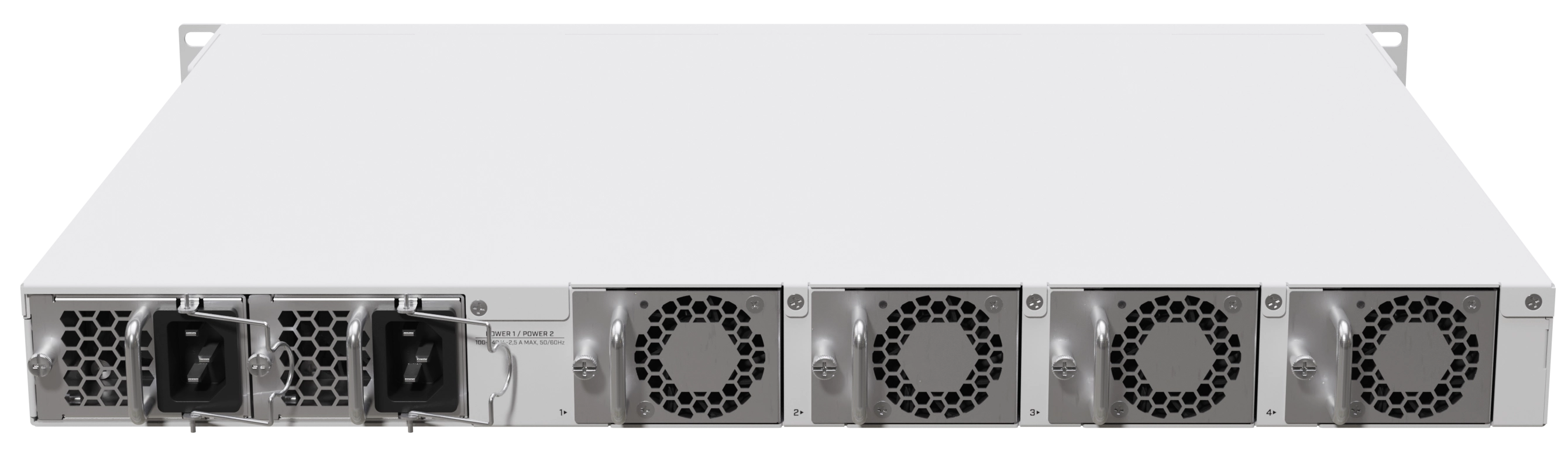

There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.
You’re saving time and money on accessories, while also getting better performance with lower power consumption.. This is the perfect drop-in upgrade for existing CCR1072 setups!
FEATURES
PER SECOND WITH
L3HW OFFLOADING!
ANNAPURNA LABS
ARMV8 16-CORE CPU
ALDRIN2 DX8525
QSFP28
HOT-SWAP 150W PSU’S
CONSUMPTION THAN THE
PREVIOUS FLAGSHIP
Specifications
| Product code | CCR2216-1G-12XS-2XQ | |
|---|---|---|
| CPU | AL73400 2 GHz | |
| CPU architecture | ARM 64bit | |
| CPU core count | 16 | |
| Size of RAM | 16 GB | |
| RAM type | DDR4 | |
| Storage | 128 MB, NAND | |
| Number of 1G Ethernet ports | 1 | |
| Number of 25G SFP28 ports | 12 | |
| Number of 100G QSFP28 ports | 2 | |
| Number of M.2 slots | 2 | |
| Operating system | RouterOS v7 only, License level 6 | |
| Switch chip model | 98DX8525 | |
| Switch connection to CPU | 4x25 Gbps | |
| Dimensions | 443 x 367 x 44 mm | |
| Operating temperature | -20°C to +60°C | |
Powering
| Number of AC inputs | 2 |
|---|---|
| AC input range | 100-240 V |
| Power adapter nominal voltage | 12 V |
| Power adapter nominal current | 12.5 A |
| Max power consumption (without attachments) | 80 W |
| Max power consumption | 128 W |

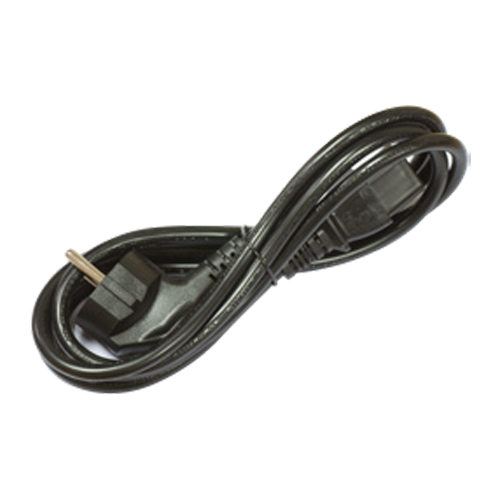

Included parts

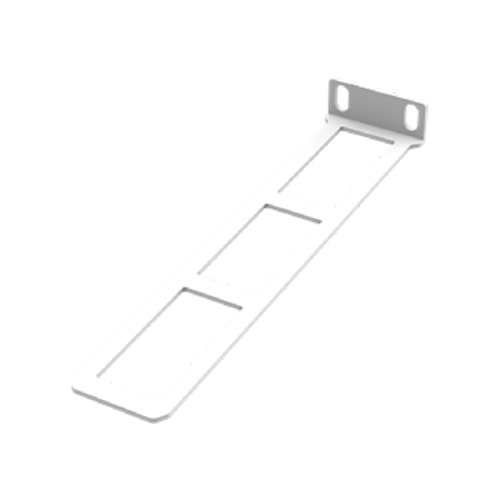

support ears

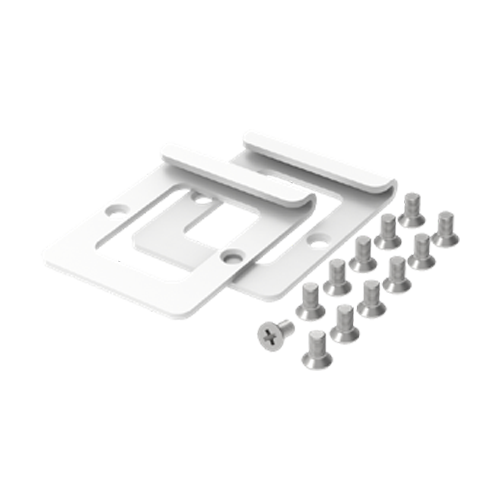

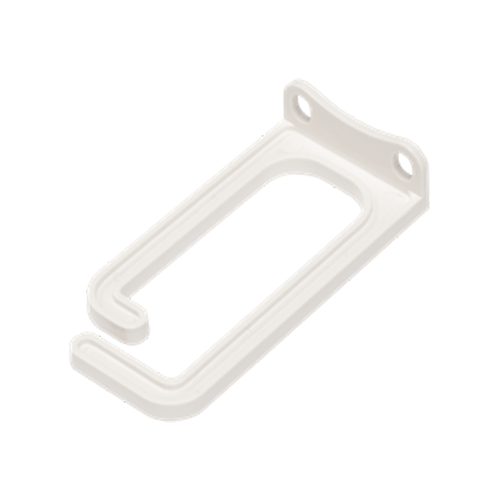

bracket
