Cloud Core Router 1072-1G-8S+
Cloud Core Router 1072-1G-8S+ with Tilera Tile-Gx72 CPU (72-cores, 1GHz per core), 16GB RAM, 8xSFP+ cage, 1xGbit LAN, RouterOS L6, 1U rackmount case, two redundant hot plug PSU, LCD panel
Our new flagship router, the CCR1072, is powered by a Tilera 72 core CPU, each core is clocked at 1GHz, and to fully utilise this power, the CCR1072 is equipped with eight independently connected 10G SFP+ ports.
Thanks to the unique 72 core processor and ports that are directly connected to the CPU, CCR1072 is capable of over 120 million packets per second throughput.

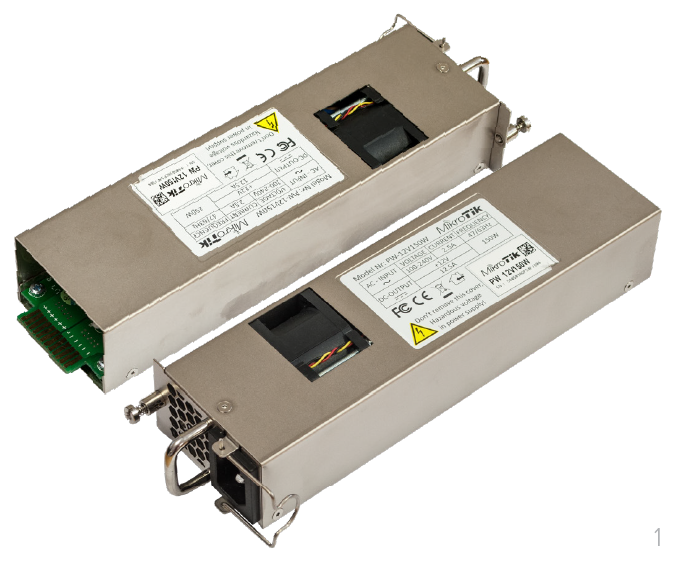

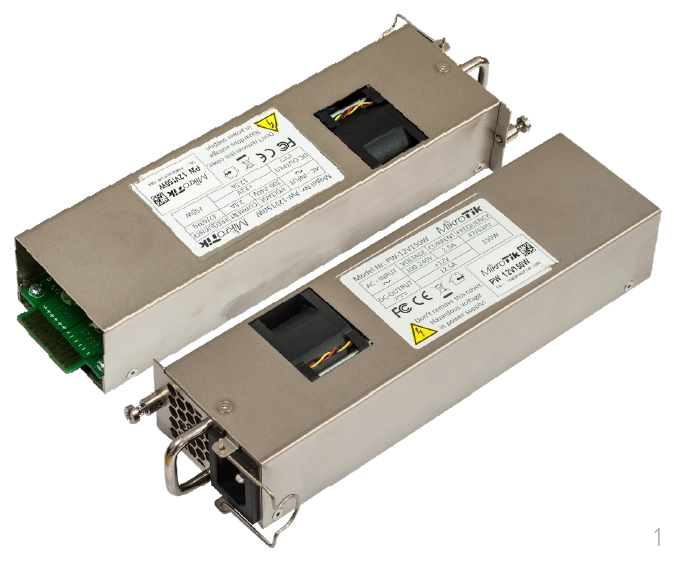

The unit comes equipped with two removable (hot plug) power supplies for redundancy, smart card slot, eight SFP+ ports and 16GB of built in ECC RAM.
The CCR1072 also has two built-in M.2 slots, microSD and 2x USB for adding storage, to use for proxy cache, user manager and other features. The M.2 slots accept 80mm Key-M x4 PCIe 2.0 modules.
FEATURES
connected to CPU
packet throughput
architecture
Specifications
| Product Code | CCR1072-1G-8S+ |
|---|---|
| CPU nominal frequency | 1 GHz |
| CPU core count | 72 |
| Size of RAM | 16 GB |
| Storage | 128 MB Onboard NAND, also see expansion |
| 10/100/1000 Ethernet ports | 1 |

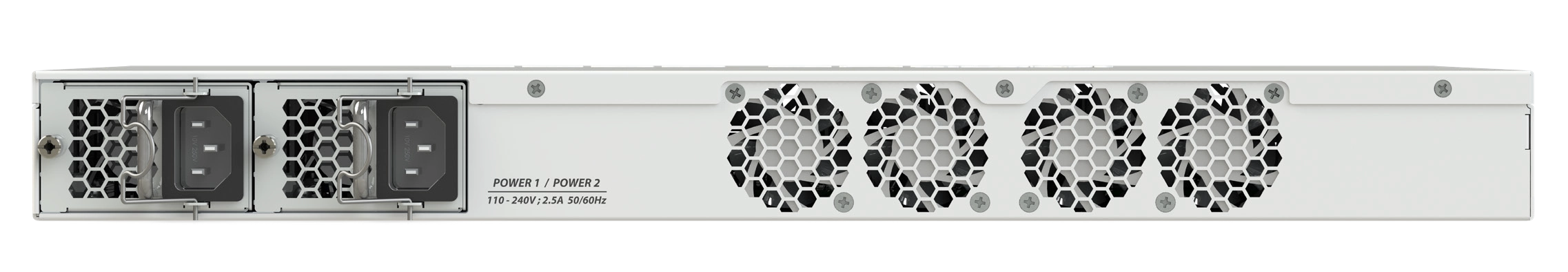

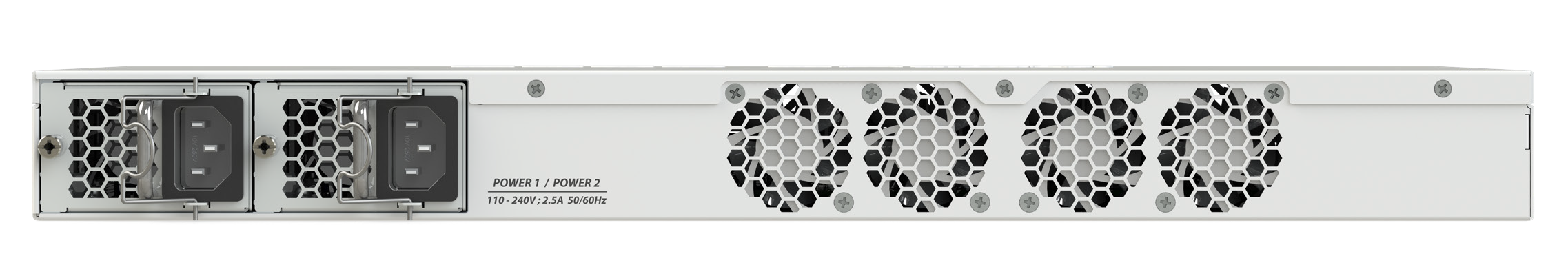

| Power supply | 2x IEC C14 standard connectors 110/220V (Two redundant PSU) |
| Supported input voltage | 12 V |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Current monitor | Yes |
| Dimensions | 443 x 315 x 44 mm, weight: 3.8 kg, weight with packaging: 5.125 kg |
| License level | 6 |
| Operating System | RouterOS |
| CPU | Tilera Tile-Gx72 CPU |
| Max Power consumption | 125 W |
| Display | Color LCD, touchscreen |
| SFP | 8x 10G Ethernet SFP+ cages (Mini-GBIC; SFP module not included), DDMI support |
| Expansion | 1x microUSB 2.0, 1x regular USB 2.0, full size Smart Card slot, microSD slot, 2x M.2 slots with x4 PCIE 2.0, Key-M, module size support: 2242,2260,2280 |
| Serial port | RJ45 |
Performance test results
| CCR1072-1G-8S+ | Tile 72 Core (1200Mhz, DDR1333) Max possible throughput | ||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | ||||||
| 1518 byte | 512 byte | 64 byte | |||||
| Mbps | kpps | Mbps | kpps | Mbps | kpps | ||
| Bridging | none (fast path) | 78,960.3 | 6,502.0 | 76,963.8 | 18,790.0 | 60,952.4 | 119,047.6 |
| Bridging | 25 bridge filter rules | 74,448.8 | 6,130.5 | 33,557.3 | 8,192.7 | 5,293.8 | 10,339.5 |
| Routing | none (fast path) | 78,960.3 | 6,502.0 | 76,963.8 | 18,790.0 | 44,291.6 | 86,507.0 |
| Routing | 25 simple queues | 78,960.3 | 6,502.0 | 50,669.2 | 12,370.4 | 6,898.8 | 13,474.2 |
| Routing | 25 ip filter rules | 56,683.3 | 4,667.6 | 24,515.0 | 5,985.1 | 3,007.4 | 5,873.8 |

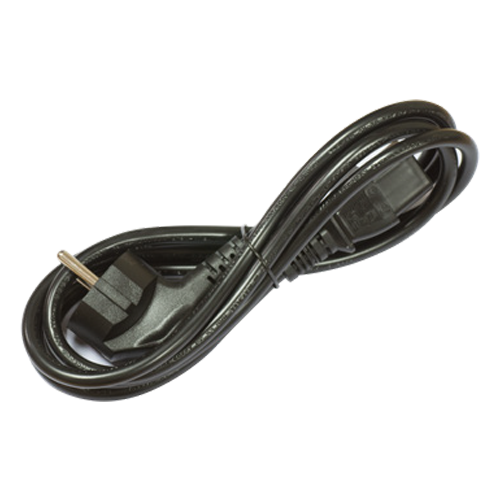

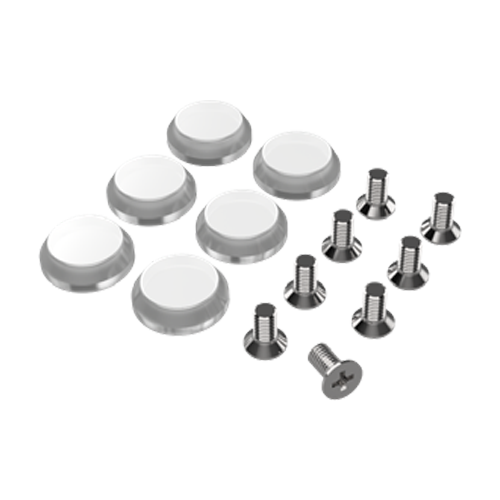

Included parts
