MikroTik
Cloud Core Router 1036-12G-4S Extra Memory (Discontinued, Final Stock)
1U rackmount, 12x Gigabit Ethernet, 4xSFP cages, LCD, 36 cores x 1.2GHz CPU, 8GB RAM, 24 mpps fastpath, Up to 16Gbit/s throughput, RouterOS L6, Dual PSU
CCR1036-12G-4S is an industrial grade router with cutting edge 36 core CPU. If your network requires to operate with millions of packets per second - Cloud Core Router with 36 cores is your best choice.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit Ethernet ports, a serial console cable and a USB port.
FEATURES
36 core CPU
1.2 GHz clock per core
12 Mbytes total on-chip cache
State of the art TILE GX architecture
28.8 mpps fastpath forwarding (wire speed for all ports)
Up to 16 Gbit/s throughput
1U rackmount case
12 Gigabit Ethernet ports
4 SFP ports
Color touchscreen LCD
Ports directly connected to CPU
Specifications
| Product code | CCR1036-12G-4S-EM |
|---|---|
| CPU | Tilera Tile-Gx36 CPU, 36 cores, 1.2 GHz per core |
| Size of RAM | 8 GB |
| Storage | 1 GB NAND, 512 KB flash |
| 10/100/1000 Ethernet ports | 12 |
| Supported input voltage | AC power supply 100 - 240 V |
| 1G SFP ports | 4 |
| Redundant supply | Yes |
| USB port | USB type A |
| Serial port | RJ45 |
| Dimensions | 443 x 193 x 44 mm |
| Operating temperature | -20°C .. +60°C |
| Operating system | RouterOS, License level 6 |
| Max power consumption | 60 W |

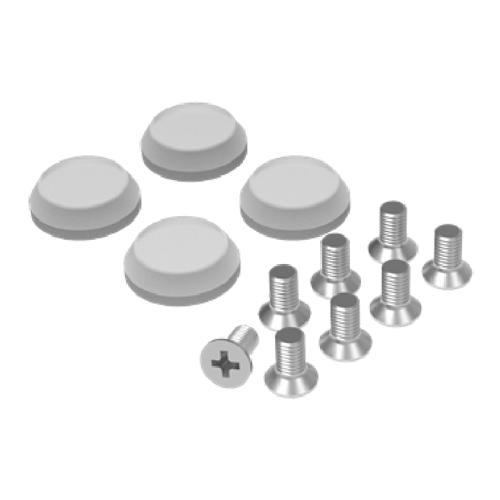

Included parts
