MikroTik

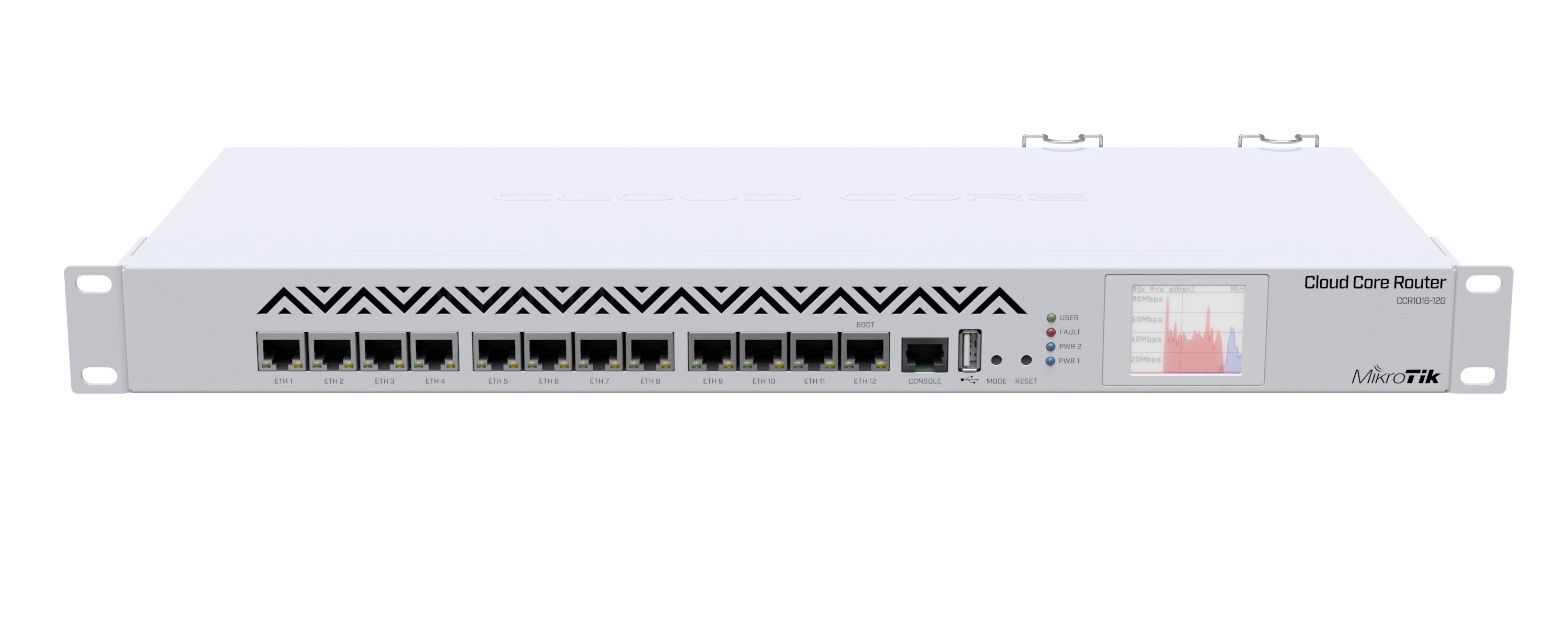

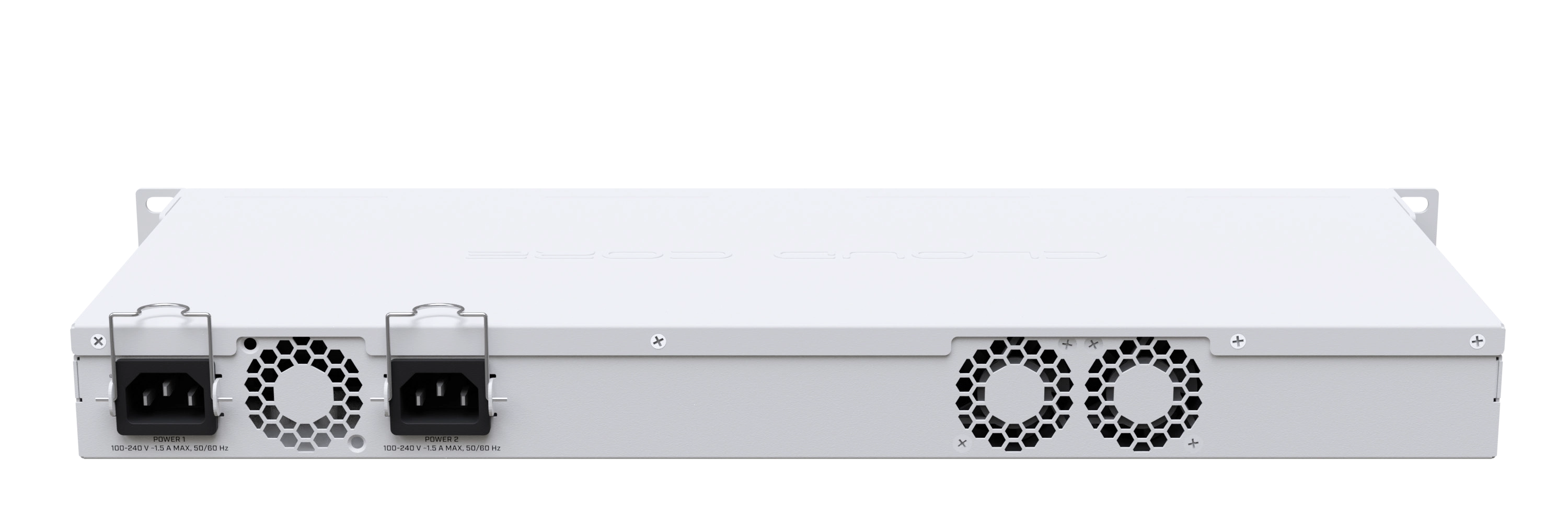

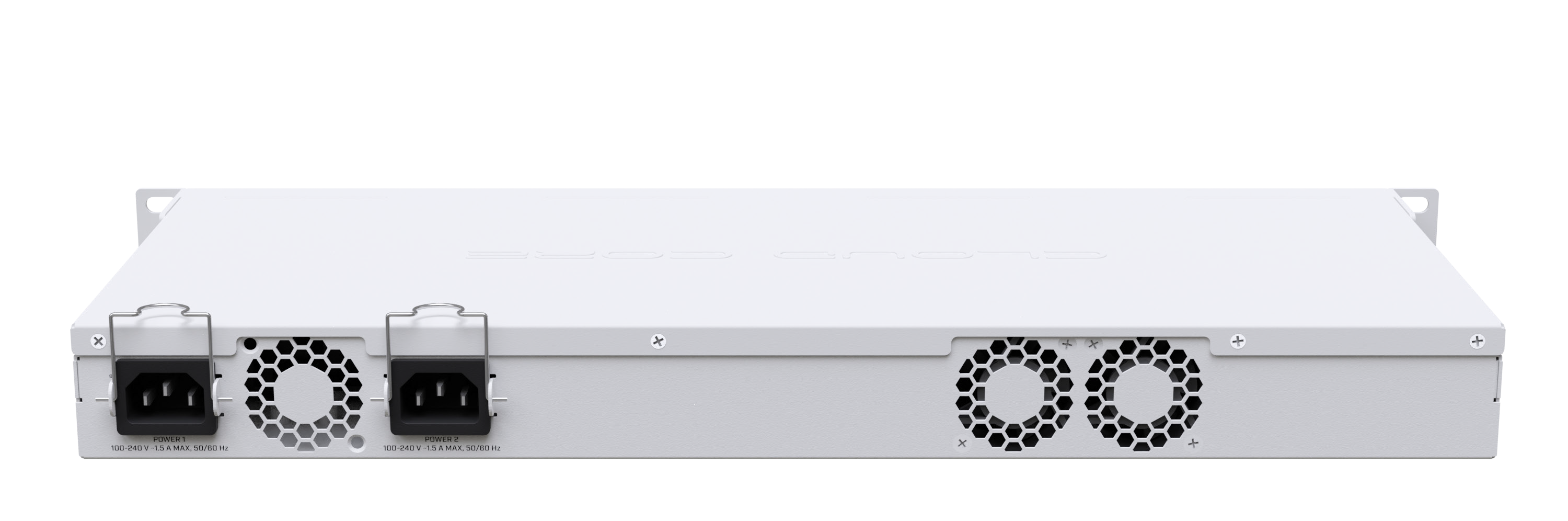

Cloud Core Router 1016-12G (Discontinued)
1U rackmount, 12x Gigabit Ethernet, LCD, 16 cores x 1.2GHz CPU, 2GB RAM, 17.8mpps fastpath, Up to 12Gbit/s throughput, RouterOS L6, Dual PSU
CCR1016-12G is an industrial grade router with cutting edge 16 core CPU. If your network requires to operate with millions of packets per second - Cloud Core Router is your best choice. Unit is equipped with 12 Gigabit Ethernet ports and a color touchscreen LCD.
FEATURES
16 core networking CPU
1.2 GHz clock per core
12 Mbytes total on-chip cache
State of the art TILE GX architecture
Ports directly connected to CPU
1U rackmount case
12 Gigabit Ethernet ports
Color touchscreen LCD display
Up to 17.8 mpps throughput in fastpath mode (wire speed)
Up to 12 Gbps throughput with RouterOS queue/firewall configuration
Specifications
| Product code | CCR1016-12G |
|---|---|
| CPU | Tilera Tile-Gx16 CPU, 16 cores, 1.2 GHz per core |
| Size of RAM | 2 GB |
| Storage | 512 MB NAND, 512 KB flash |
| 10/100/1000 Ethernet ports | 12 |
| Supported input voltage | AC power supply 100 - 240 V |
| Redundant supply | Yes |
| USB port | USB type A |
| Serial port | RJ45 |
| Dimensions | 443 x 193 x 44 mm |
| Operating temperature | -20°C .. +60°C |
| Operating system | RouterOS, License level 6 |
| Max power consumption |

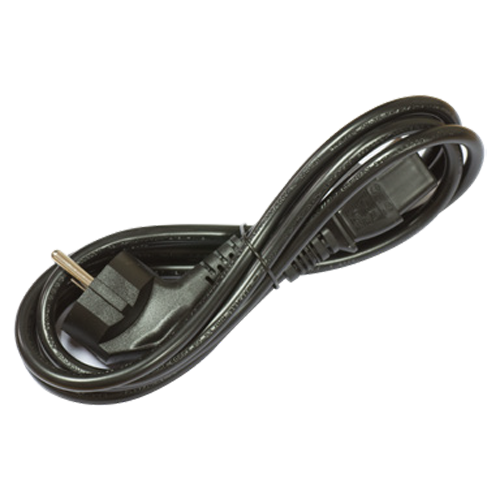

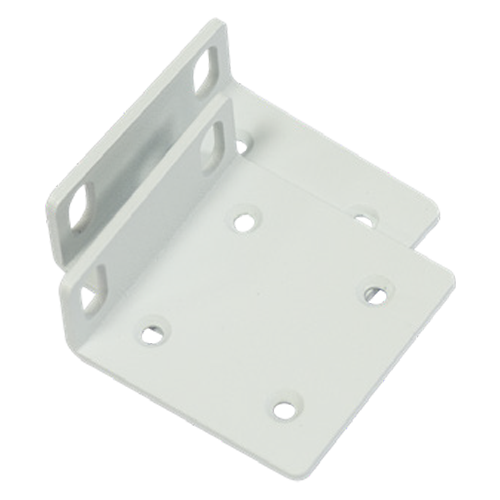

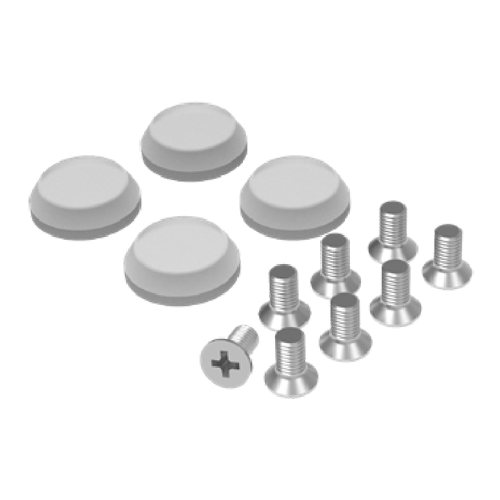

Included parts
