MikroTik

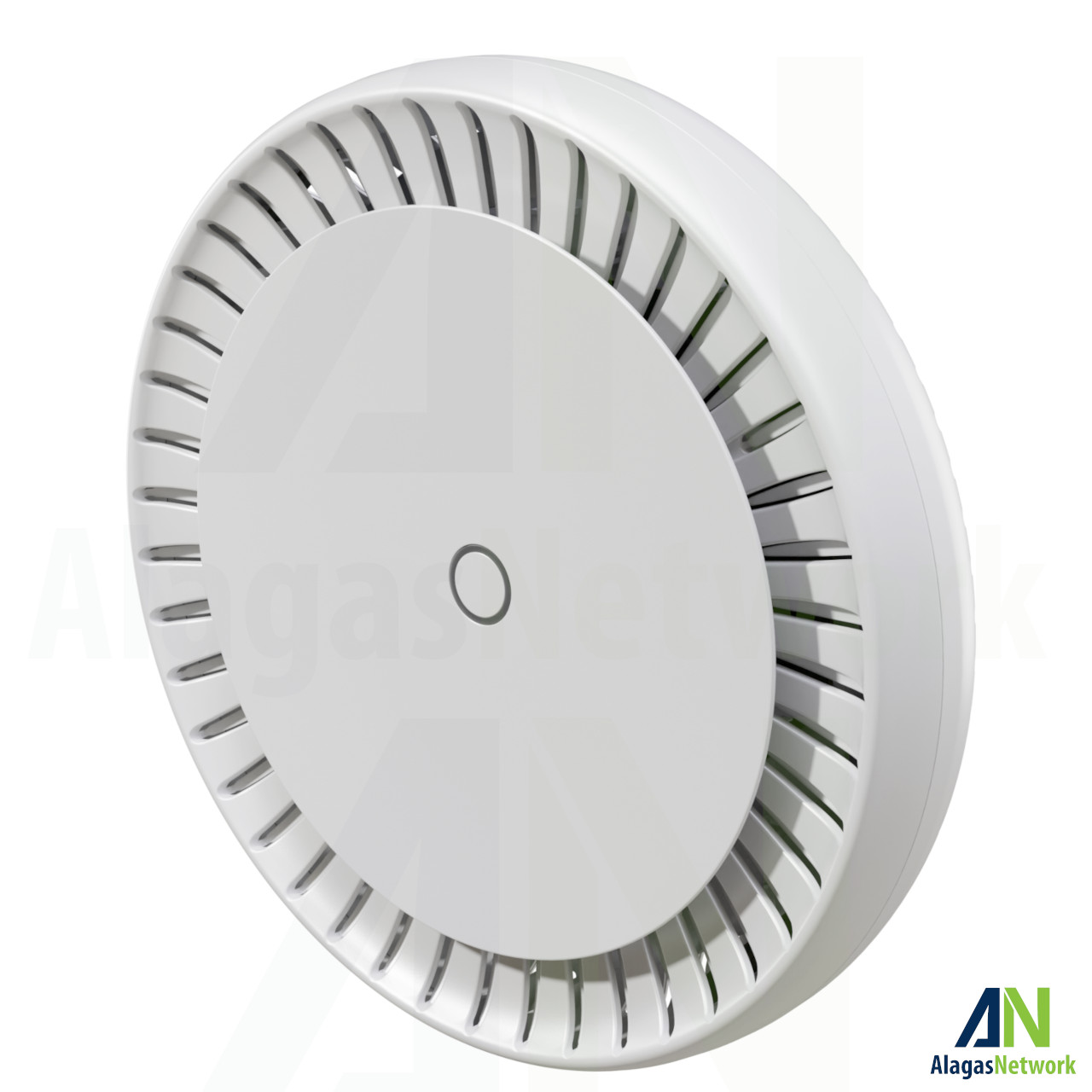

cAP ax

cAP ax with Quad core IPQ-6010 1.8 GHz CPU, 1GB RAM, 2 x Gbit LAN (one with PoE-out), built-in 2.4 GHz 802.11b/g/n/ax dual-chain wireless, built-in 5 GHz 802.11a/n/ac/ax dual-chain wireless with high-gain antenna, RouterOS L4, plastic enclosure, ceiling mount, PSU, PoE injector


Price

SGD 221.00

SKU

MTIK-cAPGi-5HaxD2HaxD

Buy this product from


When it comes to wireless network in the office, you can’t afford to cut corners and risk inhibiting your team’s performance. You need excellent coverage throughout the premises. You need a device that can handle a large number of clients. You need a reliable, flexible, cost-effective solution: the cAP ax!

Both open office and cubicle layouts usually encounter a variety of network issues: signal gets absorbed, reflected, it becomes unstable. Mirrors, tinted glass, TVs, metal file cabinets – all sorts of things can get in the way. Our solution is simple, effective, and elegant: let your access point rise above all the obstacles! In other words, a ceiling access point is a great way to prevent signal loss in large, crowded areas with many obstacles.

There is another benefit to this form-factor: cAP ax remains hidden in plain sight, attracting less unwanted attention than a smoke sensor. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing-fast wireless connection!

With the Generation6 802.11ax wireless standard, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum, if we compare it to the previous generations! But what’s more important than speed is the stability. Our latest AX devices can withstand and navigate even the toughest wireless interference scenarios, offering the most stable and uninterrupted signal to date!



cAP ax features a modern quad-core CPU running at 1.8 GHz, NAND storage, and a gigabyte of RAM. Enough to harvest the full potential of the most powerful networking software on the market – RouterOS v7! Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels – cAP ax can do it all!

Icon

Compared to the previous generation, cAP ax offers multiple enhanced authentication types: OWE, WPA3-PSK, WPA3- EAP, and 802.11r roaming.

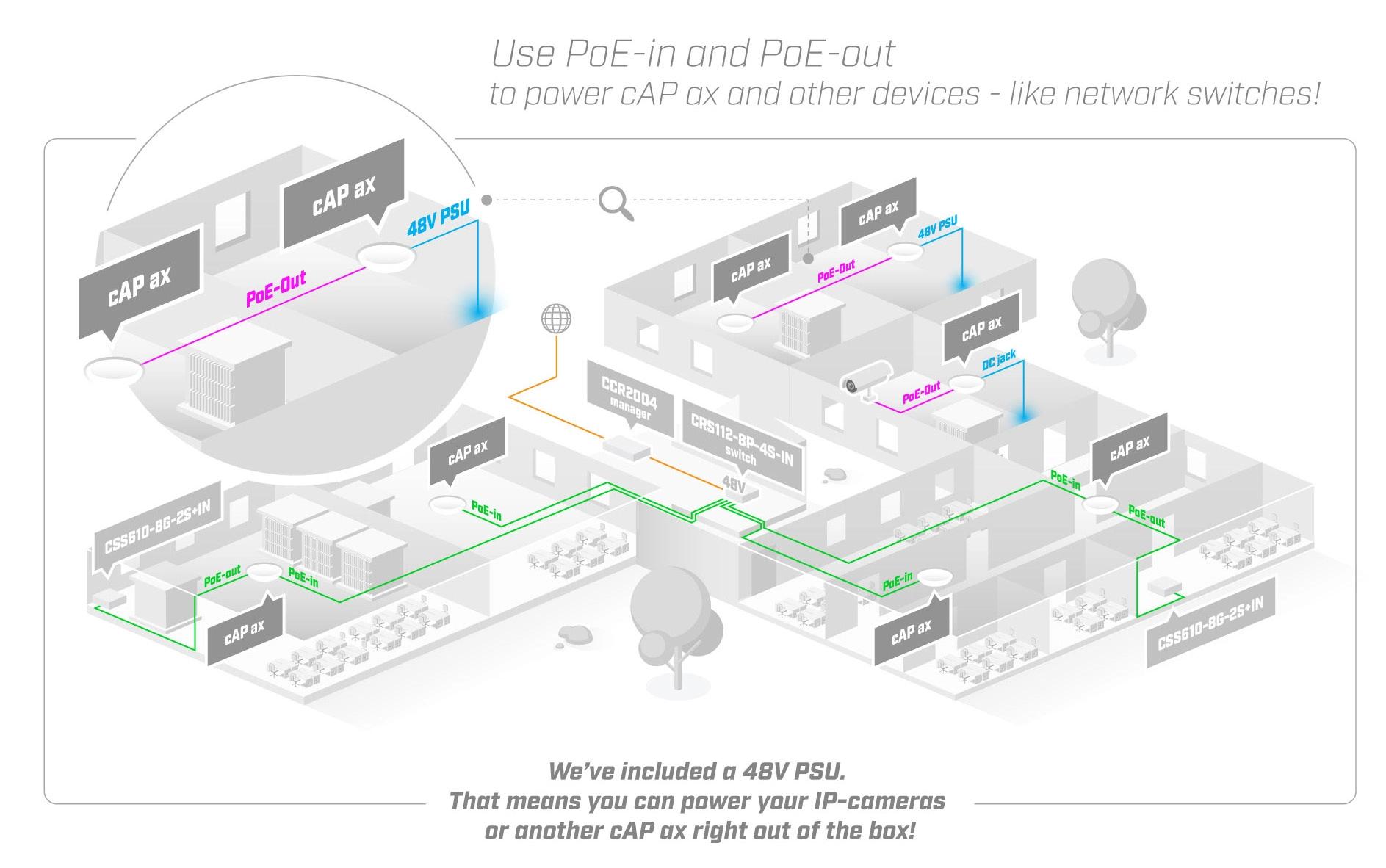

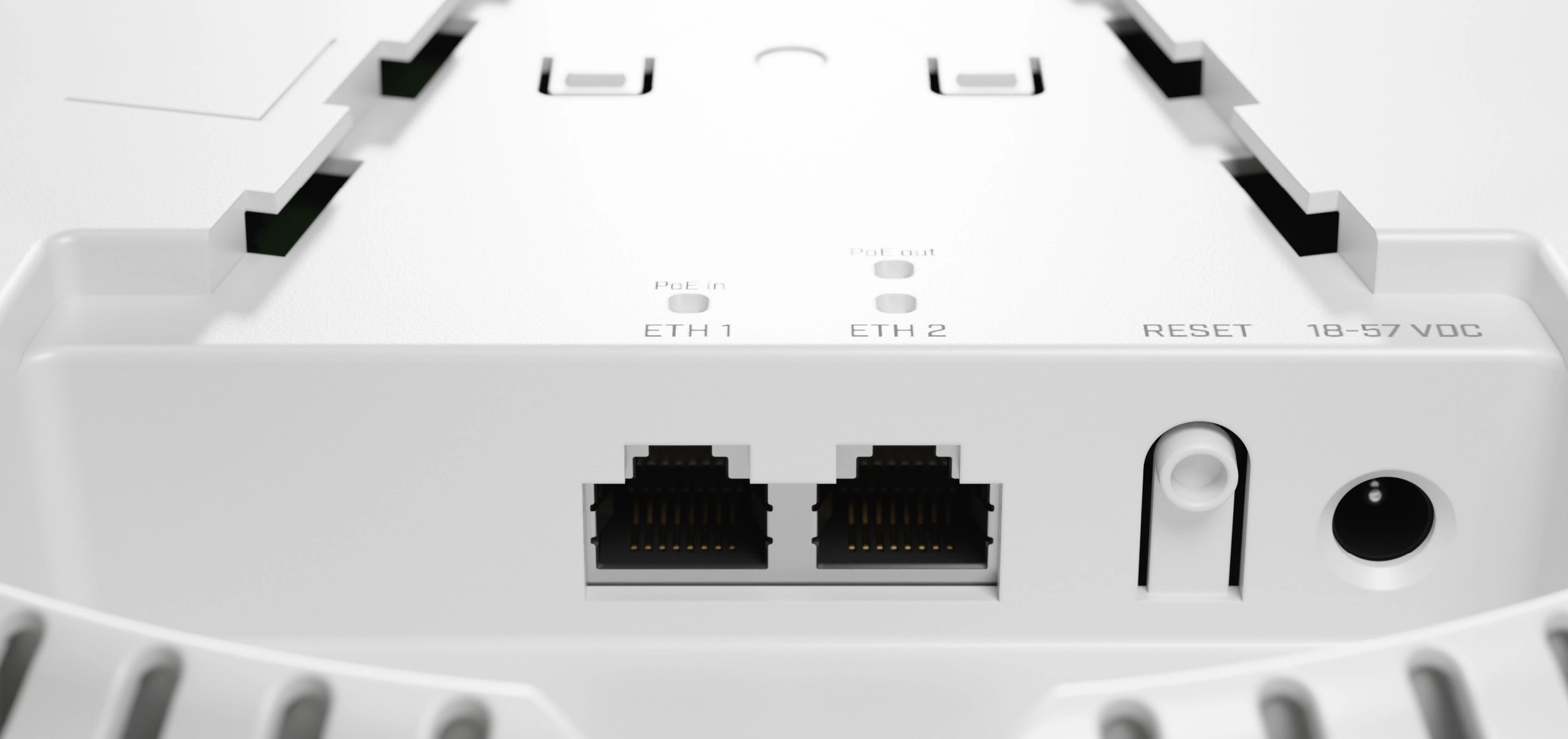

cAP ax is also a great way to make your office network installation and maintenance so much easier, as it features PoE-in and PoE-out. That’s right – you can use cAP ax to power other devices, such as network switches, CCTV cameras, or even another cAP ax! And, speaking of easy office networks... Just a few clicks in our latest wifiwave2 CAPsMAN central management system - and you’re done setting up hundreds of cAP ax devices! You can use all sorts of MikroTik devices to run CAPsMAN effortlessly, for example - your main gateway.

Flow

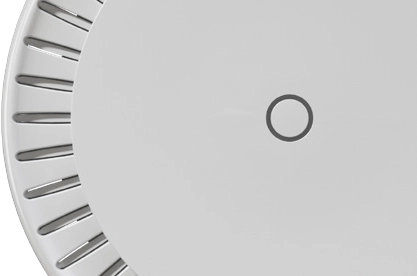

Quick cAP tip: the customizable mode button in the center will turn off cAP’s lights, but you can reconfigure it to launch any RouterOS script.

cAP ax
cAP ax


FEATURES

FAST AND RELIABLE 802.11AX WIRELESS
FAST AND RELIABLE
802.11AX WIRELESS
MODERN QUAD-CORE 1.8 GHZ CPU
MODERN QUAD-CORE
1.8 GHZ CPU
2X GIGABIT ETHERNET PORTS
2X GIGABIT ETHERNET PORTS
POE-IN & POE-OUT TO POWER OTHER DEVICES (LIKE CCTV CAMERAS!)
POE-IN & POE-OUT TO POWER OTHER
DEVICES (LIKE CCTV CAMERAS!)
1GB OF RAM
1GB OF RAM
ROUTEROS V7
ROUTEROS V7
MULTIPLE POWERING OPTIONS
MULTIPLE POWERING
OPTIONS
REMAINS HIDDEN IN PLAIN SIGHT
REMAINS HIDDEN IN
PLAIN SIGHT
MANAGE HUNDREDS OF DEVICES EASILY WITH CAPsMAN MANAGEMENT SYSTEM!
MANAGE HUNDREDS OF
DEVICES EASILY WITH CAPsMAN
MANAGEMENT SYSTEM!


GEN

6


802.11ax Wireless
Specifications
Product code cAPGi-5HaxD2HaxD
CPU Quad core IPQ-6010 1.8 GHz
Size of RAM 1 GB
RAM type DDR3L
Storage 128 MB, NAND
Number of 1G Ethernet ports 2
Wireless interface model QCN-5022 (2.4 GHz), QCN-5052 (5 GHz)
Wireless 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain
Antenna gain 5.5 dBi
Operating system RouterOS v7, License level 4
Switch chip model IPQ-6010
Dimensions 228 x 48 mm
Operating temperature -40°C to +70°C tested
Powering
PoE-in 802.3af/a
PoE-Out Passive PoE up to 57V (<30v DC jack must be used, >30V PoE-In and DC jack can be used)
PoE-Out ports Ether2, max out per port output (input < 30 V): 600 mA, max out per port output (input > 30 V): 400 mA. Over 300 mA current, please use DC jack for powering device
Number of DC inputs 2
Supported input voltage 18-57 V (DC jack) 18-57 (PoE-In)
Max power consumption (without attachments) 11 W
Max power consumption 36 W
Included parts
48 V 0.95 A power adapter

48 V 0.95 A
power adapter
Gigabit PoE injector

Gigabit
PoE injector
Ceiling mount

Ceiling mount
Mounting bracket

Mounting bracket
Fastening set

Fastening
set
