MikroTik

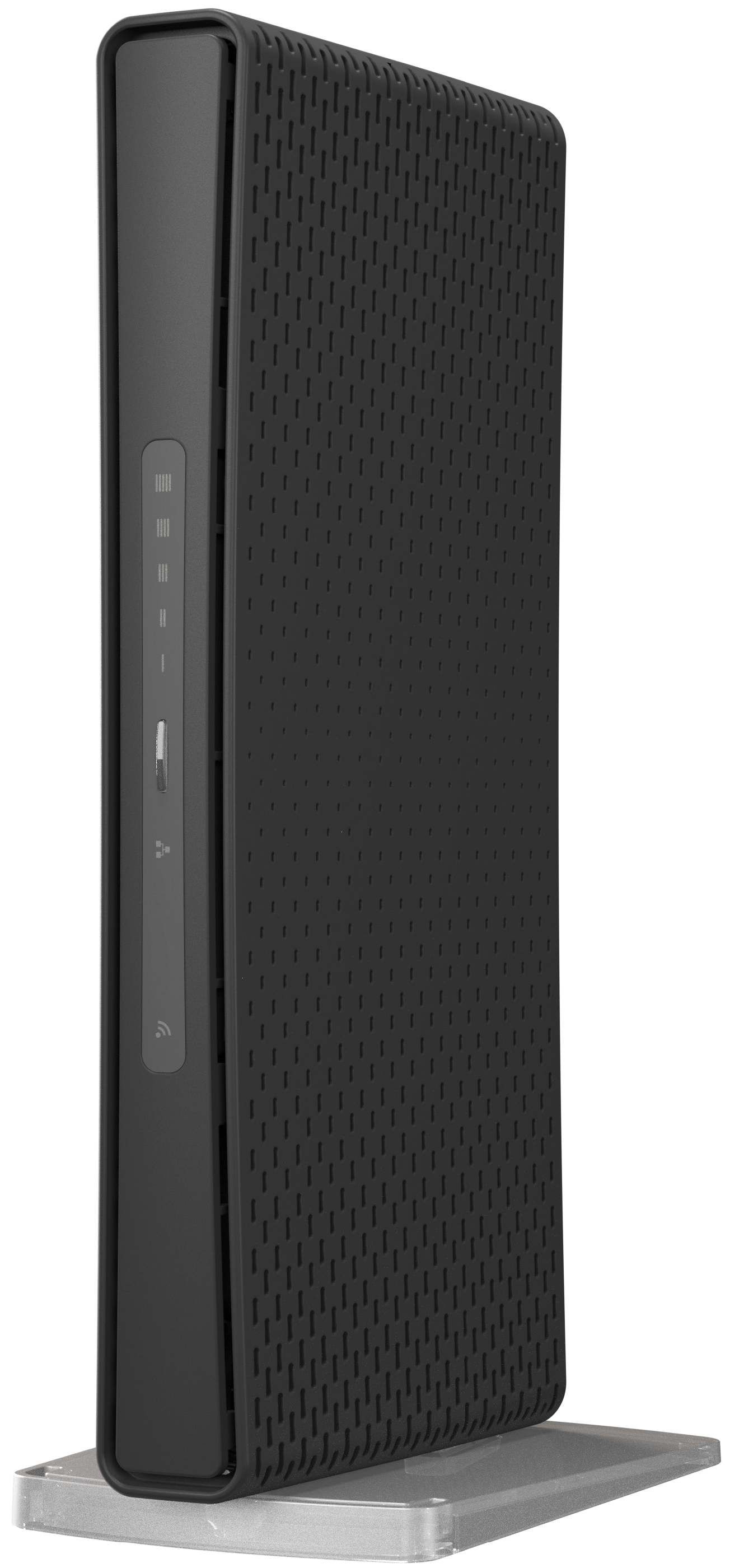

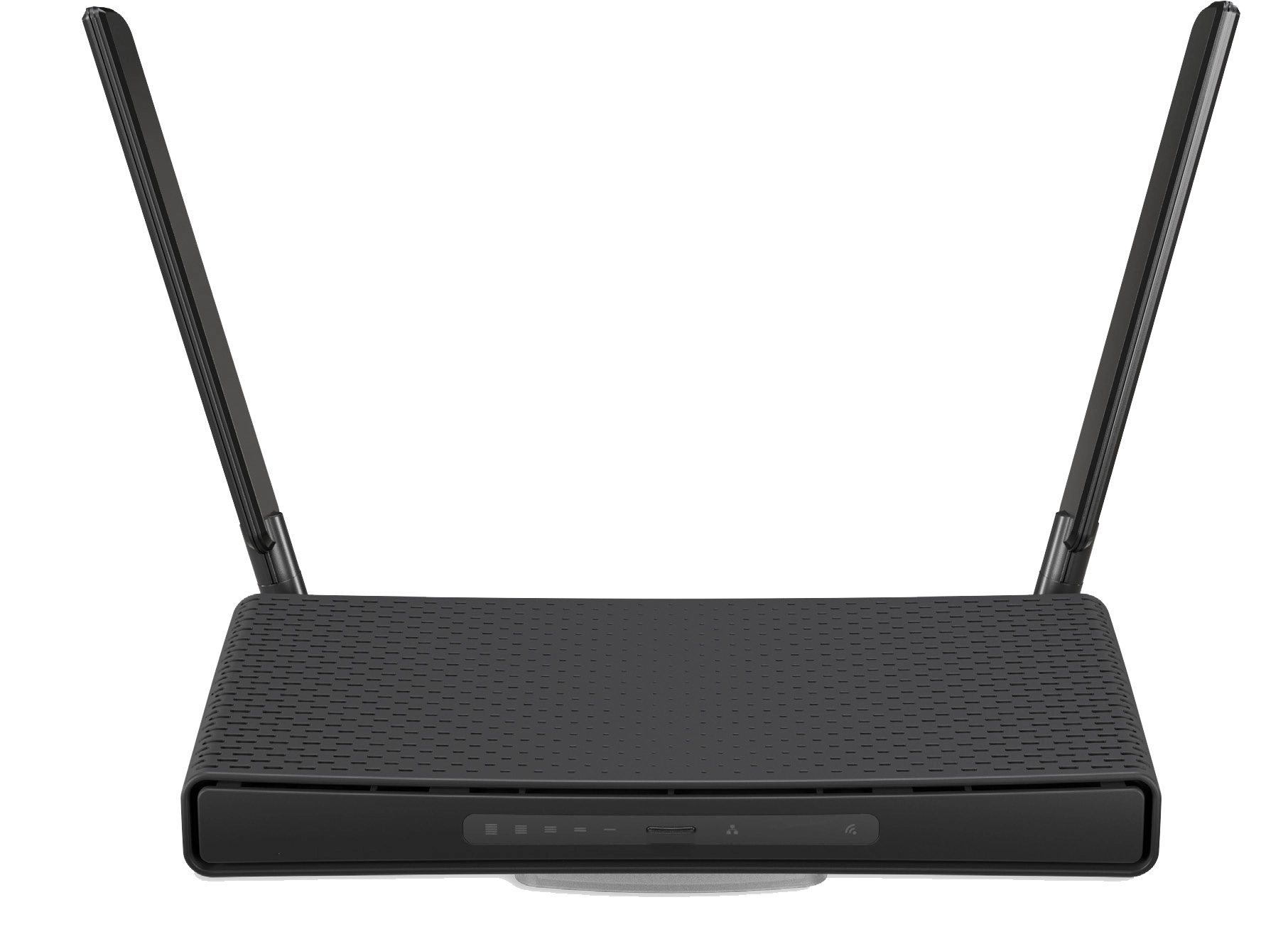

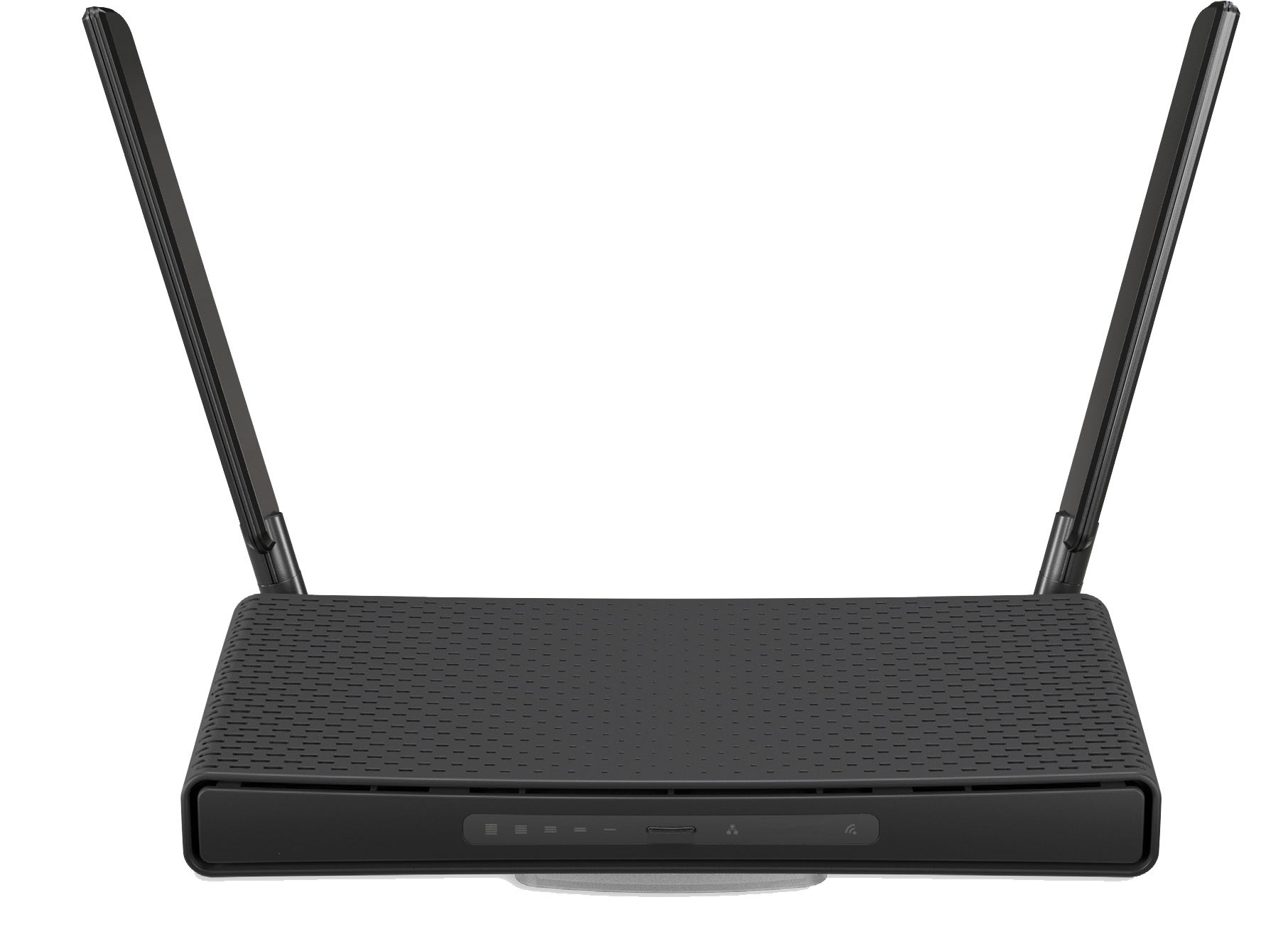

hAP ax³

hAP ax³ with 4-core 1.8 GHz CPU, 1GB RAM, 4 x Gbit LAN, 1 x 2.5 Gbit LAN (supports PoE-in/out), two wireless interfaces (built-in 2.4 GHz 802.11b/g/n/ax dual-chain, built-in 5 GHz 802.11a/n/ac/ax dual-chain), 3.3dBi 2.4GHz external antenna, 5.5dBi 5GHz external antenna, tower/desktop case, USB, PSU, RouterOS L6


SKU

MTIK-C53UiG+5HPaxD2HPaxD

Buy this product from


Ultimate power for your whole home



hAP ax3 is our most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (strong1GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won’t stop your family from comfortable browsing, streaming, gaming, and so on. There’s enough processing power for everyone. And we’ve added a speedy USB 3 port for all your storage purposes or an additional LTE modem.

hAP ax3 is our most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (strong1GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won’t stop your family from comfortable browsing, streaming, gaming, and so on. There’s enough processing power for everyone. And we’ve added a speedy USB 3 port for all your storage purposes or an additional LTE modem.

hAP ax3

AX wireless – as strong as an ox

Depending on your overall setup, our AX product family offers up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Potent external antennas (via built-in RP-SMA female ports) allow reaching gain up to 5.5 dBi, so you can forget about Wi-Fi Boosters and other tricks. Smooth and fast connectivity for your whole apartment – that’s just how hAP ax3 works.



Home network speeds are getting serious. There are 4x Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit port.

Safer in many ways

hAP ax3 can ease your mind on multiple levels simultaneously. European-based production, our famous Northern work ethic, and cooperation with the EU lawmakers ensure full compliance with all the necessary safety policies. Multiple power options (DC Jack & PoE in) result in fewer worries about potential downtime. The latest RouterOS v7 updates and the addition of WPA3 advanced encryption support bring unprecedented software security.

To sum things up - hAP ax3 is among the fastest, safest, and most powerful choices in the home access point world. Wired or wireless. And it comes with the most advanced networking software on the market – RouterOS. Unlike many other vendors, we don’t limit what you can do. There are no paywalls or confusing subscriptions. All our devices share the same limitless operating system. Imagination is the only limitation.

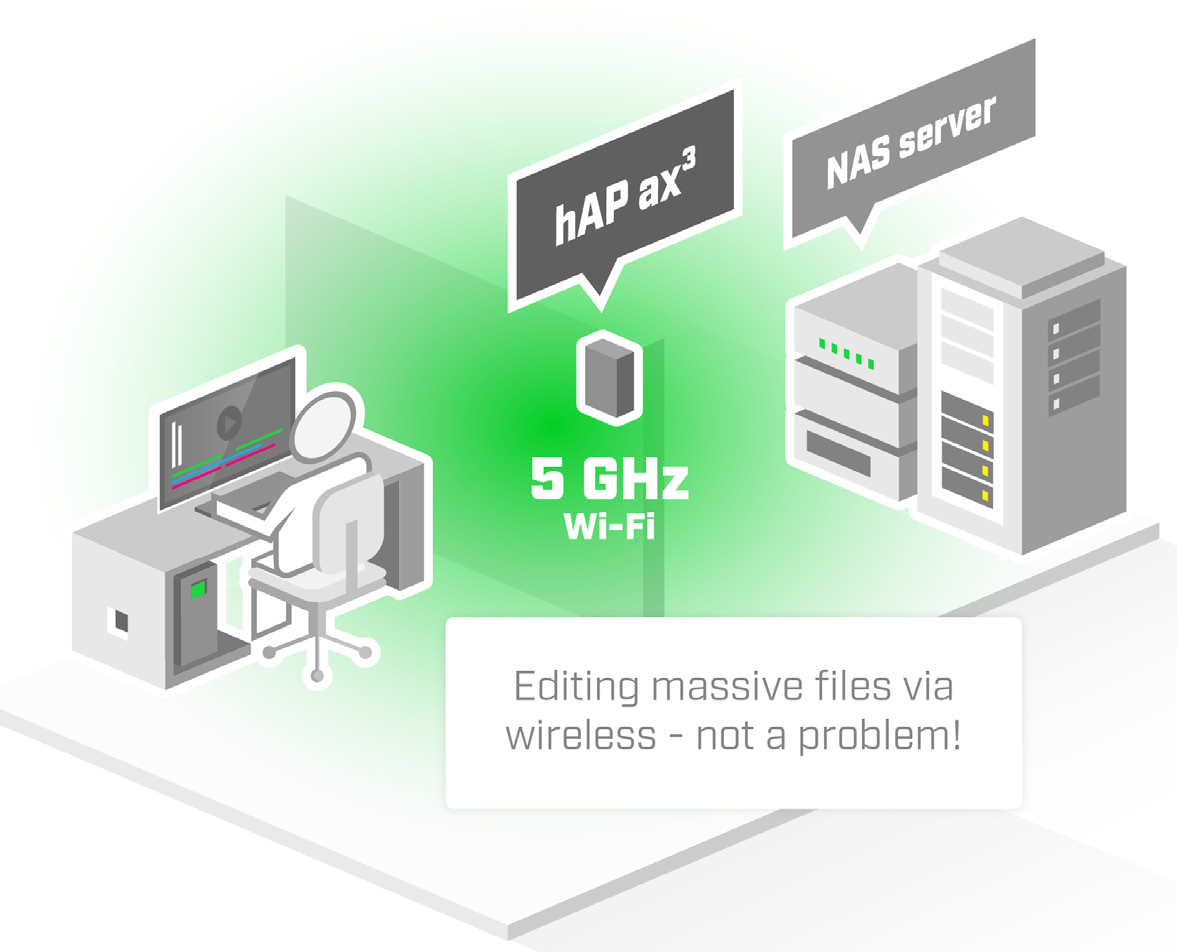

Flow

Some might ask – why do we even need higher wireless speeds? Well, countless use cases have been previously impossible or difficult to pull off. For example, working with large media files over the wireless network – without the need to download and upload everything. Do you really have the time to wait? Grab a hAP ax³ and save more time for the essential things in life!

hAP ax3


FEATURES

POWERFUL 1.8 GHZ ARM CPU
POWERFUL 1.8 GHZ ARM CPU
802.11AX + WAVE2
802.11AX + WAVE2
STRONG DUAL-BAND, DUAL-CHAIN WIRELESS (UP TO 5.5 DBI!)
STRONG DUAL-BAND, DUAL-CHAIN WIRELESS (UP TO 5.5 DBI!)
4X GIGABIT ETHERNET PORTS
4X GIGABIT ETHERNET PORTS
POE-IN & POE-OUT
POE-IN & POE-OUT
WPA3
WPA3
Specifications
Product code C53UiG+5HPaxD2HPaxD
CPU Quad-Core IPQ-6010 1.8 GHz
CPU architecture ARM 64bit
Size of RAM 1 GB
Storage 128 MB, NAND
Number of 1G Ethernet ports 4
Number of 2.5G Ethernet ports 1 (supports PoE-in/out)
USB 1 USB 3 type A
Antenna connector RP-SMA female
Switch chip model IPQ-6010
Wireless interface model QCN-5022 (2.4 GHz), QCN-5052 (5 GHz)
Wireless 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain
Wireless antenna max gain 2.4 GHz (3.3 dBi), 5 GHz (5.5 dBi)
Dimensions 251 x 130 x 39 mm
Operating system RouterOS, License level 6
Operating temperature -20°C to +70°C
Powering
Number of DC inputs 2 (PoE-in, DC jack)
PoE-in input Voltage 18-28 V
DC jack input Voltage 12-28 V
PoE-out Passive PoE Ether1, max out per port output (input < 30 V): 0.625 A
PoE-out total output power 15 W
Power adapter nominal voltage 24 V
Power adapter nominal current 1.5 A
Max power consumption (without attachments) 15 W
Max power consumption 38 W
Wireless specifications
RATE (2.4 GHz) Tx (dBm) Rx (dBm)
1MBit/s 27 -100
11MBit/s 27 -94
6MBit/s 29 -96
54MBit/s 27 -80
MCS0 29 -96
MCS7 26 -75
MCS9 24 -70
MCS11 22 -67
RATE (5 GHz) Tx (dBm) Rx (dBm)
6MBit/s 28 -96
54MBit/s 26 -80
MCS0 28 -96
MCS7 25 -75
MCS9 23 -70
MCS11 20 -67
Included parts

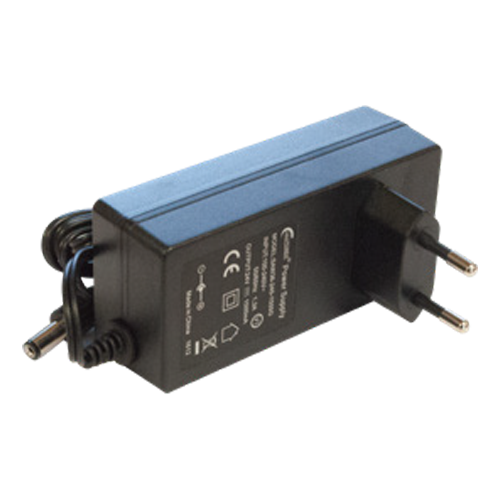

24 V 1.5 A power adapter

24 V 1.5 A
power adapter

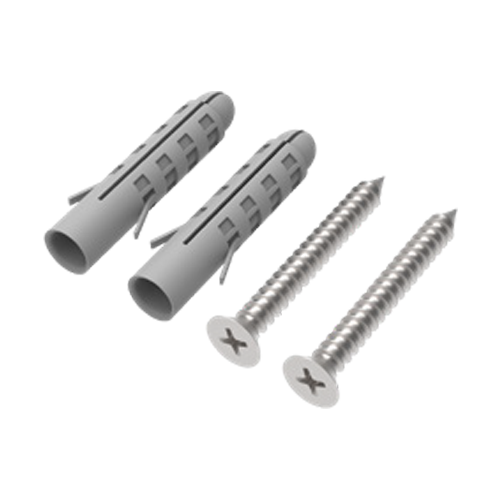

Fastening set

Fastening set

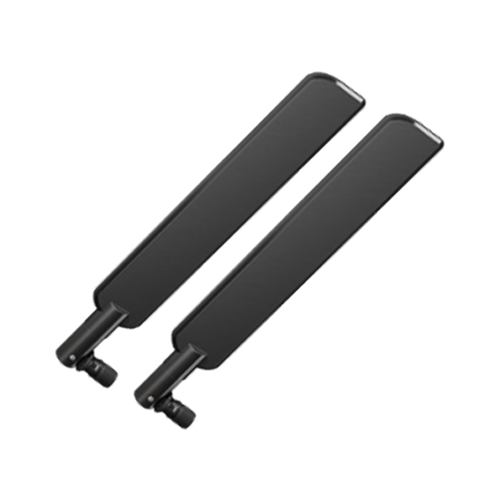

HGO indoor antenna kit

HGO indoor
antenna kit

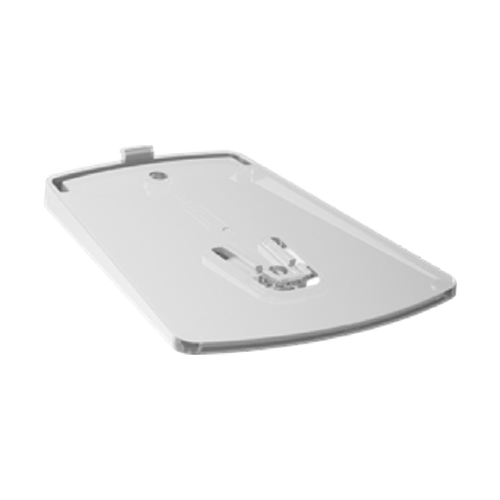

Case base

Case base
