MikroTik
Flex Guide

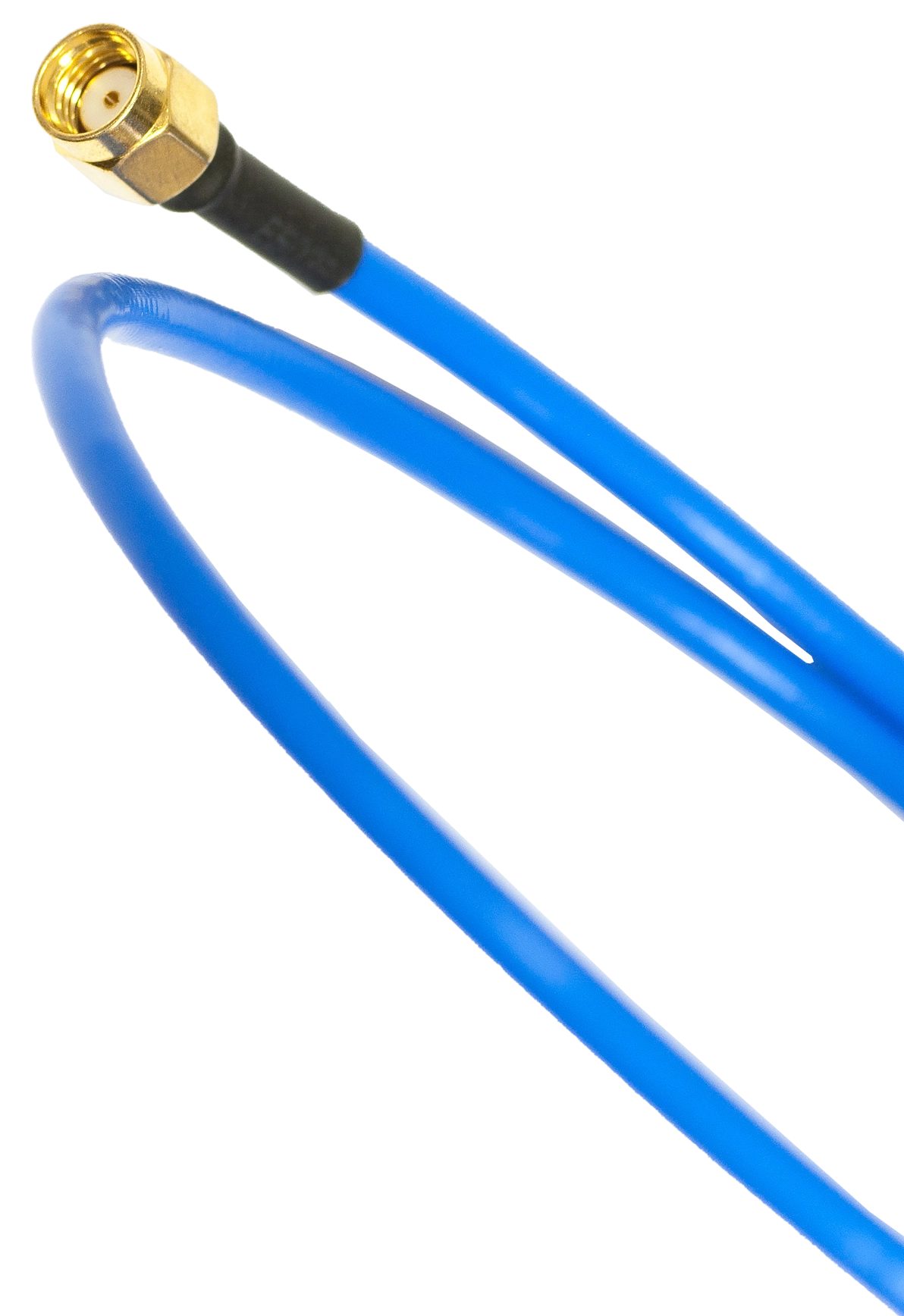

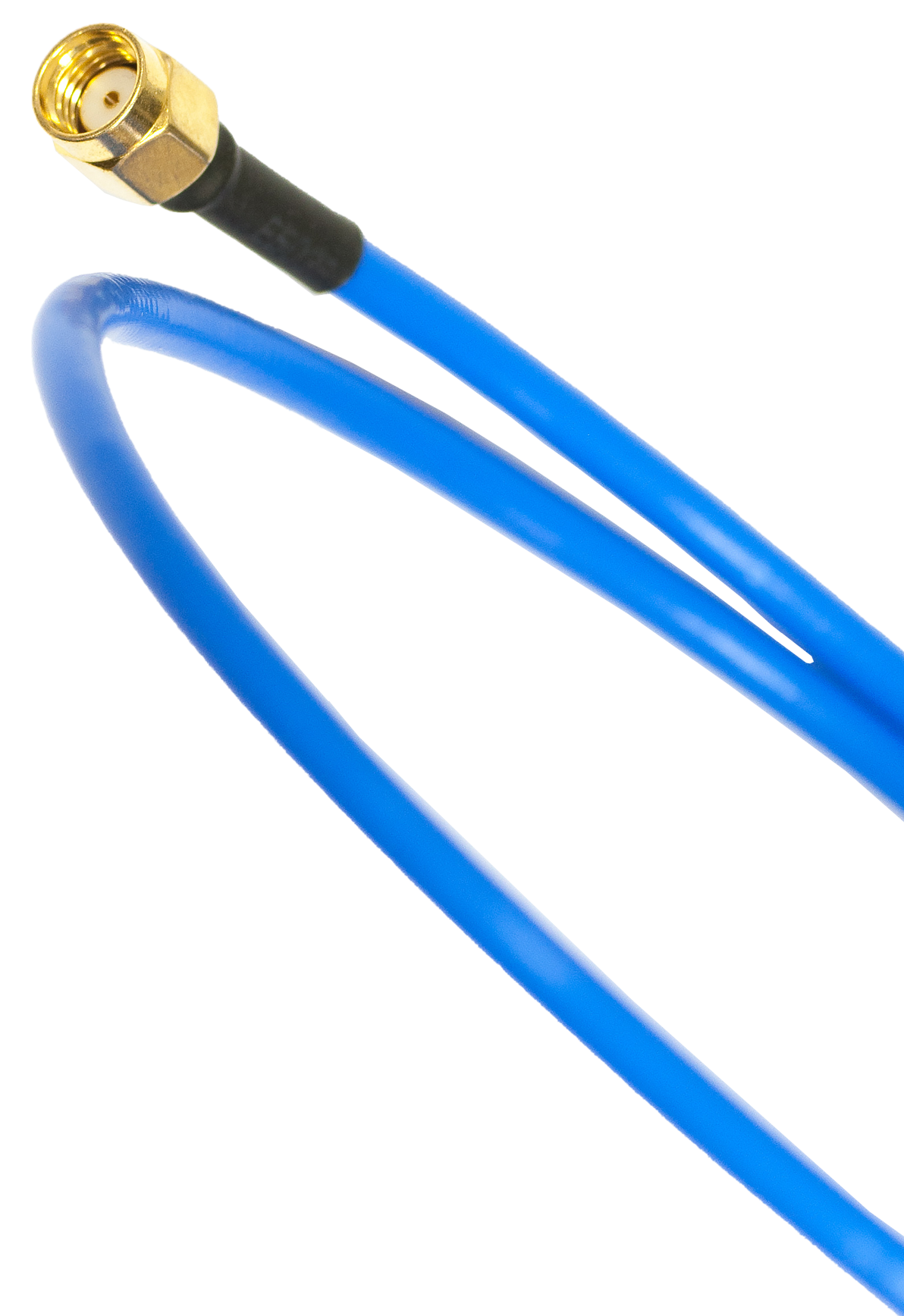

Low loss cable assembly, soldered on both ends, with silver plated copper and less than 0.65dB losses
A super low loss RPSMA cable for superior connection quality, suited for indoor and outdoor use, this cable provides superior matching and loss values.
The name of this cable comes from combining the words “flexible” and “waveguide”, to denote the high end features of this product.
The inner conductor is silver plated copper, and both connectors are soldered, not crimped, for the best possible signal quality. Ideally suited for our BaseBox and other products with RPSMA connectors, and works with most antennas.
Specifications
| Product code | ACRPSMA | |
|---|---|---|
| RPSMA | Soldered on both ends | |
| Inner conductor | Silver plated copper | |
| Frequency | up to 6 GHz | |

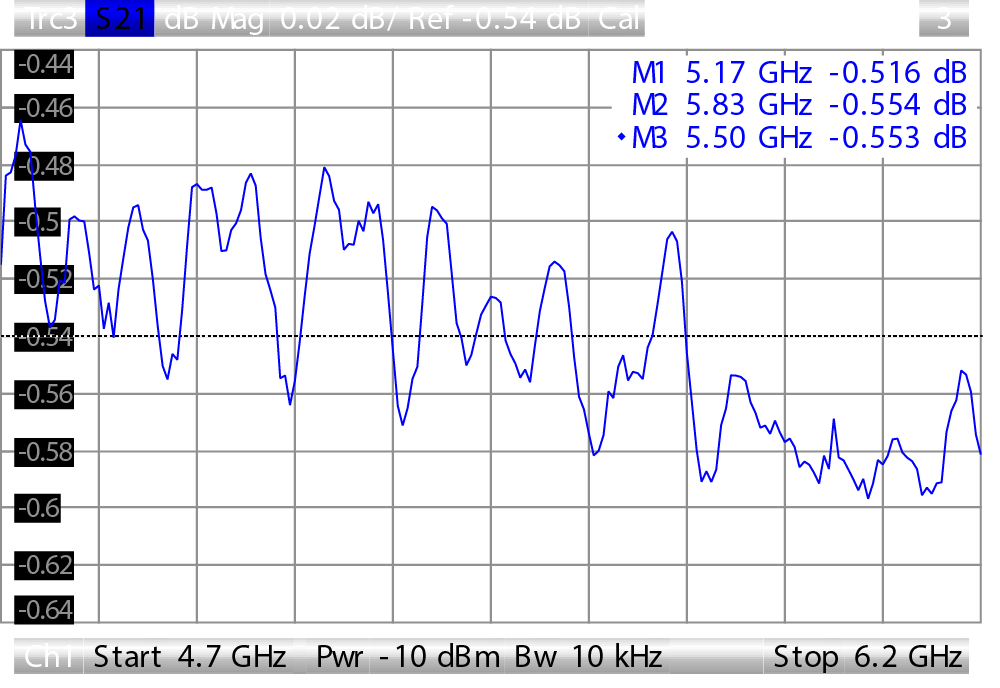

| Total signal loss at 6GHz | 0.59 (Includes connectors. See chart for details) | |

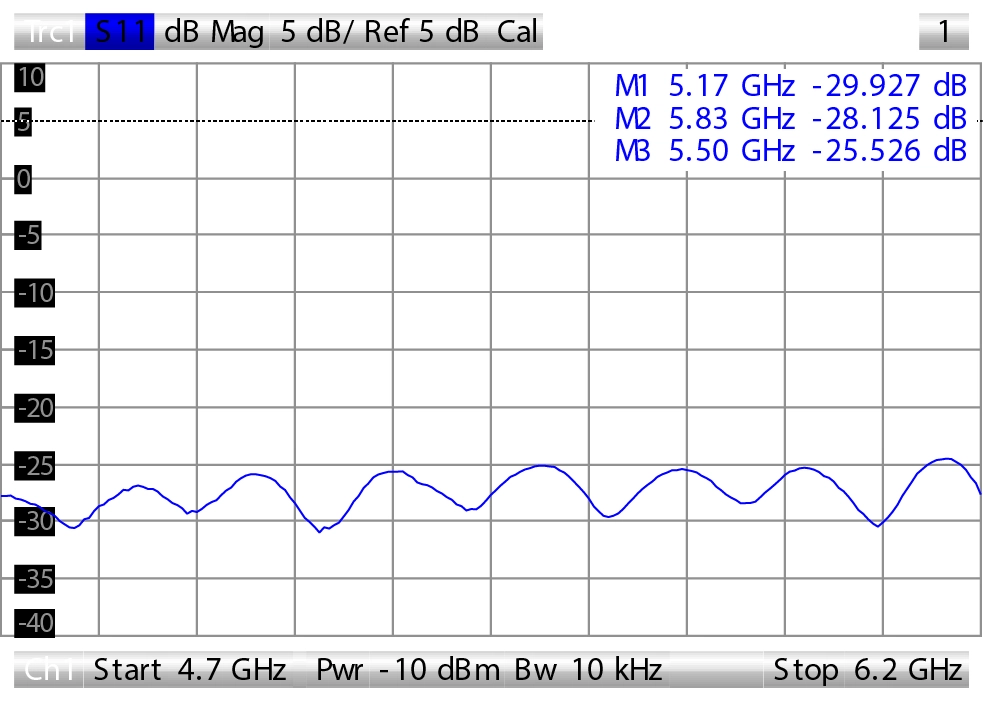

| Matching | Better than -20dB | |
| Suited for | outdoor use | |
| Cable length | 500mm (19.7″) | |
| Outer diameter | 4.2mm (0.2″) | |
| Min. bending radius static | 8mm (0.3″) | |
| Min. bending radius repeated | 40mm (1.6″) | |
| Operating temperature | -55 to 125C | |
