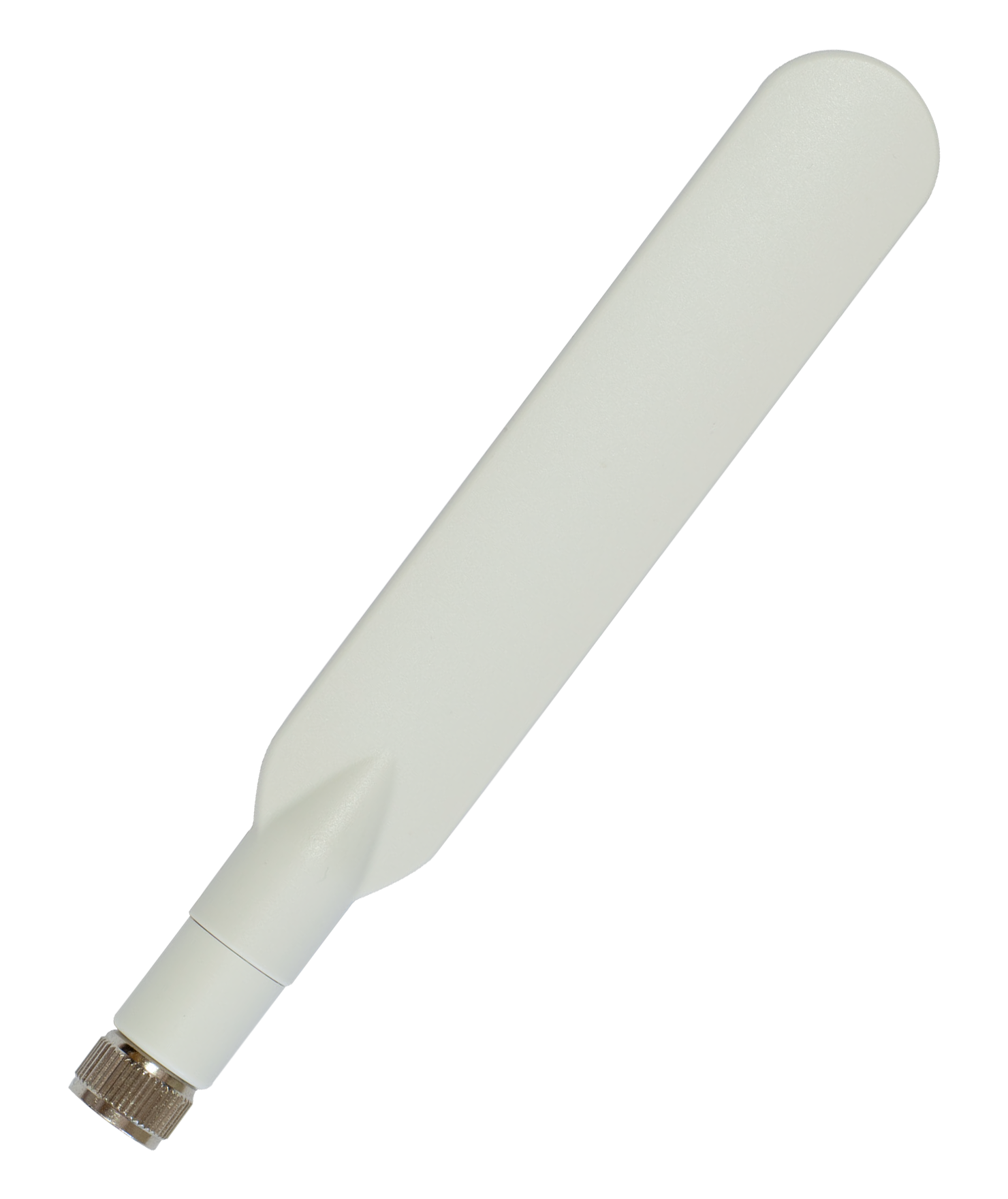

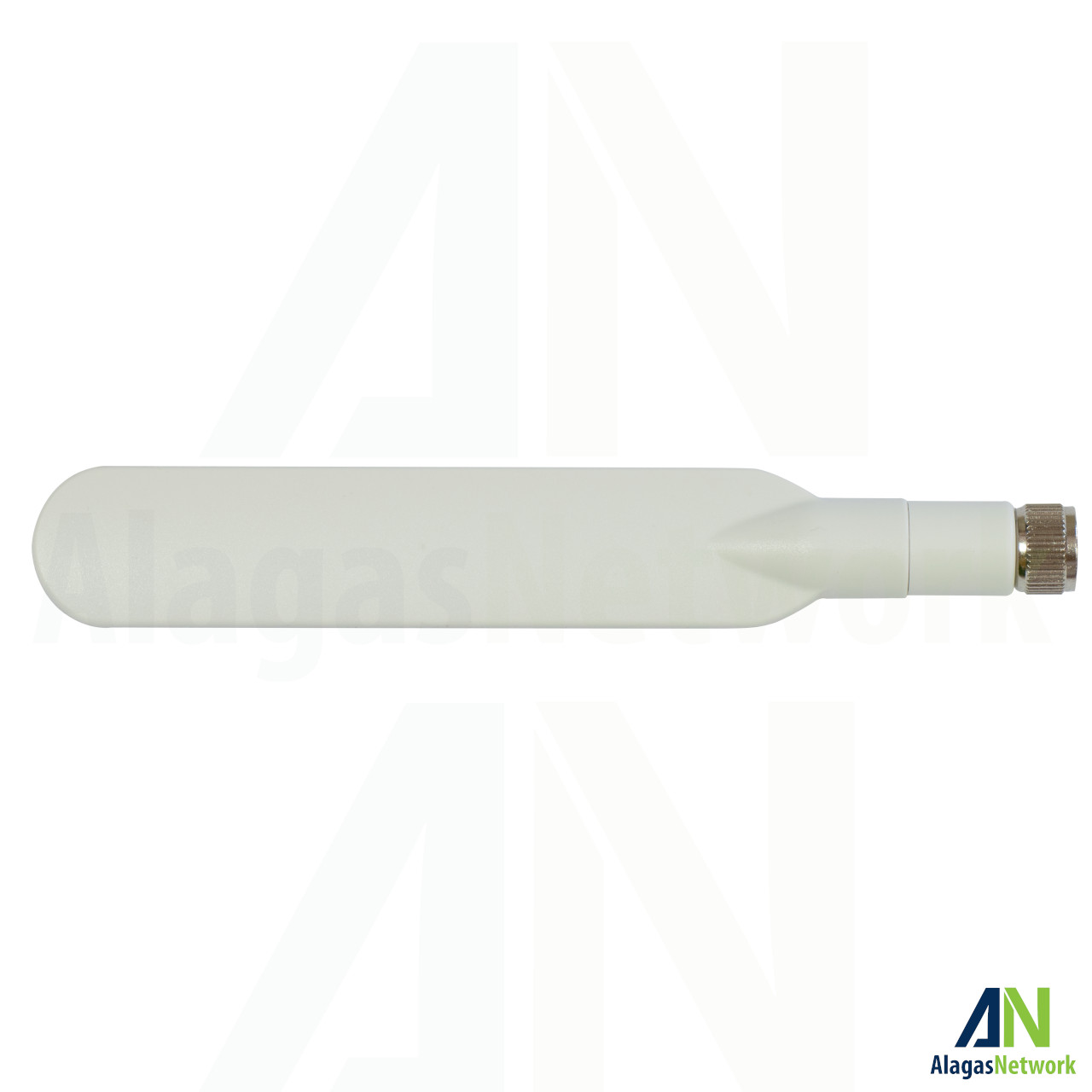

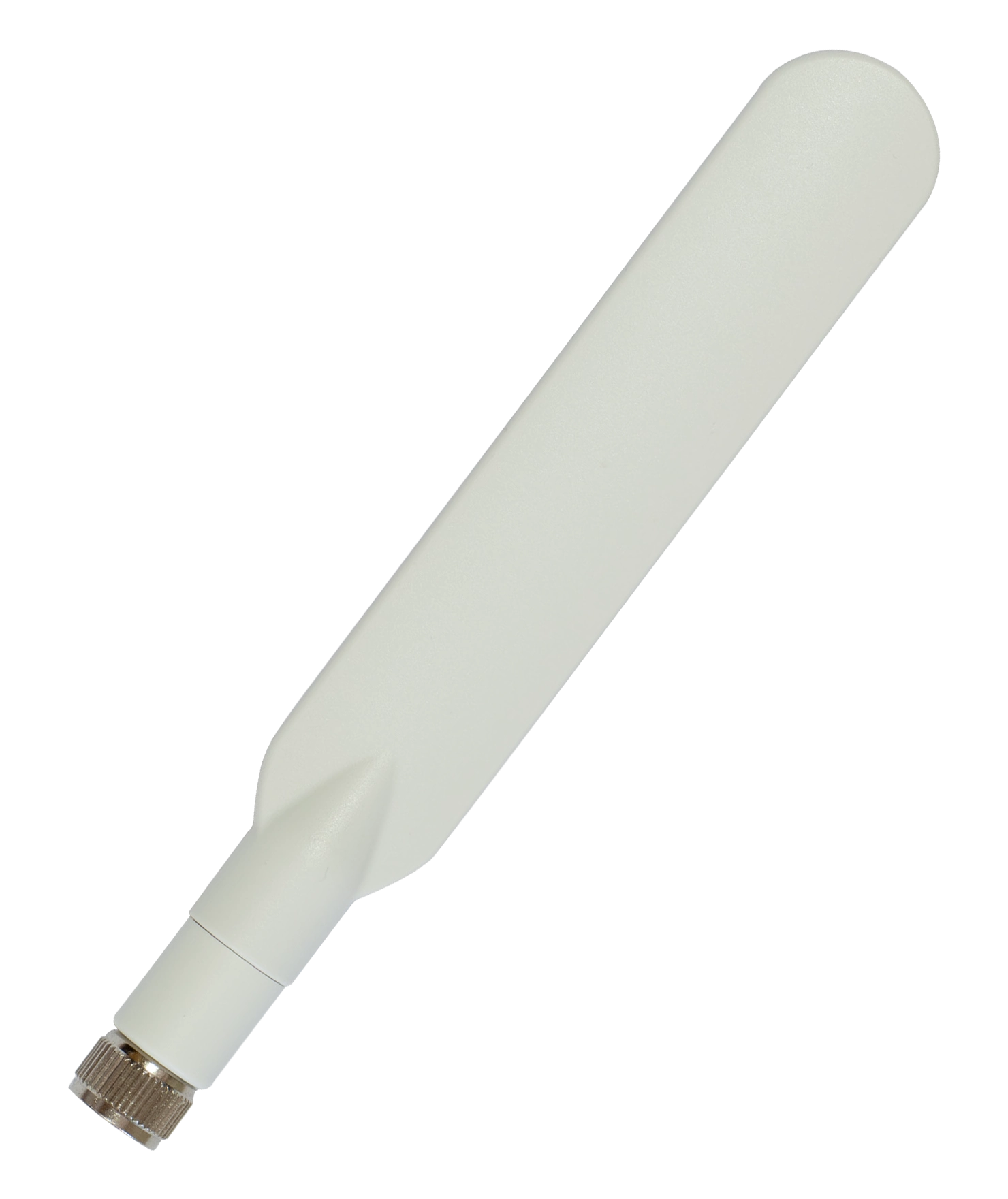

Now we offer 2.4Ghz 5dBi Dipole antennas with RPSMA connectors! Take BaseBox2 and simply attach two of those antennas on connectors of BaseBox2 to have 2x2 MIMO 2.4Ghz AP! By this you can have “2.4Ghz OmniTik”, ideal for Outdoor Campus areas, for example, campings or trailer parks. Antennas are waterproof, so you can use BaseBox without top cover if both antennas are properly attached.
FEATURES
2.4GHz-2.5GHz ISM Band
IEEE 802.11b/g/n Wireless
Directional and multipoint application
Weatherproof and corrosion resistant
Ideal for use with Basebox product series
Mechanical Specifications
| Product Code | ACOMNIRPSMA |
|---|---|
| Dimension | 147mm |
| Weight | 30g |
| Housing | ABS |
| Hinge | ABS |
| Color | White |
| Operating Temperature | -30°C to +85°C |
| Storage Temperature | -30°C to +85°C |
Electrical Specifications Table
| Frequency Range | 2400~2500 MHz |
|---|---|
| V.S.W.R | ≤ 2.0:1 |
| Antenna Type | PCB |
| Gain | 5.0 ± 0.3dBi |
| Polarization | Linear |
| Horizontal Beam-with | 360° |
| Impedance | 50Ω |
| Connector | RP SMA MALE |
Antenna Vertical & Horizontal Pattern
H-plane
E-plane
