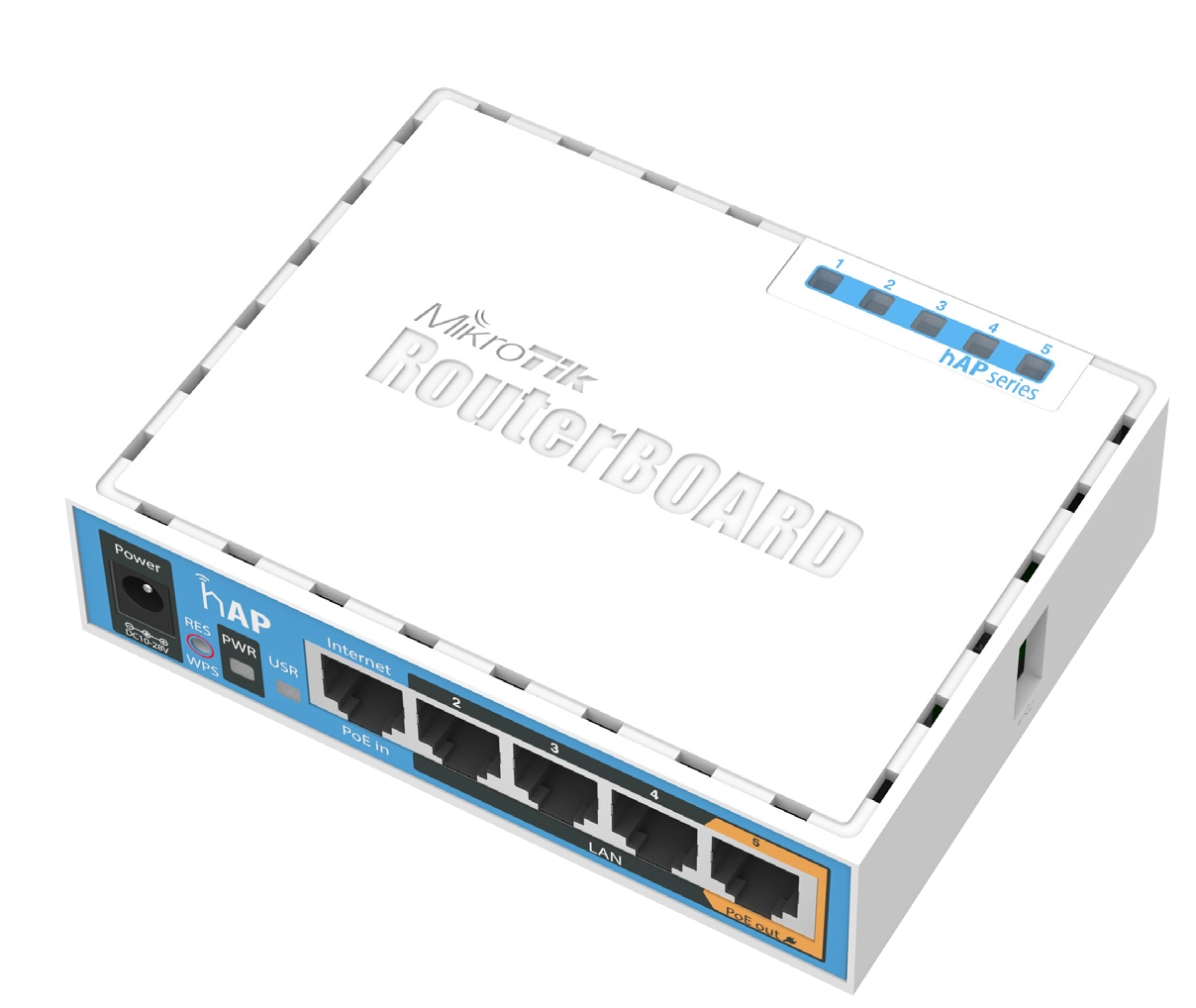

hAP
hAP with 650MHz CPU, 64MB RAM, 5xLAN, built-in 2.4Ghz 802.11b/g/n 2x2 two chain wireless with integrated antennas, USB, RouterOS L4, desktop case, PSU
Category
SKU
MTIK-RB951Ui-2nD
Buy this product from

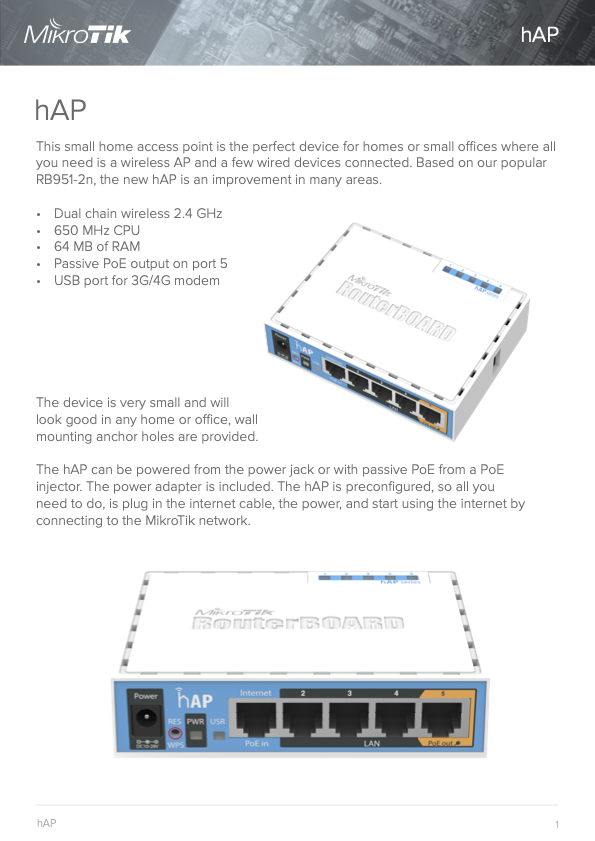

This small home access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas.
The device is very small and will look good in any home or office, wall mounting anchor holes are provided.
The hAP can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included. The hAP is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.
FEATURES
Specifications
| Product code | RB951Ui-2nD |
|---|---|
| CPU nominal frequency | 650 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 5 |
| Wireless | Built-in 2.4 GHz 802.11b/g/n, dual-chain |
| Wireless regulations | Specific frequency range may be limited by country regulations |
| Antenna gain | 1.5 dBi |
| Antenna beam width | 360° |
| Wireless chip model | QCA9531 |
| PoE in | Yes |
| PoE out | Yes (Ether5) |
| Supported input voltage | 6 V - 30 V (Jack or Passive PoE) |
| Extras | USB 2.0 Type A full size port, 1A |
| Dimensions | 113 x 89 x 28mm |
| License level | 4 |
| Operating System | RouterOS |
| CPU | QCA9531 |
| Max Power consumption | 5 W |
Wireless specifications
| RATE | Tx (dBm) | Rx (dBm) |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
Included parts

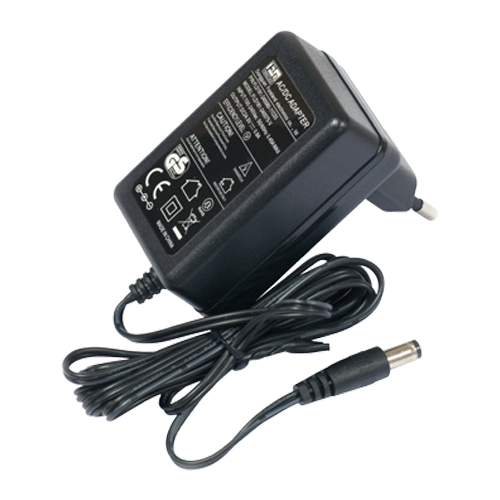

power adapter
