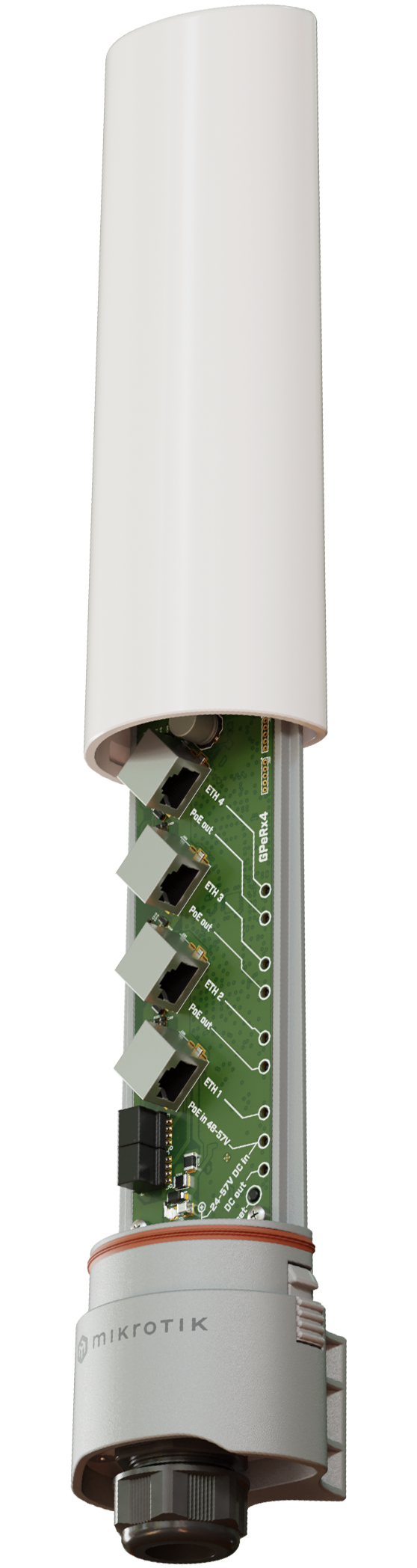

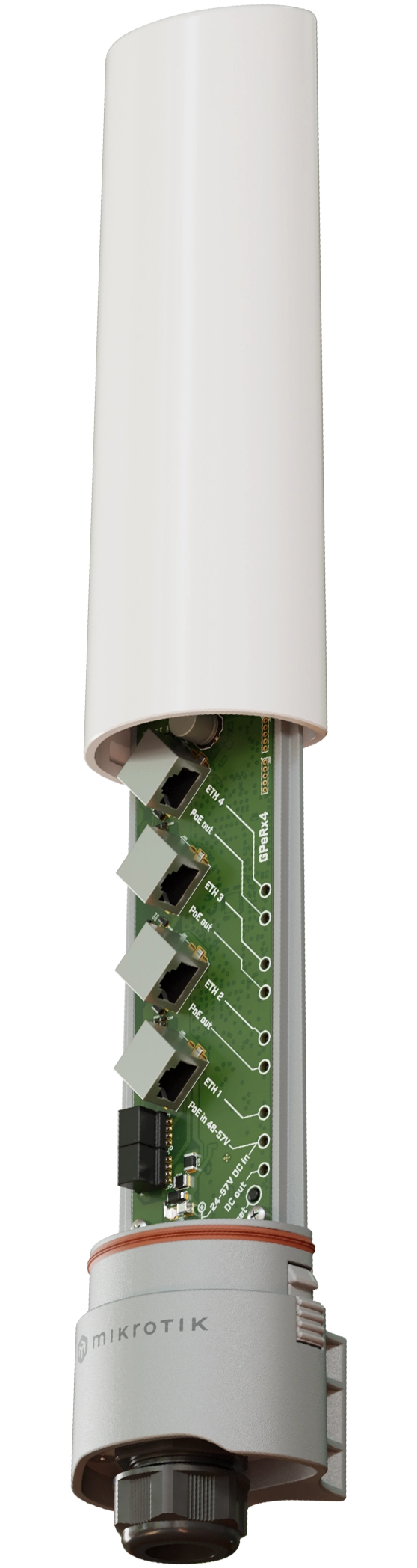

The GPeRx4 is not your average Ethernet extender. This compact, outdoor-ready device is designed to split a single 90W PoE-out port into multiple 30W PoE-out ports, providing cost-effective flexibility for powering cameras, access points, and other devices.
Power and Expand with Ease

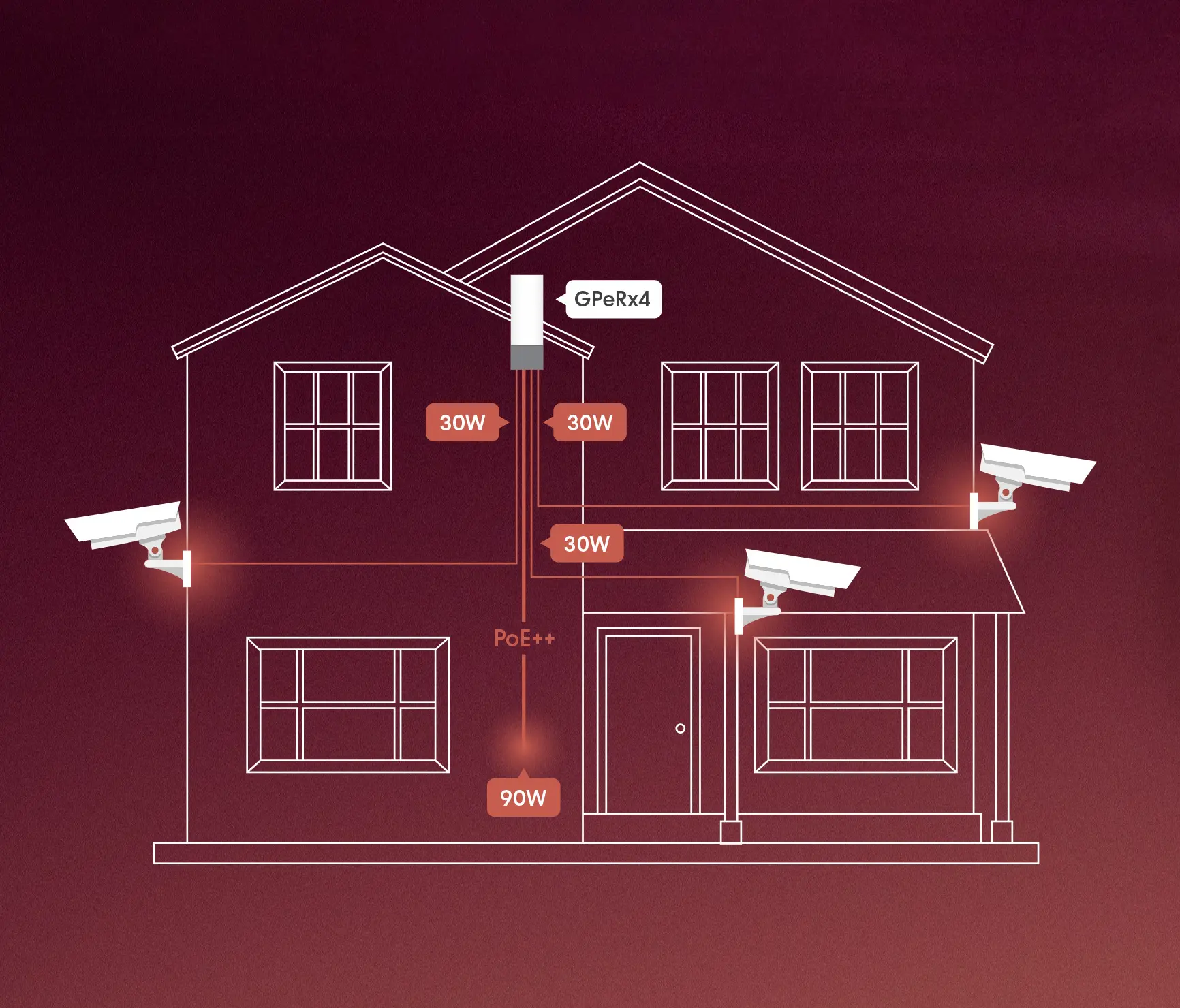

Take advantage of your high-power PoE-out port by splitting it into three standard PoE-out connections, ideal for adding more devices without upgrading your switch.
Built for Rough Conditions
Housed in a robust enclosure, the GPeRx4 can handle tough environments, making it the perfect choice for outdoor setups.
Flexible Power Options
Supports PoE-in and a 2-pin terminal, ensuring versatility for different power sources.
Advanced SwOS Lite Management
Manage your network effortlessly via Web with SwOS Lite, providing:
- Interface monitoring
- VLAN support
- Traffic shaping
- SNMP reporting
- Fault detection for GPEN links
* Please note: The ports are isolated and communicate only with the first port. This device functions as an extender, not a traditional switch
FEATURES
ETHER #2-4 - POE-OUT:
802.3AF/AT
2-PIN TERMINAL
Specifications
| Product code | GPER14i | |
|---|---|---|
| CPU | 200 MHz | |
| Storage | 16 KB, flash | |
| Number of 1G Ethernet ports | 4 | |
| Switch chip model | 88E6341 | |
| Certification | IP68 | |
| Dimensions | 281 x 76 x 70 mm | |
| Operating system | SwOS Lite | |
| Operating temparature | -40°C to +70°C | |
Powering
| Number of DC inputs | 2 (PoE-In, 2-pin terminal) |
|---|---|
| PoE-In input Voltage | 48-57 V |
| 2-pin terminal input Voltage | 24-57 V |
| PoE-In | 802.3 bt |
| PoE-Out | 802.3af/at Ether2-Ether4 |
| Smart PoE | Controller |
| Max out per port output (input < 30 V) | 0.7 A |
| Max out per port output (input > 30 V) | 0.6 A |
| Max total out | 2.0 A |
| DC-out ports | 1 DC1, max out per port output (input > 30 V) 610 mA |
| Max power consumption (without attachments) | 4 W |
| Max power consumption | 115 W |

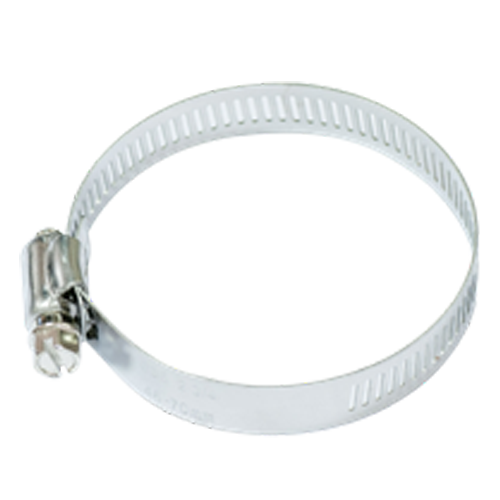

Included parts
